YOU CAN BUILD A VIBRATION-PROOF LAB CHAMBER FOR 400 DOLLARS FROM A KITCHEN CABINET AND HONEY

A flat-pack kitchen cabinet, a cast concrete table, four springs and honey dampers give you a 400-dollar vibration isolation chamber for precision experiments.

by Håvard Vestad and Martin Steinert

FULL CAD BOM FIRMWARE DOCS

WorkshopScience

difficulty
●●●○○
time
a long weekend
license
CC-BY-4.0
repo
repo FINISHED0 stars

WHAT YOU’LL NEED

1
Jump to section

COMPAREE VERDICT

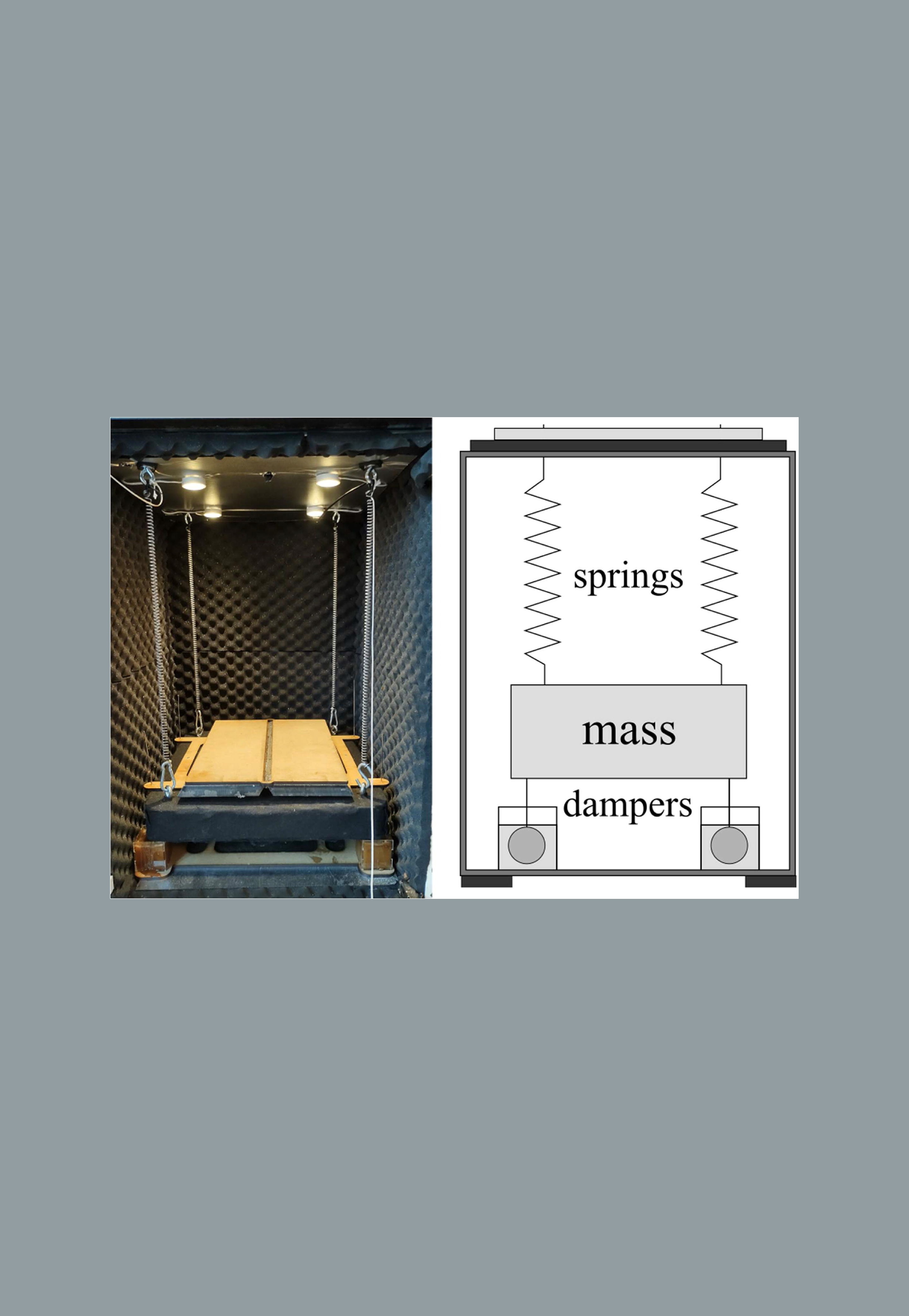

This is a genuinely clever solve for a problem most people never see until it ruins a weekend's data. Anything at micrometre scale - microscopy, interferometry, sensor calibration, precision balances - picks up the building: footsteps and traffic transmitted through the floor, and the authors target the 5 to 20 Hz band associated with traffic. Labs normally buy passive isolation optical tables; this chamber costs about 400 dollars in parts. The shell is an IKEA METOD kitchen cabinet. Inside, a cast concrete table hangs from four springs you wind from spring steel wire, and the dampers are steel balls sitting in honey. The walls are lined with acoustic foam behind a Plexiglas window. The paper shows the measurement rather than claiming a number: the undamped table's power spectral density peaks around 1.15 Hz, and the decay curve of the damped table gives a damping ratio of about 0.12. The build is documented across 42 figures, most of them photographs of the real assembly. The one thing most likely to go wrong is the spring tuning - the design assumes an operating mass of 46.3 kg, so you add mass or adjust springs to match your rig. If you do not already have a precision measurement problem, this is a solution looking for one; if you do, this is the weekend that pays for itself in data you can actually trust.

GOOD TO KNOW

  • —CAD files and full BOM with supplier links are in the OSF repository at doi.org/10.17605/OSF.IO/D6XAB.
  • —The paper itself is the build guide: 42 figures, most of them photographs of the actual assembly.
  • —Licence is CC BY 4.0 — open for commercial use with attribution.
  • —No firmware or electronics involved; this is a passive mechanical system.
  • —The cabinet dimensions and spring calculations are given, but you will need to match the mass plate to your specific measurement rig.
  • —Performance is shown with measured decay curves and power spectral density plots, not just claimed.

Parts to buy

9 items

From our check of the build. Exact quantities and part numbers are in the creator’s BOM.

  • IKEA METOD kitchen cabinet with VEDDINGE door and topFind
  • M8 eyeboltsFind
  • Concrete mix for the tableFind
  • 12 m of spring steel wire for the springsFind
  • MDF for the casting mouldFind
  • PlexiglasFind

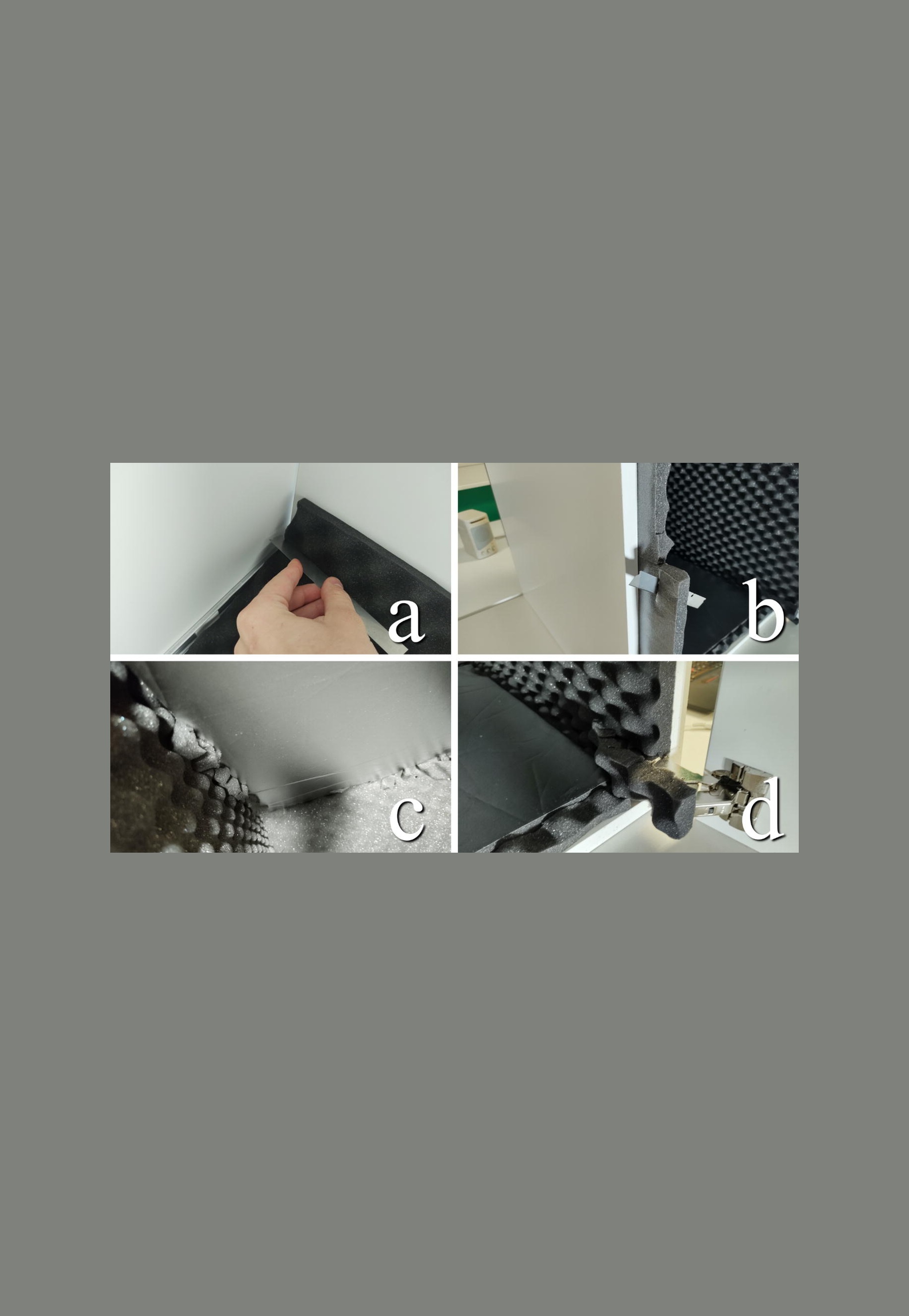

  • Acoustic foamFind

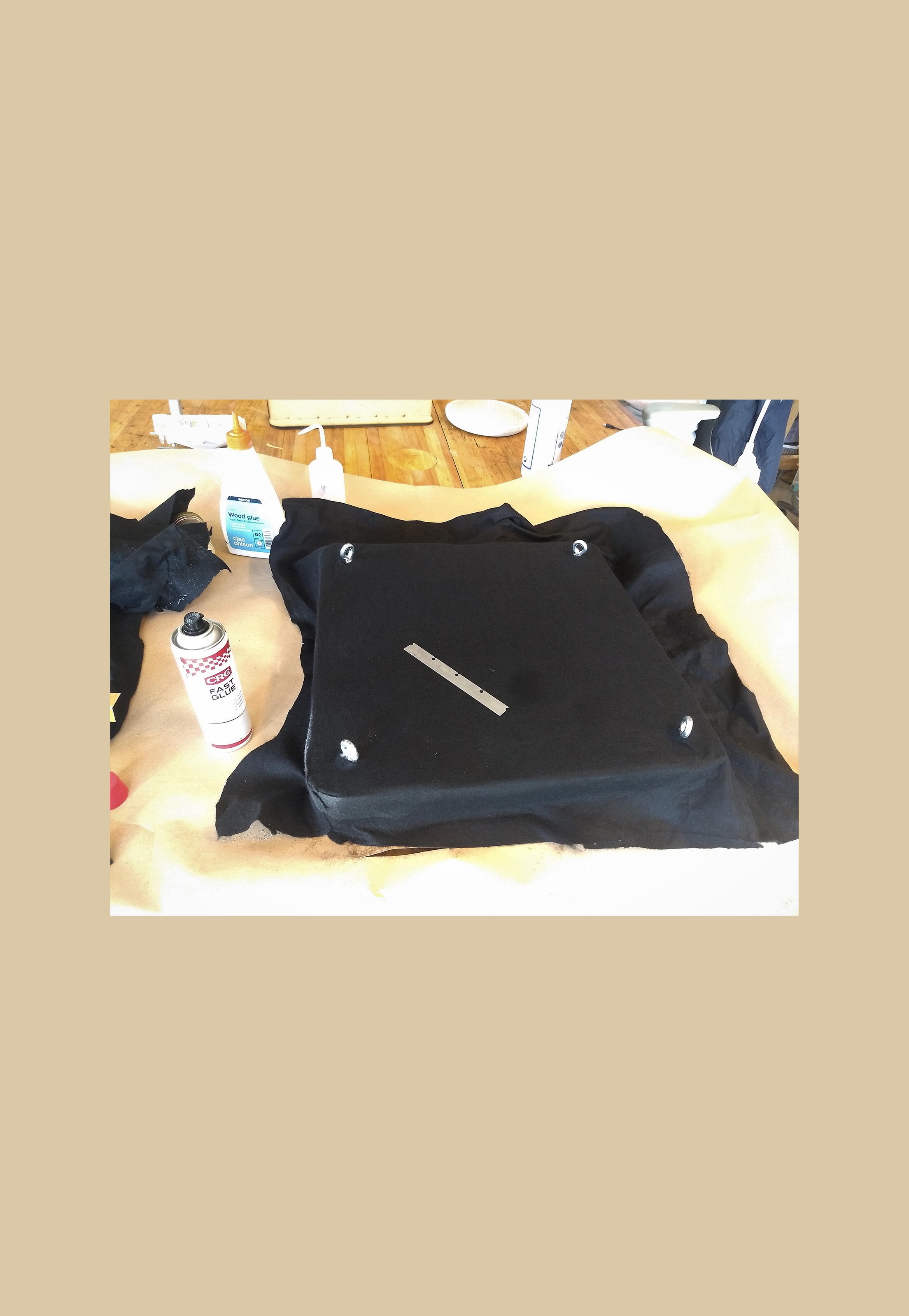

  • FeltFind
  • Rubber gasket sheetFind

BUILDS OF THE WEEK

Five open-source builds worth your weekend, every week.

Checked like this one: what’s really in the repo, what it costs, how hard it is. One email, unsubscribe anytime.

Can I build this?

Printnothing required

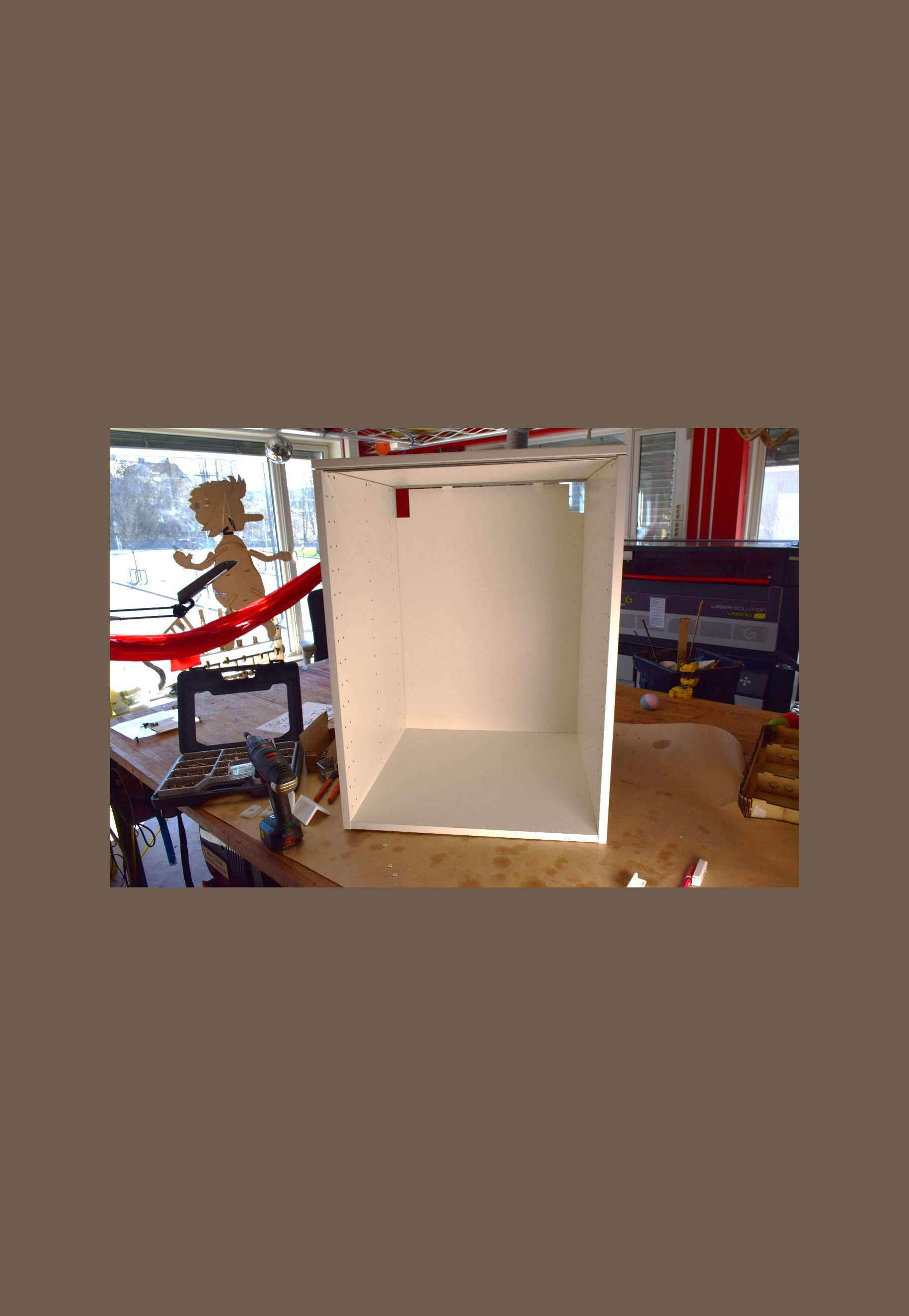

BuyIKEA METOD kitchen cabinet with VEDDINGE door and top, M8 eyebolts, concrete mix for the table, 12 m of spring steel wire for the springs, 15 mm steel bearing spheres and a jar of honey for the dampers, MDF for the casting mould, Plexiglas, acoustic foam, felt, rubber gasket sheet — full BOM (about 397 dollars) in the paper and on OSF

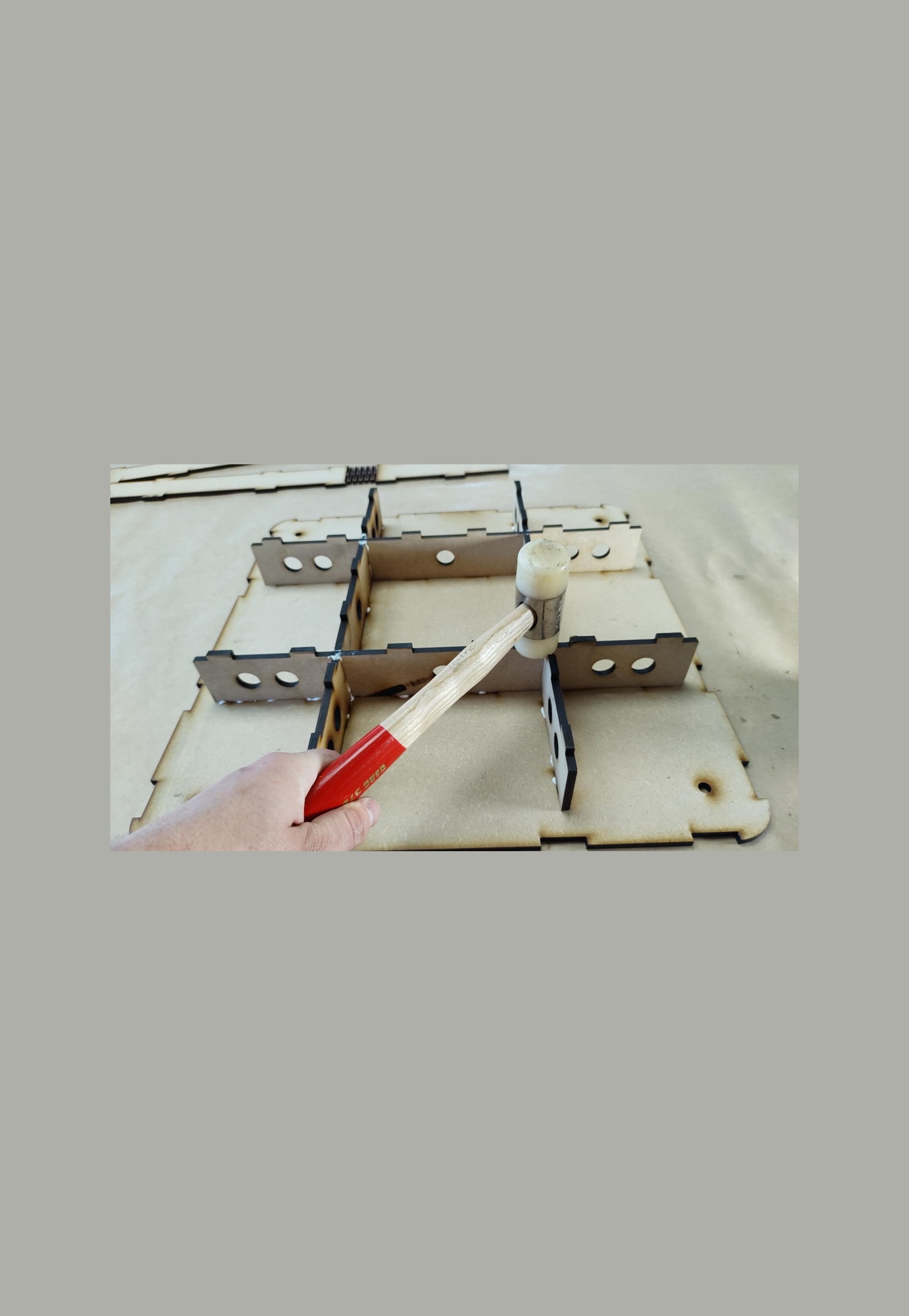

Toolslaser cutter (or a makerspace) for the MDF mould, bucket and trowel for casting the concrete table, drill, pliers for winding springs from steel wire, screwdriver, basic hand tools
Skillsbasic workshop skills: laser-cutting the DXF parts (or making them by hand), casting concrete, winding springs from steel wire, and following the spring-stiffness calculation to match your rig's mass
TimeA long weekend plus curing time: assembling the cabinet and cutting the MDF and acrylic parts is an afternoon, casting the concrete table needs time to cure, and winding and tuning the springs is where the iteration happens
CostModerate, about 400 dollars (396.70 in the paper's BOM): the IKEA cabinet, door and fittings and the acoustic foam are the biggest items; the spring wire is about 40 dollars and the concrete under 10.
SafetyStandard workshop precautions for the drill and laser cutter. Wet concrete is caustic - wear gloves and eye protection when mixing. The concrete table plus added mass weighs about 46 kg in operation; get help lifting it. No electrical or mains hazards.
