HOW PULSED BLUE LEDS LET A CAMERA SEE INSIDE A WELDING ARC

A welding arc is too bright to film through — this commercial system out-shines it with kilowatt pulses of blue LED light instead of filtering it down.

by Ben Krasnow

FULL CAD BOM FIRMWARE DOCS

WorkshopScience

difficulty
●●●●●
time
a video to watch
license
license not specified
repo
repo 0 stars

WHAT YOU’LL NEED

Videos
1
Jump to section

COMPAREE VERDICT

This is not a build project — it is a principle worth understanding. In the video, Ben Krasnow of Applied Science demonstrates Kron Technologies' Helios welding visualization system, a commercial camera-and-lighting product the manufacturer sent him. The trick is to out-shine the arc rather than filter it down: an array of narrowband 450 nm royal-blue LEDs is pulsed to about a kilowatt only while the camera shutter is open, and a notch filter on the camera passes just that wavelength, so the broadband arc contributes very little. The result is footage where you see the molten pool, droplets and the bead in remarkable detail, and he also films burning magnesium and underwater laser cutting. What is not here: a parts list, wiring, firmware, filter specifications or a build guide, because the hardware is a commercial product. If you want to reproduce the idea yourself, the hard parts are high-current LED pulsing with cooling, a matching narrowband filter, and shutter-synchronised timing — and you would be designing all of that from scratch.

GOOD TO KNOW

  • —This is a filmed method, not a repository or design file.
  • —The video demonstrates Kron Technologies' commercial Helios system and explains the principle.
  • —No parts list, PCB files, firmware, CAD or wiring diagrams exist.
  • —A DIY version would need high-power pulsed LEDs with cooling, shutter synchronisation, a matching narrowband filter and a high-speed camera — all sourced and designed yourself.
  • —No licence — this is a demonstration of a technique, not distributed design files.
  • —The video shows a commercial welding-visualization system (Kron Technologies Helios), not a homemade reproduction.

Parts to buy

5 items

From our check of the build. Exact quantities and part numbers are in the creator’s BOM.

  • For a DIY attempt: a high-speed camera with external syncFind
  • High-power narrowband LED array with cooling and a pulse driverFind
  • Matching narrowband filterFind
  • Mounting hardwareFind
  • WelderFind

BUILDS OF THE WEEK

Five open-source builds worth your weekend, every week.

Checked like this one: what’s really in the repo, what it costs, how hard it is. One email, unsubscribe anytime.

Can I build this?

Printnothing required
BuyFor the demonstrated result: the commercial Helios system with a high-speed camera. For a DIY attempt: a high-speed camera with external sync, a high-power narrowband LED array with cooling and a pulse driver, a matching narrowband filter, mounting hardware, and a welder.
Toolsbench tools, soldering station, optical rail or rigid mount, multimeter, oscilloscope for sync verification
Skillshigh-speed imaging, camera/flash synchronisation, optical filter selection, electronics prototyping, welding — this is not a first project
Timeseveral weekends to source parts, build sync circuit, mount optics and verify timing
Cost$$$ — a high-speed camera and kilowatt-class pulsed lighting; the video gives no price.
SafetyWelding arc produces UV and intense visible light — normal welding PPE required. The pulsed LED array is intense enough to heat a sheet of black plastic in front of it, so do not look into it. Do not look at the arc or the lighting without proper protection.

Build at your own risk. Projects involve tools, electronics and sometimes mains voltage — follow the creator’s safety notes.

Videos

Creator’s build video

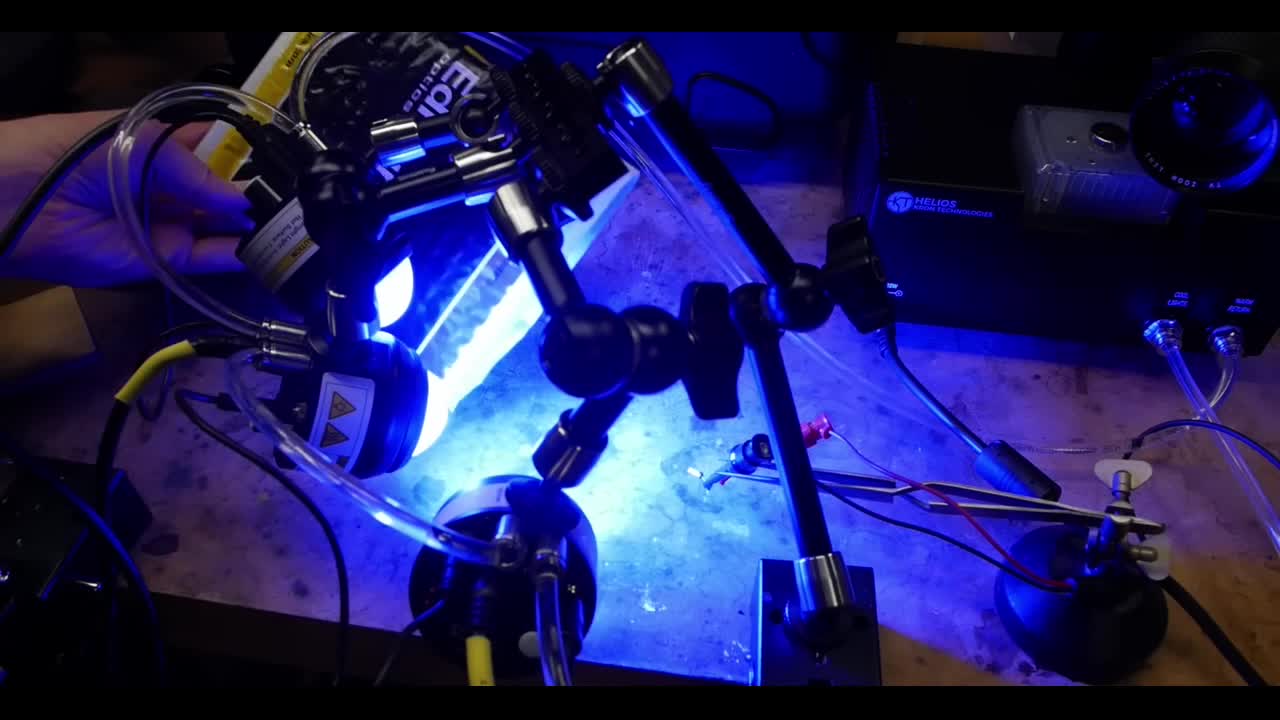

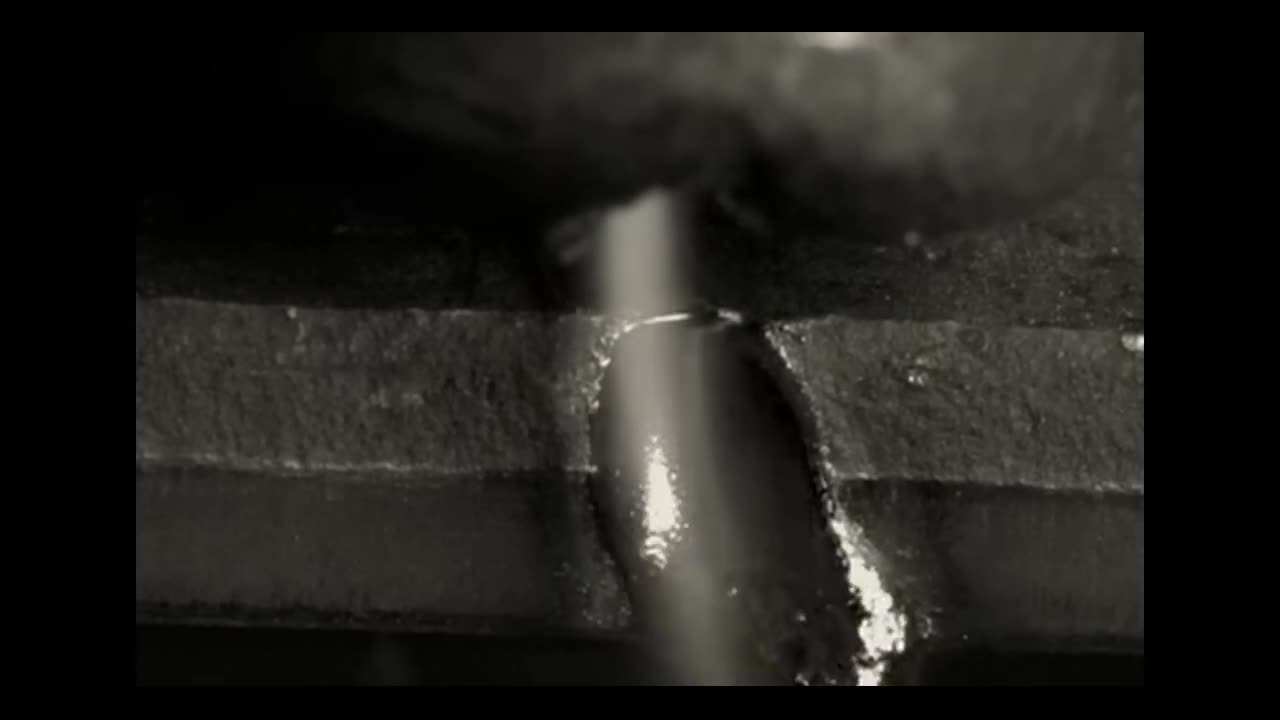

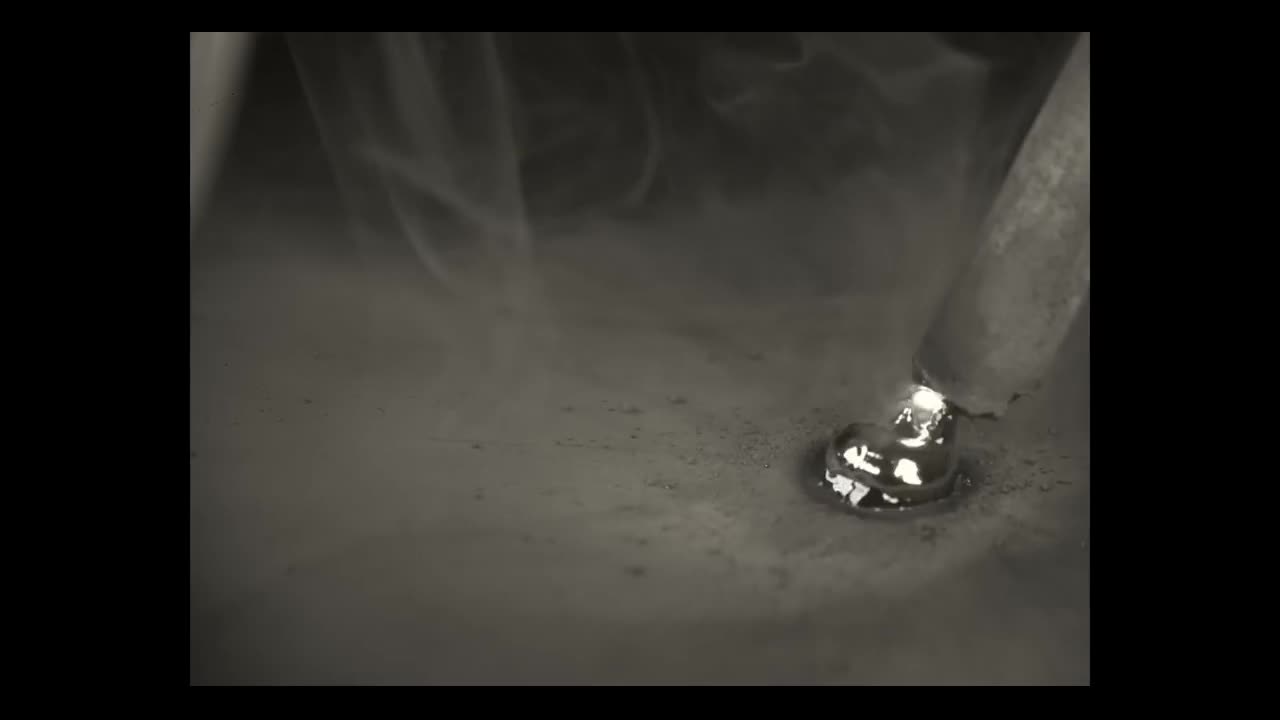

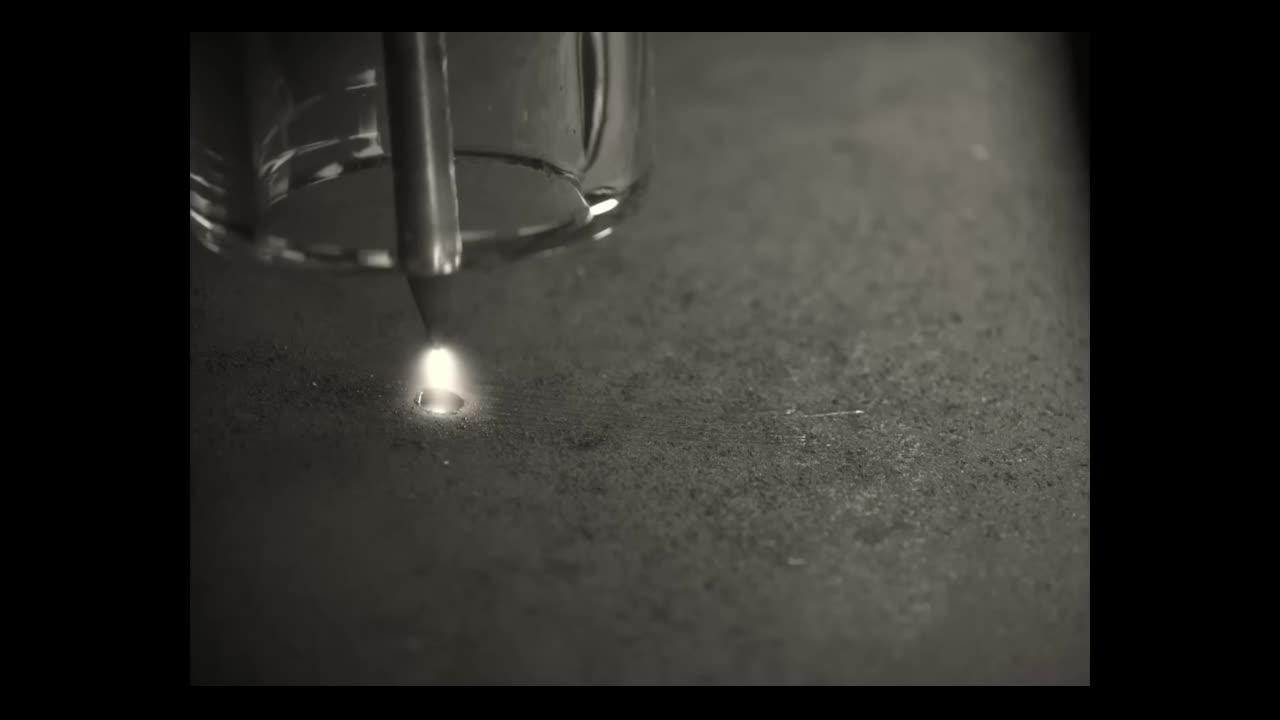

Applied Science demonstrating Kron Technologies' Helios welding visualization system: how it works, then footage of welding, burning magnesium and underwater laser cutting.
