ADAPTIVE OPTICS ON A BENCH: BUILDING A DEFORMABLE MIRROR WHOSE SURFACE YOU CAN BEND WITH MAGNETS AND COILS
A hobby optics maker built a 25-actuator deformable mirror on his bench, the kind of part big telescopes use to fight atmospheric blur, and measured every bend with an interferometer.
by Huygens Optics
ScienceWorkshop
- difficulty
- ●●●●●
- time
- several weekends
- license
- license not specified
- repo
- repo 0 stars
●●●●● · several weekends · license not specified · 0 stars · repo
WHAT YOU’LL NEED
Jump to section
COMPAREE VERDICT

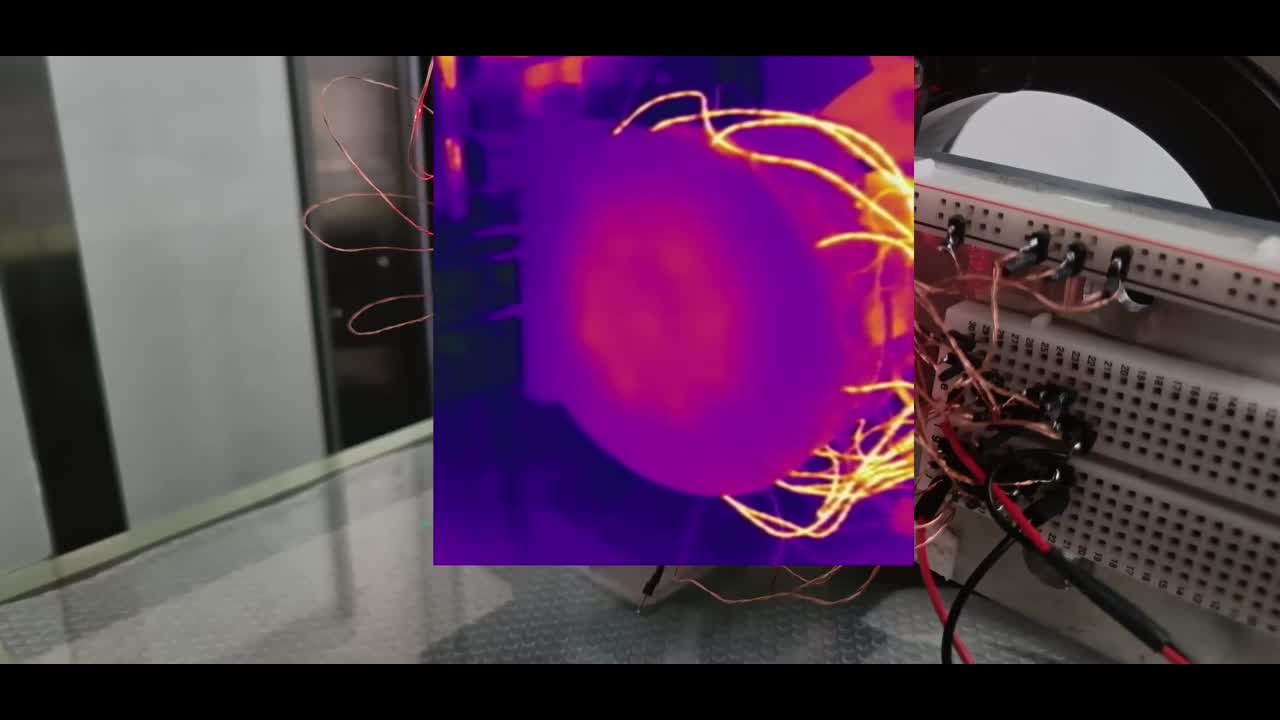

This is what adaptive optics looks like when you build it yourself: 25 small magnets glued under a thin face sheet, each sitting on a silicone pillar inside a hand-wound coil, so current pushes or pulls the surface locally. Huygens Optics starts with a 2.3 mm quartz photomask, finds it too stiff to show the effect of single actuators, and switches to a 1.3 mm sheet of ZERO near-zero-expansion glass-ceramic that Nippon Electric Glass sent him. He works through the magneto-motive force and power dissipation on camera (0.22 mm wire, 1 ohm coils, 6 mm magnets, about 0.1 N per actuator at 1 amp) and measures every deformation interferometrically. It is a proof of principle, not a working adaptive optics system, and he says so himself, including a design flaw he found: heat from the coils expands the silicone pillars and bumps the face sheet. There is no repository, no drawings and no parts list, so you are working from what you see on screen. This is for someone who wants to understand how a deformable mirror works and has, or wants to build, an interferometer to see what it is doing.
IN THE REPO
GOOD TO KNOW
- —No repository, no files to download, no parts list.
- —This is a documented build — a 31-minute filmed walkthrough with the physics worked through on camera.

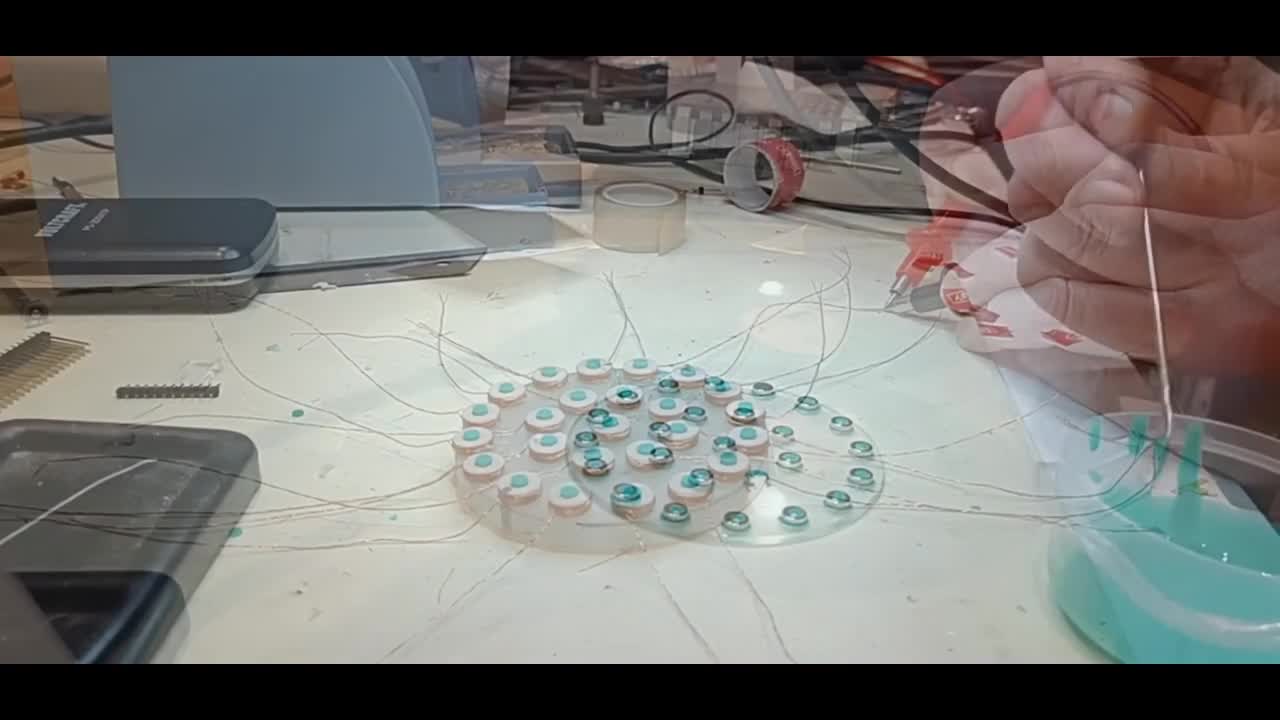

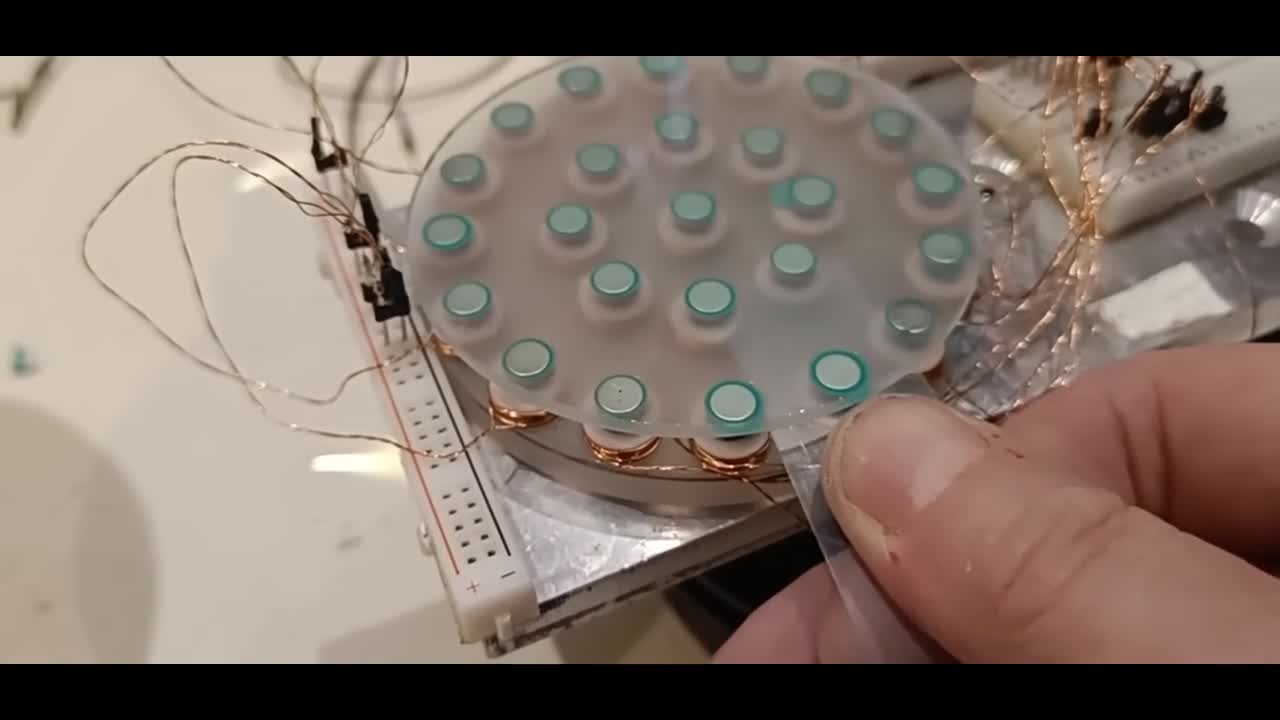

- —You will need to source thin near-zero-expansion glass-ceramic yourself (the creator's ZERO sheets were sent by Nippon Electric Glass), bond 25 magnets precisely, wind coils, and measure the result interferometrically.
