HE BOUGHT 768 CELLS OUT OF RETIRED ELECTRIC BUSES FOR 52 CENTS EACH AND BUILT A MACHINE TO JUDGE THEM
768 thirteen-year-old bus cells for 52 cents each instead of 40,000 dollars — if you can tell the good ones from the junk.
EnergyWorkshop
- difficulty
- ●●●●○
- time
- a weekend-plus
- license
- MIT
- repo
- repo ACTIVE42 stars
●●●●○ · a weekend-plus · MIT · 42 stars · repo ACTIVE
WHAT YOU’LL NEED
- Electronic parts — full list with part numbers in the repo BOM
- Dev board / microcontroller — runs the project firmware
Partner
COMPAREE VERDICT
This is not a beginner battery project. It is a multi-board custom PCB build with live firmware integration, a separate server, and a UART meter you wire in yourself. The boards work — over 500 cells have been through them — but the context is someone who already bought 768 retired bus cells and has to sort them. If you are starting from zero, you do not need five boards; you need one, and you need to understand that testing a used lithium cell is slower and less predictable than the two-hour batch time suggests, because some cells fail partway through and some take longer to charge than others. The internal resistance measurement is what separates this from a basic capacity tester, but it adds a separate eBay meter and a UART integration that you have to get right. The real trap is not the build — it is buying retired cells without knowing what you are doing. A thirteen-year-old A123 cell that sat in a bus is not the same as a shelf-worn consumer cell; some will be perfect, some will be junk, and the only way to know is to test every single one. The tester does that job well, but it does not make bad cells good. If you already have a pile of unknown cells and need to sort them methodically, this is exactly the tool. If you are hoping to build a cheap battery pack by buying retired cells, understand that the sorting is the hard part, not the bargain.
IN THE REPO
NOT IN THE REPO
- —MIT licence, no restrictions on commercial use.
- —Full schematic, KiCad PCB files, and BOM are in the repository.
- —Firmware for the ESP32-S2 and the Python server (Goblin HQ) both present.
- —No enclosure files — the boards sit on a bench or mount however you want.
- —The YR1035 resistance meter is a specific eBay model wired over UART; alternatives exist but you will rewrite the parser.
- —First version failed on an I2C initialisation bug, not the hardware — the commit history shows the fix.
Can I build this?
Build at your own risk. Projects involve tools, electronics and sometimes mains voltage — follow the creator’s safety notes.
Partner · KickstarterHeyGears G1: 10M+ colors and transparent parts in one print, plus UV printing on flat objects. Figures, parts and labels — no painting.
Videos

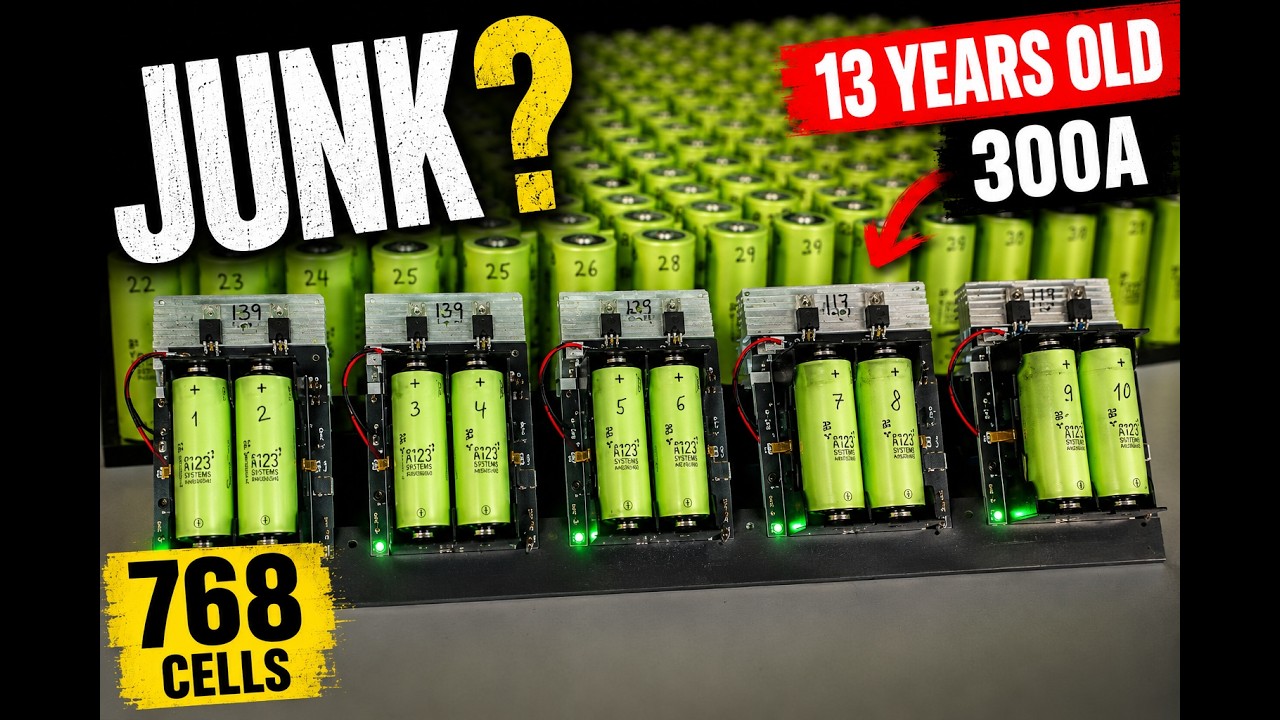

Cell Goblin testing bus cells (build by Within Tolerance)
No official video in the payload; the reel footage is from Within Tolerance but no YouTube channel or walkthrough was provided.
Gallery
Start here
Navigation into the creator’s own docs — we don’t rewrite the guide, we route you to the source.

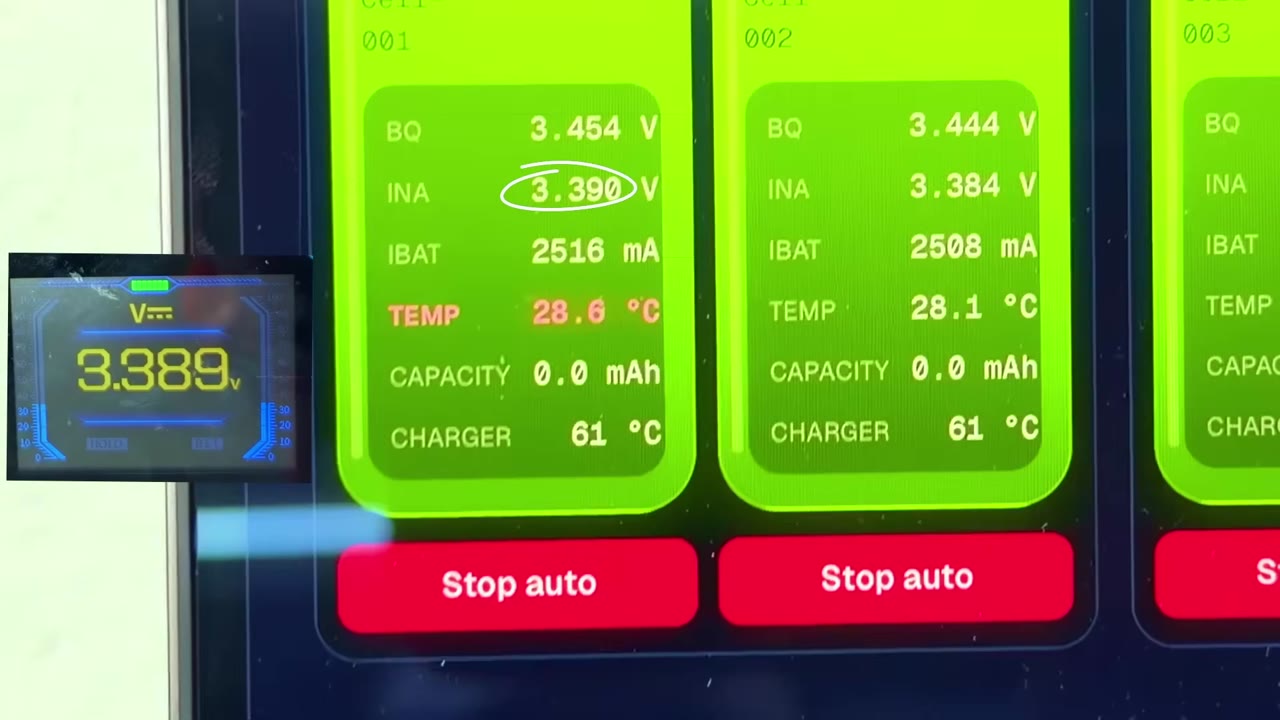

- 1.Read the README and the schematic (The BOM, KiCad files, and firmware are all in the root. Start with the schematic to understand the charge/discharge loop and the INA219 current sensing.)
- 2.Order one PCB first, not five(Gerbers are in the repo. Build and test one board with the firmware and server before committing to the full set.)
- 3.Set up the Python server (Goblin HQ)(The server keeps all boards in sync and logs every curve to a database. It is required, not optional.)
- 4.Wire in the YR1035 meter over UART(This is the internal resistance measurement. The firmware expects a specific eBay model; if you substitute another meter you will rewrite the parser.)
- 5.Run the full routine on a known-good cell(Charge, discharge, top-up, and resistance check. Verify the curve in the database before testing unknown cells.)
Resources
Documentation, files and community threads for this build — we link straight to the original sources and never rehost the creator’s files.
Partner · KickstarterCORE POWER BANK S: 0.2" thin, 2.8 oz, 5000 mAh with 22.5W fast charging. Semi-solid battery, carbon fiber, IPX7 waterproof.
KNOWN ISSUES
- The project is built around A123 26650 LiFePO4 cells from retired buses. If you are testing a different cell chemistry or format, the charge/discharge parameters and voltage limits will be wrong.
- The YR1035 resistance meter is a specific eBay model. It is not a calibrated lab instrument, and the UART protocol is not standardised — substituting a different meter means rewriting the firmware integration.
- Two hours per batch is the best case for ten healthy cells. A cell that fails partway through or charges slowly will stall the whole bay unless you manually intervene.
- The first version failed on an I2C bus initialisation bug. The fix is in the commit history, but it is a reminder that firmware integration is where this build gets hard, not the PCB.
- Retired cells are a gamble. Some will be fine, some will be junk, and the tester does not make bad cells good — it just tells you which ones to throw away. If you are hoping for 768 perfect cells at 52 cents each, the reality is you will reject a percentage and the cost per good cell goes up.
- Heat sinks and fans are required. The discharge MOSFETs get hot, and the build includes temperature monitoring with Alexa warnings, but you still have to mount the heat sinks properly and ensure airflow.
Can I use this for 18650 cells or other formats?
The PCB is built for the holder and current levels of A123 26650 cells. You can adapt it, but you will need to change the charge/discharge parameters, the voltage limits, and possibly the current sensing range on the INA219. This is not a drop-in swap.
Do I need five boards, or can I start with one?
Start with one. The server supports multiple boards, but building all five at once before you have tested the firmware and the routine is a waste of money.
What does the YR1035 resistance meter actually measure?
It injects a known current and measures the voltage drop to calculate internal resistance. For an A123 cell rated around 70 amps continuous when new, resistance tells you whether the cell can still deliver that current or whether it has degraded.
How long does it actually take to test 768 cells?
Two hours per batch of ten is the best case. If you run five boards simultaneously that is 50 cells every two hours, so 768 cells is about 31 hours of machine time — spread over multiple days because you have to swap cells between batches.
What is the reject rate on retired bus cells?
The project does not give a percentage, and it will vary wildly depending on how the cells were stored and how hard the bus worked them. Some batches will be mostly good, some will be mostly junk. The tester tells you which is which, but it does not change the odds.
Community builds
No community builds yet — be the first, we feature the best ones.
Discussion1
FROM THE COMPAREE TEAM
Over 500 cells tested, two hours per batch of ten, and the whole routine logged to a database with full charge and discharge curves. If you were sorting a pile of retired cells, what would you change about the test routine?
Within Tolerance

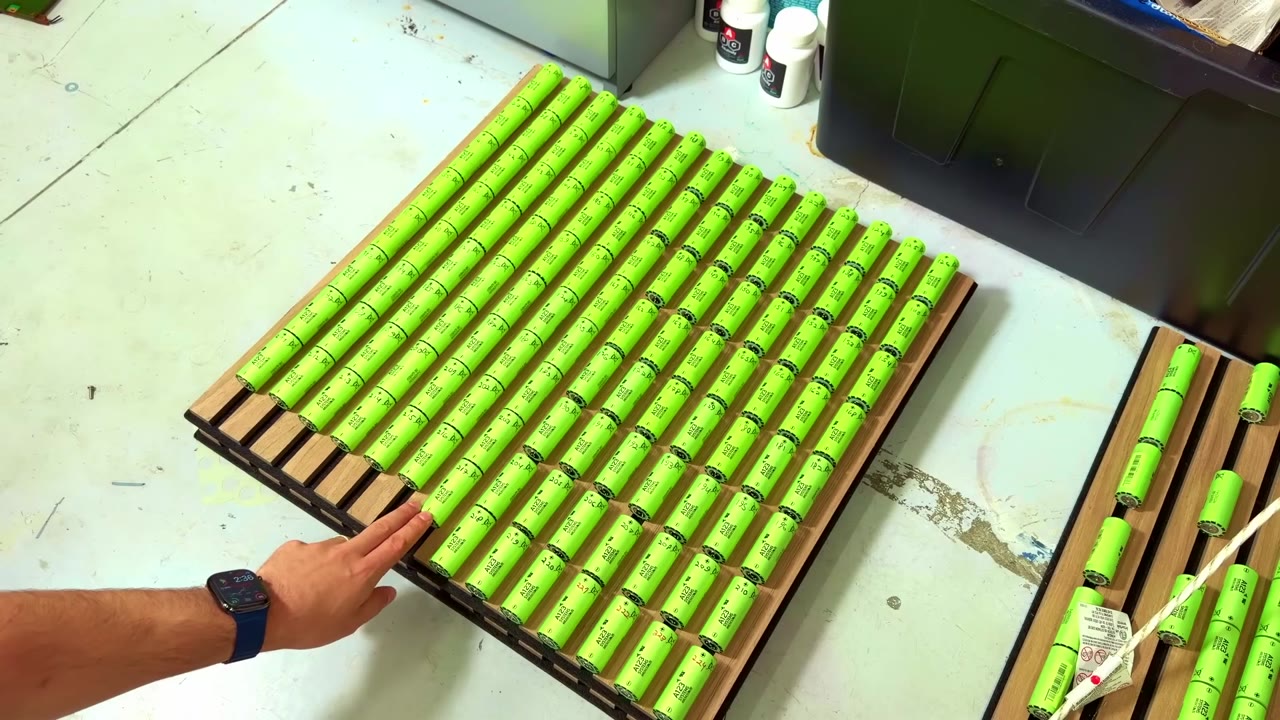

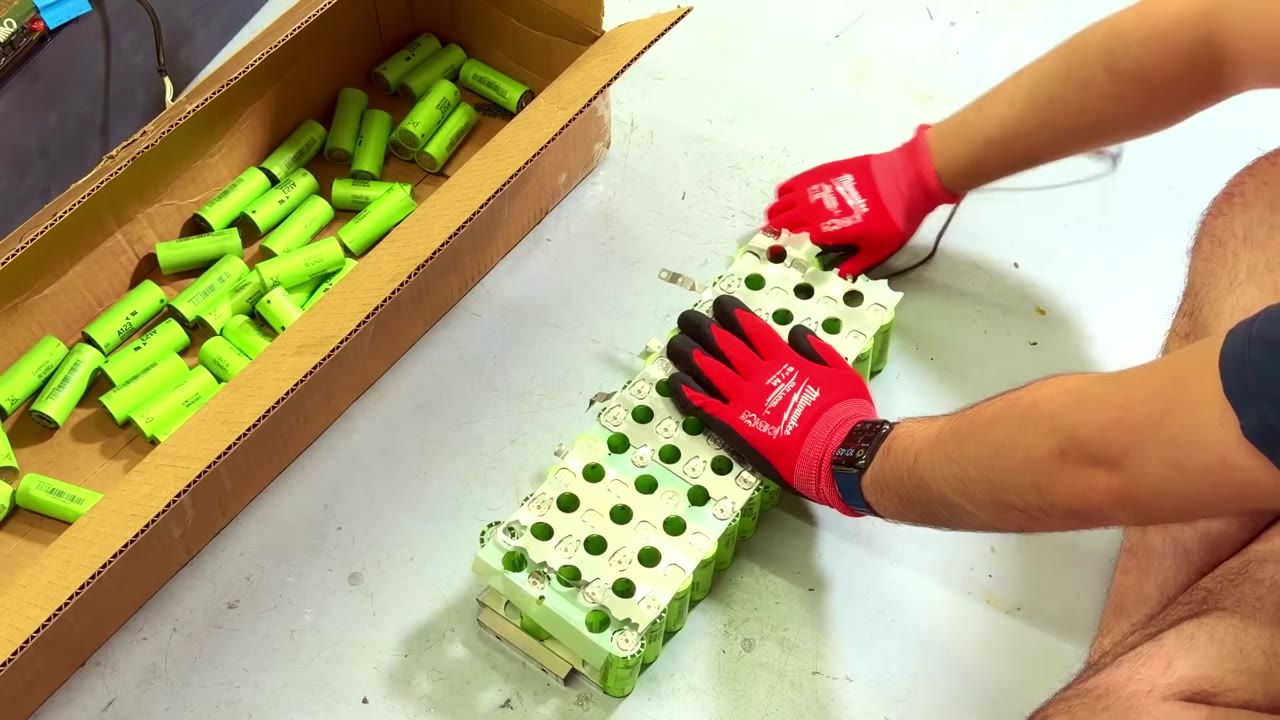

Built Cell Goblin to sort 768 retired A123 cells from electric buses for a go-kart battery project. The tester has processed over 500 cells so far, with full charge/discharge curves logged to a database and internal resistance measured separately.
