BUILD A SPOT WELDER FROM A MICROWAVE SOMEONE THREW OUT
A discarded microwave already has the transformer you need to weld battery packs—if you can safely gut it first.
by psyberjock
WorkshopEnergy
Built withArduino
- difficulty
- ●●●●○
- time
- a weekend
- license
- license not specified
- repo
- repo 0 stars
●●●●○ · a weekend · license not specified · 0 stars · repo
WHAT YOU’LL NEED
Jump to section
COMPAREE VERDICT

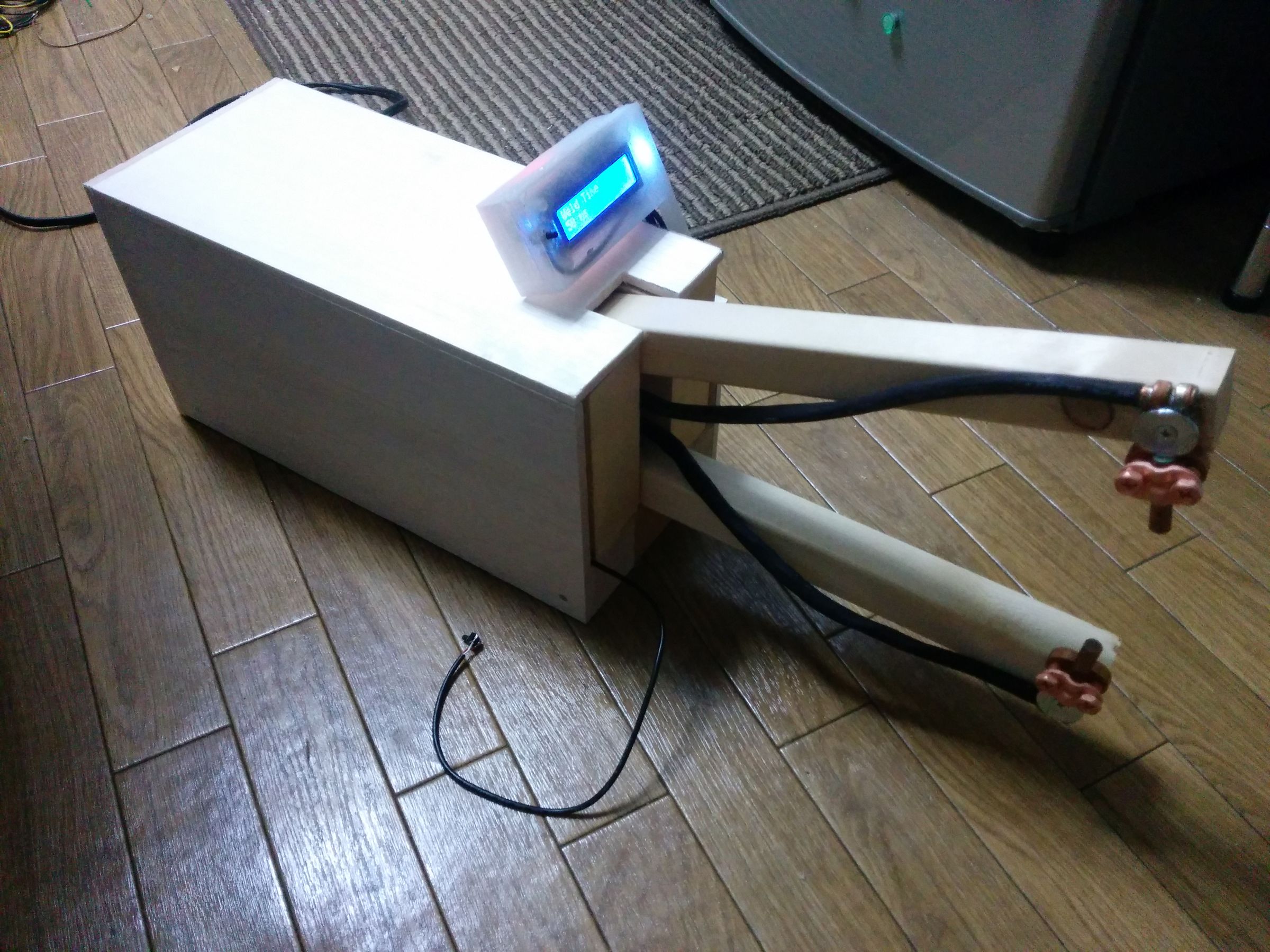

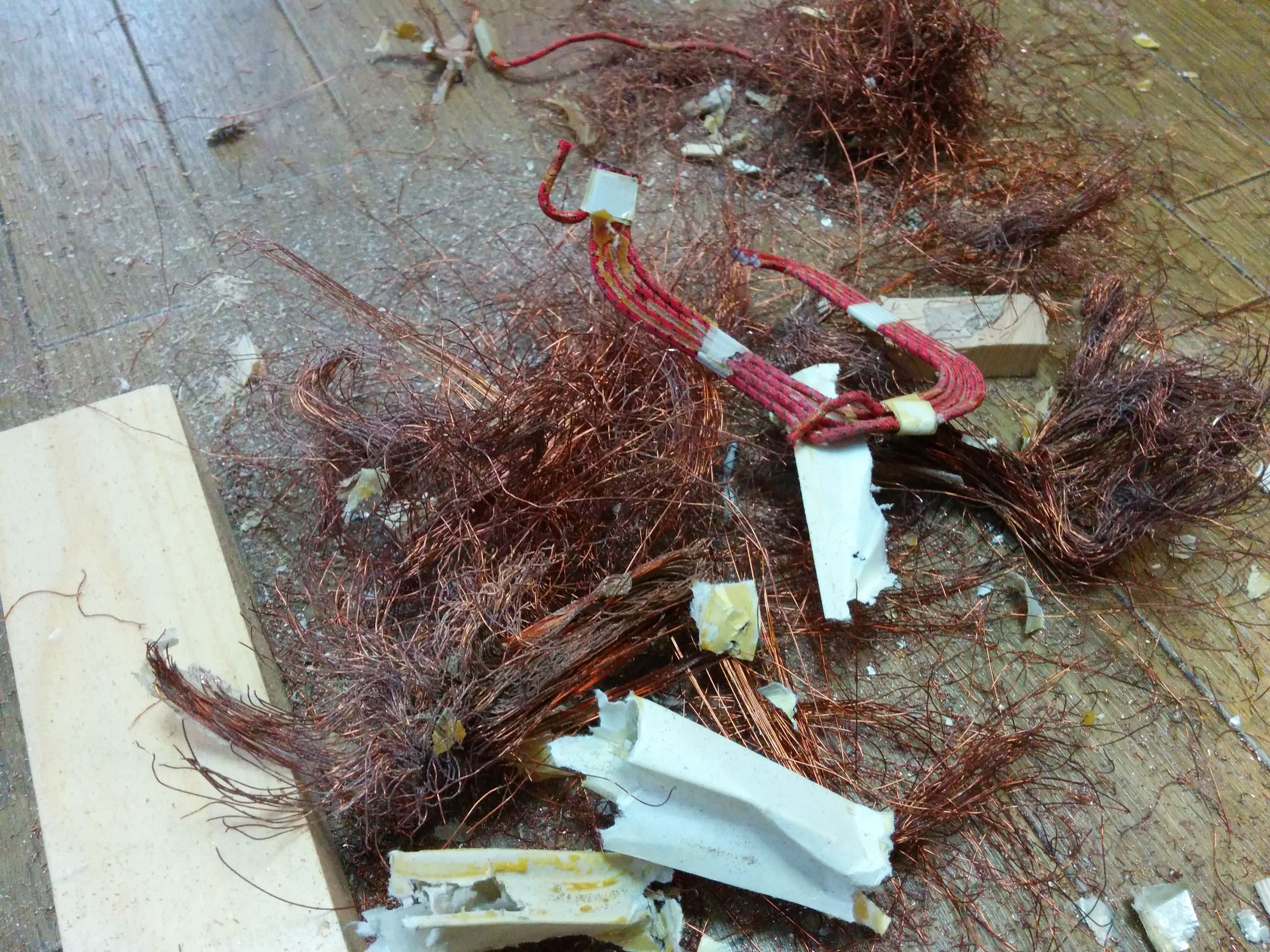

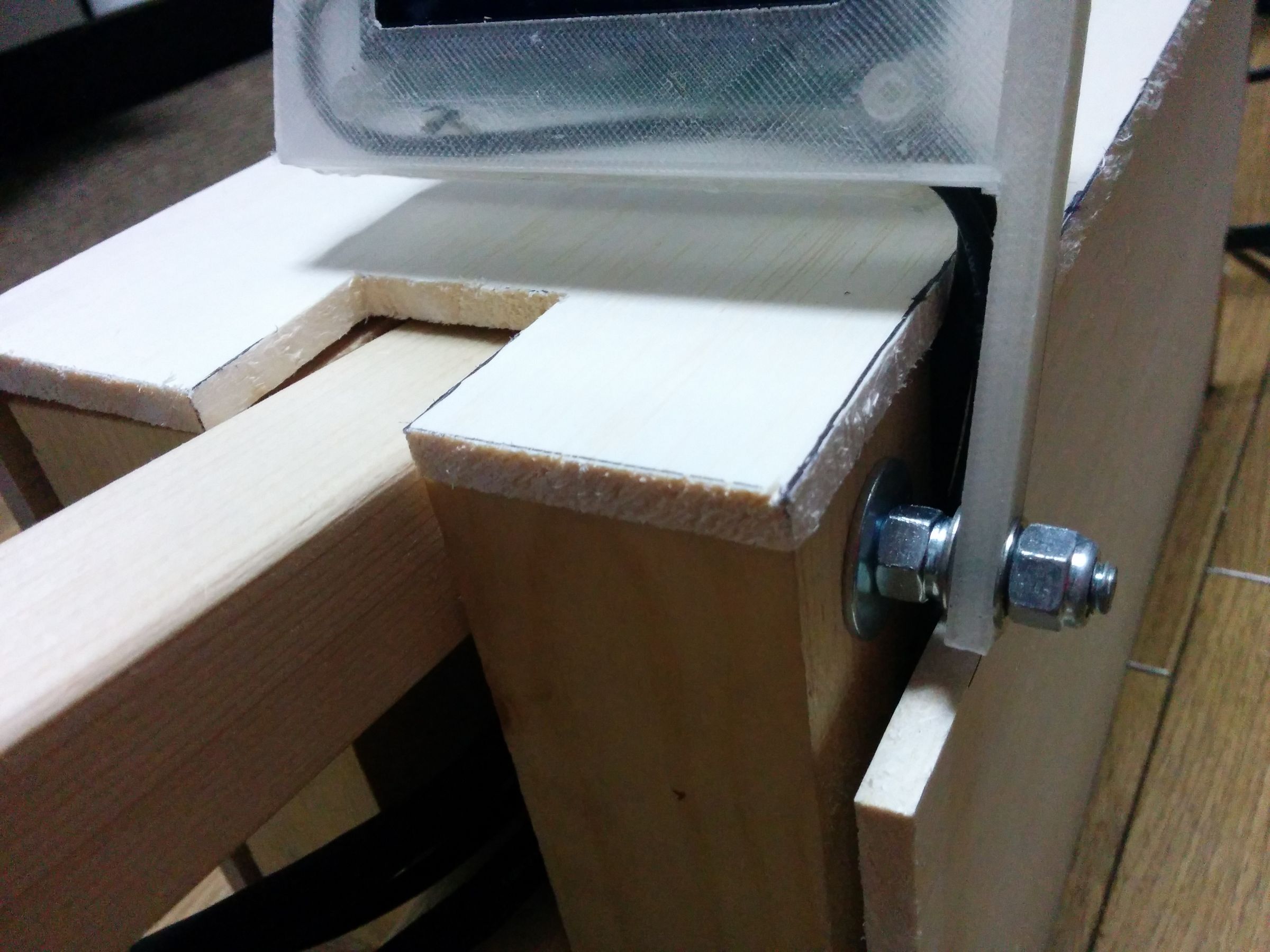

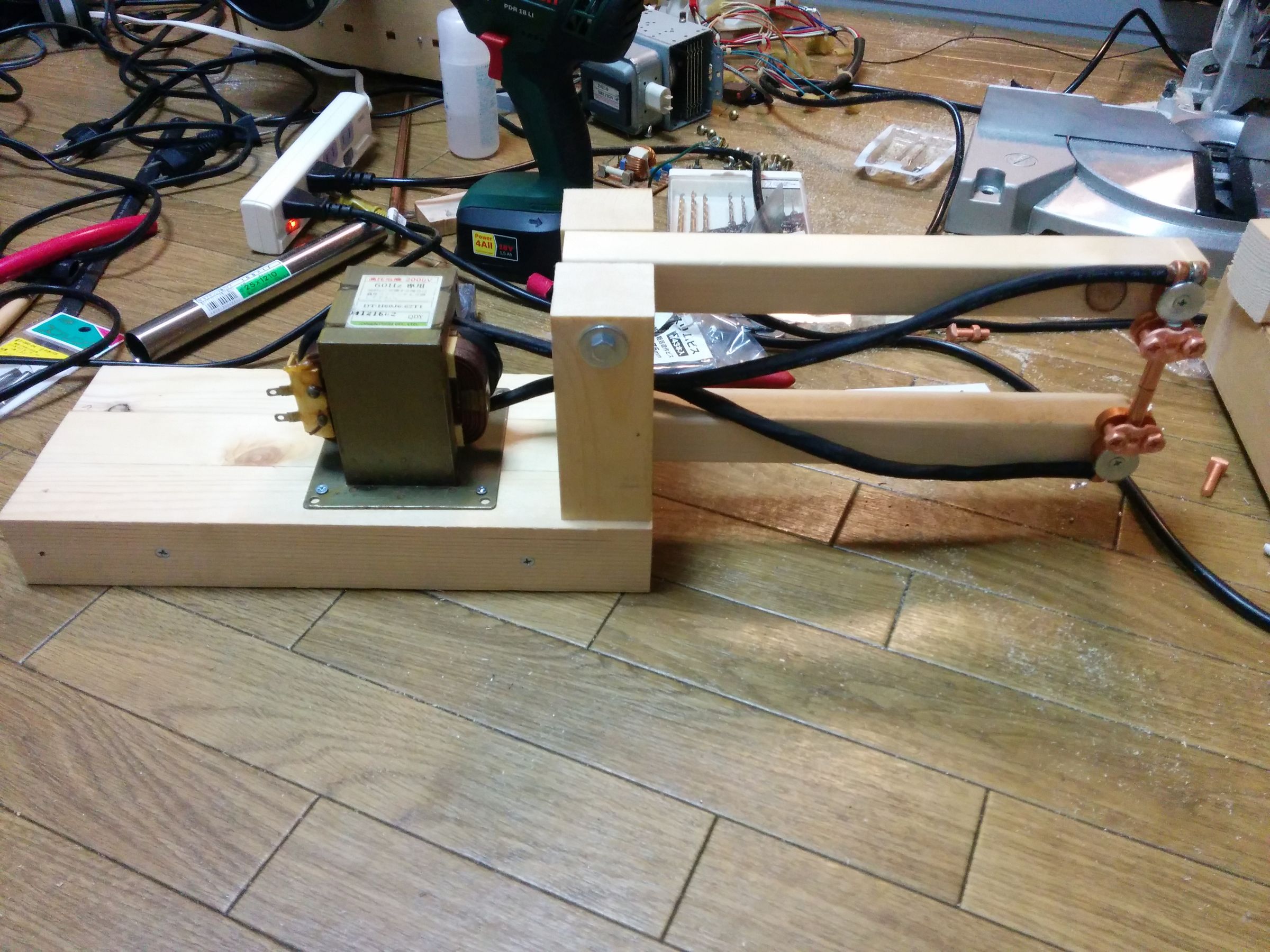

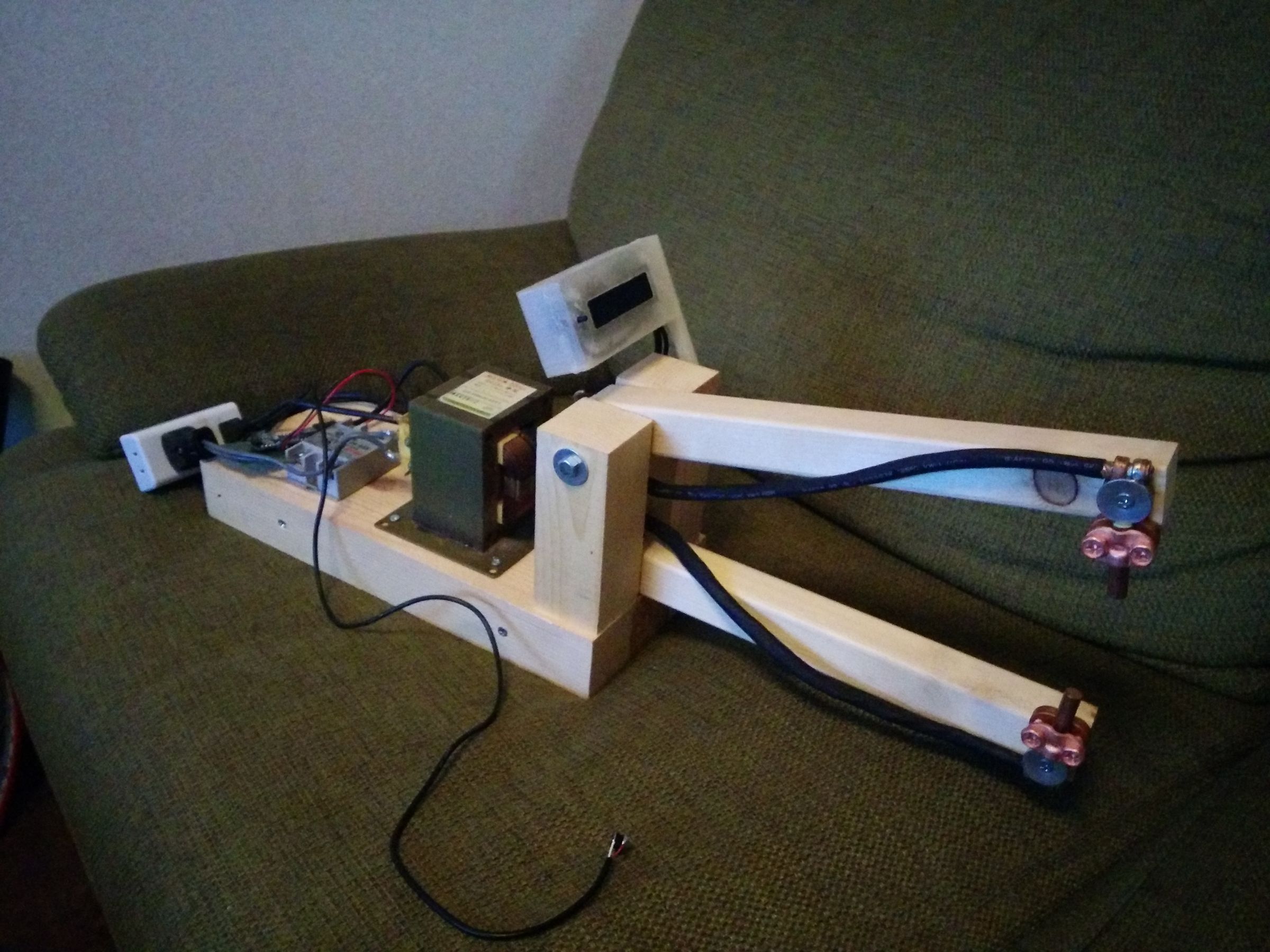

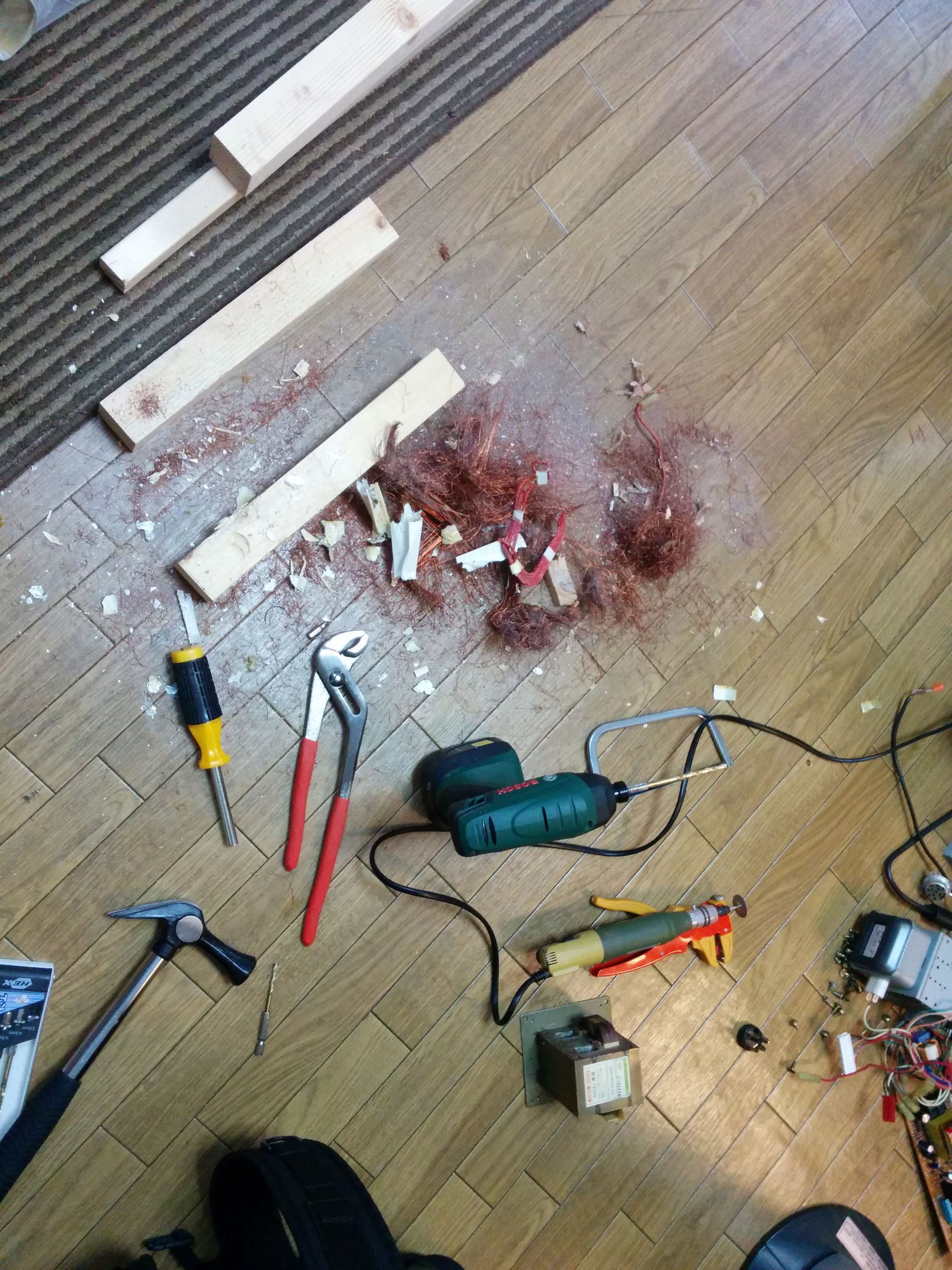

This build delivers what it promises: a dual-pulse spot welder built around a salvaged microwave oven transformer, with an Arduino, a 16x2 LCD and a single-button menu for presets and manual mode, triggered by a hand button or foot pedal. The secondary is rewound with a few turns of thick cable (the author used 1200 amp jumper cable), a 40 amp solid-state relay switches the primary, and a thermistor locks out welding if the cable insulation reaches 80 °C. The author says it can be built for under 50 dollars if you play your cards right, and the guide is released under CC0, though the 3D-printed LCD case he used is based on a Thingiverse design licensed non-commercial. The descriptions are detailed but the author apologises for the lack of step-by-step photos. The single most dangerous step is getting the transformer out: the microwave's high-voltage capacitor can kill you, and the guide warns about it and links another guide rather than walking you through it. If you build battery packs and already know how to work safely inside a microwave and with mains wiring, this is worth the weekend. If not, start with something that will not kill you if you get it wrong.
