YOU CAN BUILD A MACHINE THAT WRAPS CABLES IN TAPE FOR YOU

A foot-pedal machine that spins cloth tape around cables while you guide them, built from plywood and a drill battery.

by Well Done Tips

FULL CAD BOM FIRMWARE DOCS

Workshop

difficulty
●●●○○
time
a weekend
license
license not specified
repo
repo 0 stars

WHAT YOU’LL NEED

Videos
1
Jump to section

COMPAREE VERDICT

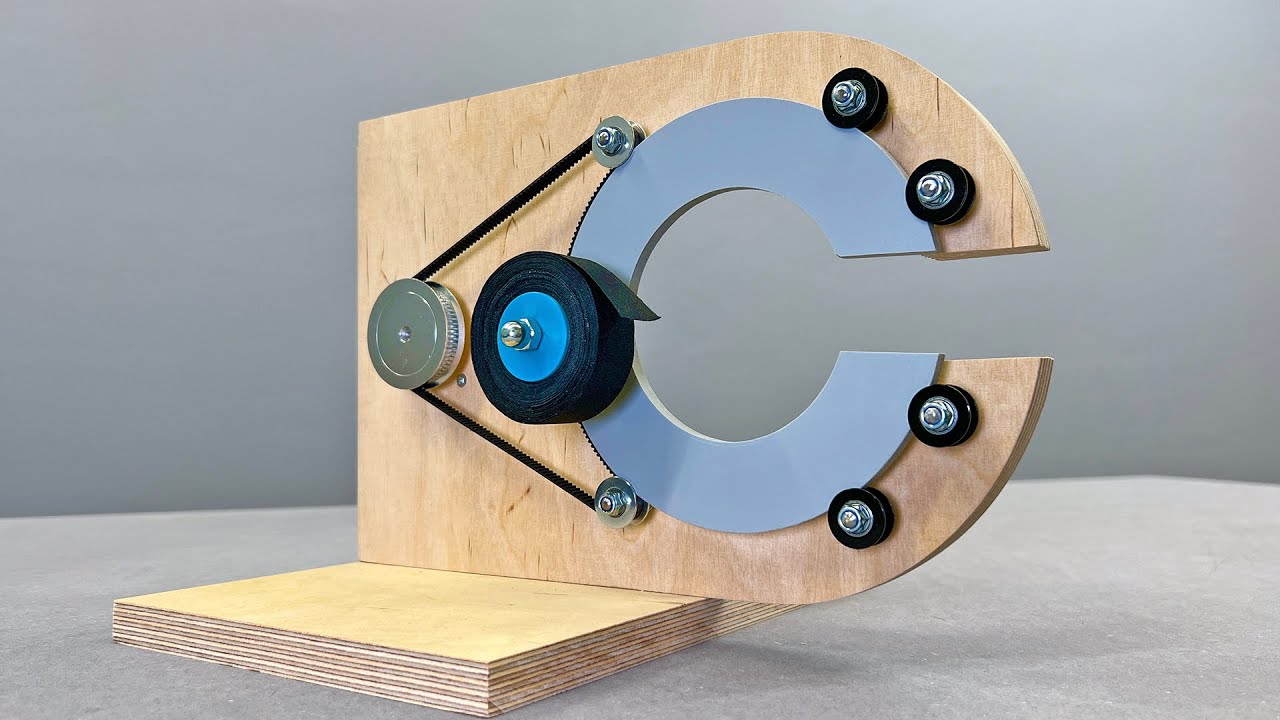

This is a single-purpose workshop jig for anyone who wraps wire bundles more than once a month. The tape roll orbits the cables on a spinning PVC ring while you hold the bundle steady, which is faster and neater than doing it by hand. The foot pedal leaves both hands free. The design is straightforward — a plywood frame, a C-shaped ring cut from 6mm PVC sheet, a handful of pulleys and a timing belt driven by a 12V geared motor — but you will spend most of the weekend cutting, drilling and aligning the pulley positions so the belt runs true. The guide gives measurements but no templates, so careful layout work is the make-or-break step. The cordless drill battery mount is a nice touch if you already have compatible packs; if not, you will need to adapt the base or wire a different 12V supply. The one thing most likely to go wrong is belt tension: too loose and it slips, too tight and the motor stalls. Cloth electrical tape is specified because it stretches slightly as it wraps; standard PVC tape will not lay as cleanly. This is not a beginner's first build, but if you have cut plywood accurately before and own a drill press or a steady hand, it is a practical tool that will outlast the weekend.

GOOD TO KNOW

  • —14-step Instructables guide with photos and dimensions is the entire documentation.
  • —No CAD files for the plywood frame or the PVC ring — you mark and cut from measurements given in the steps.
  • —3D-printed tape adapter STL is linked in step 12.
  • —No formal BOM — parts are named in the text (GT2 belt, 20T pulleys, 60T pulley, 12V geared motor, PWM speed controller, foot pedal, M5 and M6 bolts).
  • —Licence is CC BY-NC-SA, which prohibits commercial use.

Parts to buy

11 items

From our check of the build. Exact quantities and part numbers are in the creator’s BOM.

  • 18mm plywoodFind
  • 6mm PVC sheetFind
  • GT2 timing beltFind
  • 20T idler pulleys (three toothed, four smooth)Find
  • 60T drive pulleyFind
  • 12V DC geared motorFind
  • PWM speed controller with knobFind
  • Foot pedal switchFind
  • M5 and M6 boltsFind
  • Cordless drill battery and compatible mountFind
  • Cloth electrical tapeFind

BUILDS OF THE WEEK

Five open-source builds worth your weekend, every week.

Checked like this one: what’s really in the repo, what it costs, how hard it is. One email, unsubscribe anytime.

Can I build this?

PrintTwo-part tape adapter (STL linked in step 12)
Buy18mm plywood, 6mm PVC sheet, GT2 timing belt, 20T idler pulleys (three toothed, four smooth), 60T drive pulley, 12V DC geared motor, PWM speed controller with knob, foot pedal switch, M5 and M6 bolts, cordless drill battery and compatible mount, cloth electrical tape
ToolsJigsaw or bandsaw to cut the PVC ring, drill press or hand drill, screwdriver, 3D printer (or access to one)
SkillsIntermediate — you need to cut a clean circle in PVC, drill aligned holes in plywood, and tension a timing belt. No soldering or code, but mechanical precision matters.
TimeA weekend — cutting and fitting the ring, mounting pulleys and getting the belt tension right will take longer than the guide suggests.
Cost$$ — motor, pulleys, belt and speed controller dominate the cost; plywood and PVC are cheap, but the geared motor and PWM controller together will run $30–50 depending on where you source them.
Safety12V DC only, so no mains shock risk. The spinning ring has exposed edges — keep fingers clear while it is running. No other hazards beyond ordinary workshop care.
