A SIX-CHANNEL OPEN-SOURCE ENERGY METER SHOWS WHICH CIRCUIT IN THE HOUSE IS ACTUALLY EATING THE BILL

This board turns a breaker box into a live per-circuit power graph that runs inside the house.

by CircuitSetup

FULL CAD BOM FIRMWARE DOCS

EnergyHome

difficulty
●●●●○
time
a weekend
license
MIT
repo
repo ACTIVE686 stars

WHAT YOU’LL NEED

  • 3D printer + filament — printable parts — files are in the repo
  • Electronic parts — full list with part numbers in the repo BOM
  • Dev board / microcontroller — runs the project firmware

Partner

Reach your Pi from anywhere — Remote desktop to the machine running this build — no port forwarding, works right from the browser.Try Getscreen.me
Videos
1

COMPAREE VERDICT

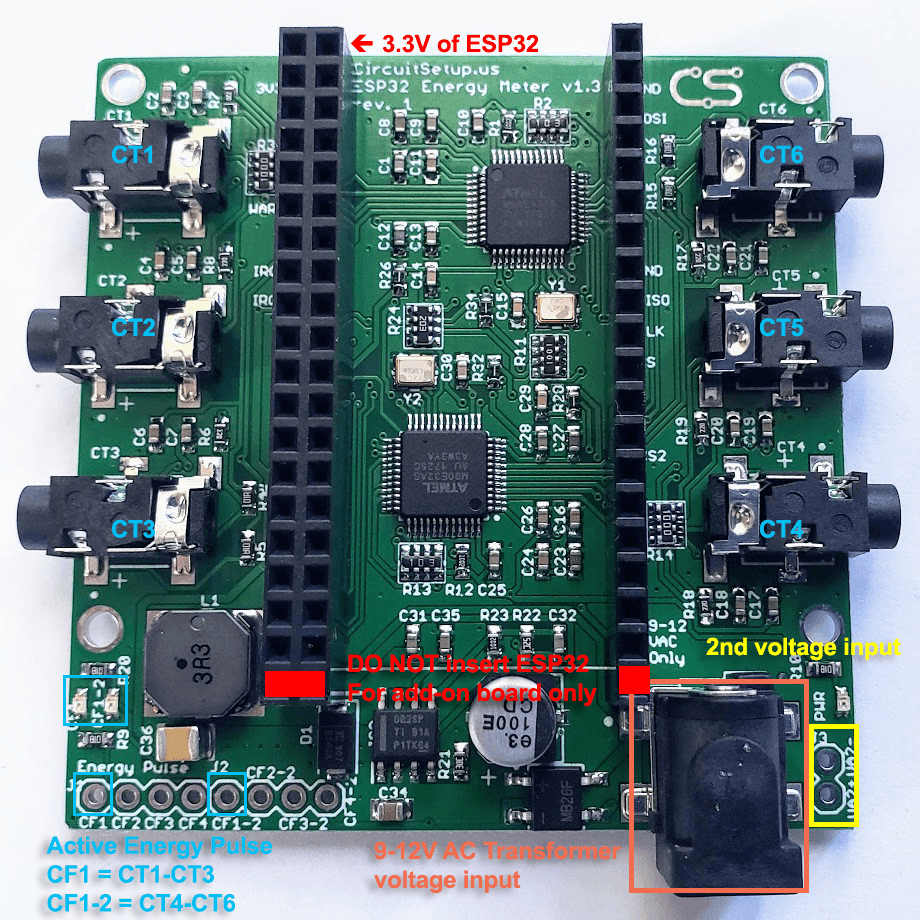

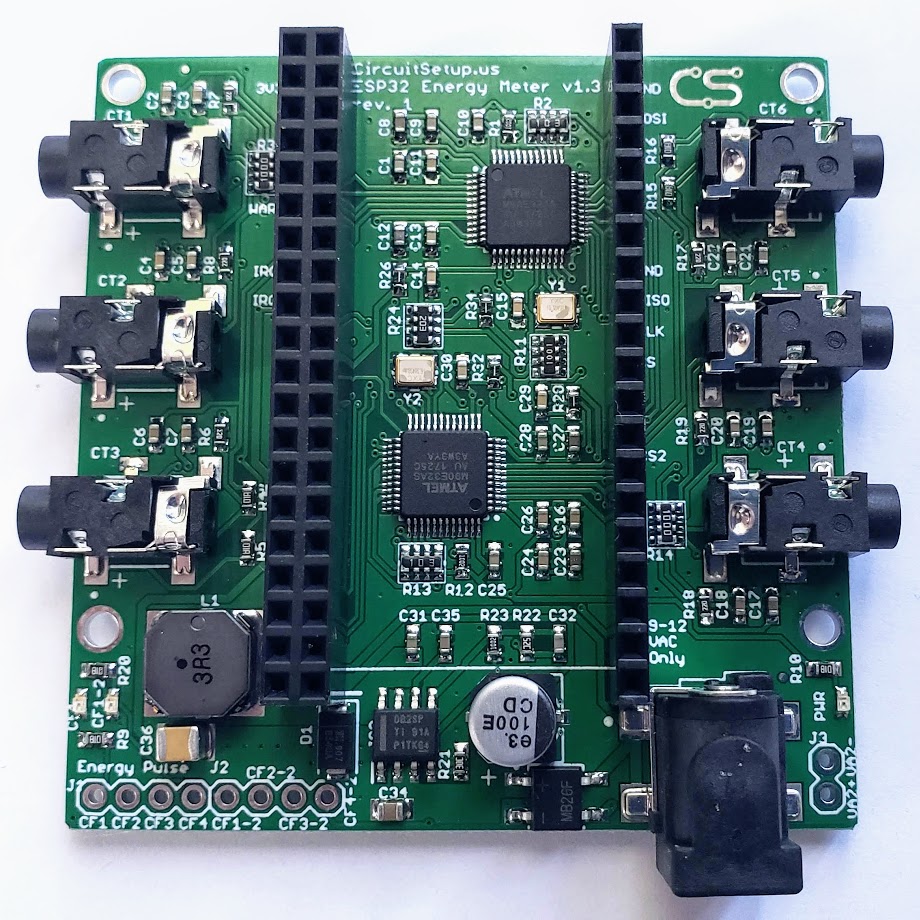

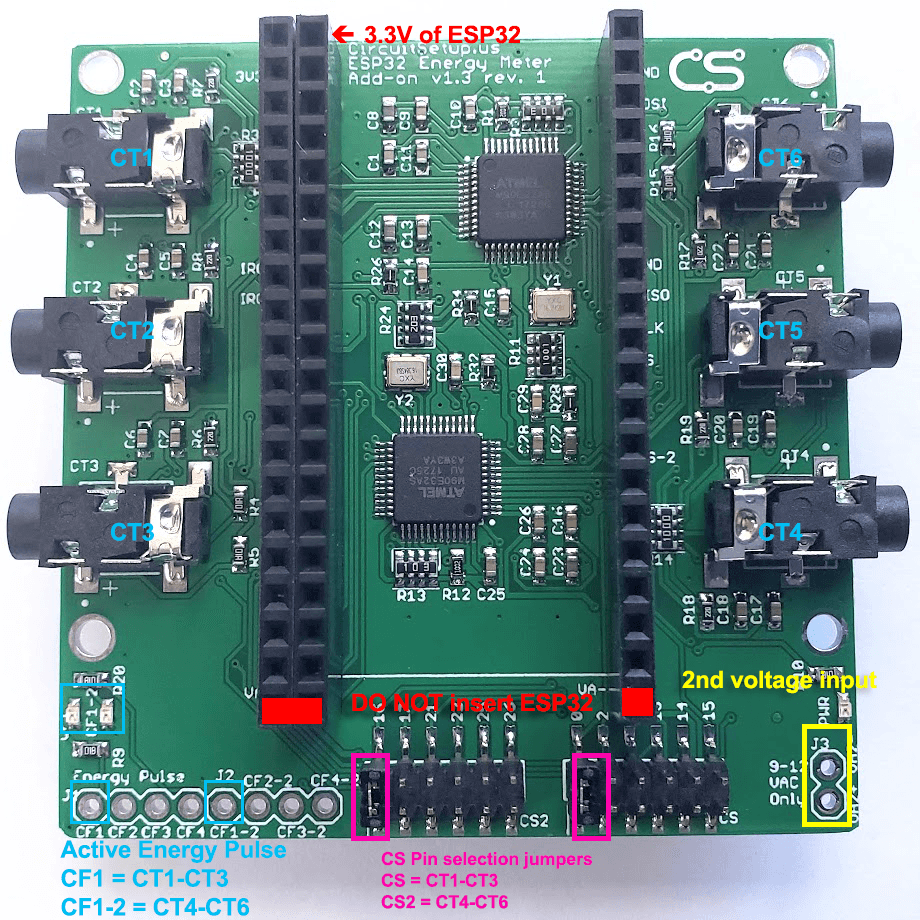

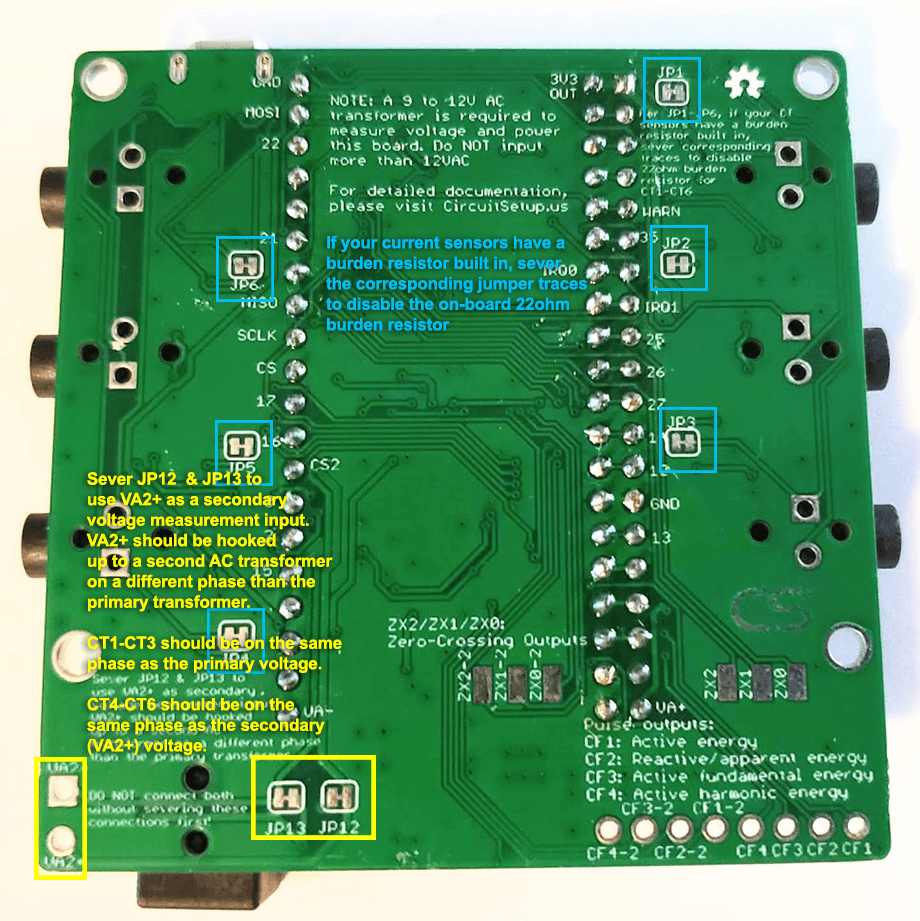

The Expandable 6-Channel ESP32 Energy Meter is the open hardware answer to knowing which circuit in the house is actually eating the bill. Two ATM90E32AS metering chips give 16-bit resolution with around 0.1 percent typical accuracy, reporting active power, reactive power, apparent power, power factor, frequency and temperature. Six current channels sit on the main board and up to six add-on boards stack for 42 channels total, which covers every breaker in a normal consumer unit. Current is picked up by clip-on current transformers that clamp around the existing wiring rather than cutting into it. The board needs an ESP32 development board plus a 9 to 12 volt AC-AC adapter — not a DC one — because it samples the mains waveform for the voltage reference. Firmware options are ESPHome (project recommended), Home Assistant, EmonESP with emonCMS, and CircuitPython or MicroPython libraries. The result is a live per-circuit graph on a dashboard that never leaves the owner's network. The single biggest trap: this is not a kit. The board must be ordered from a PCB house or bought assembled from CircuitSetup, the current transformers must be sourced separately, and opening a live consumer unit is regulated electrical work in most places. The project is for someone who already knows their way around mains wiring or is prepared to pay an electrician to fit the clamps. For that person, this is the only open hardware meter that scales past a handful of circuits.

NOT IN THE REPO

  • —Hardware files (KiCAD), Gerbers, and assembly instructions are in the repository under MIT licence, which permits commercial use.
  • —Firmware is ESPHome (recommended), with support for direct Home Assistant integration, EmonESP with emonCMS, CircuitPython and MicroPython.
  • —The board itself must be ordered from a PCB house or bought assembled from CircuitSetup — no pre-made kit.
  • —Current transformers, the ESP32 development board, and the 9-12 V AC-AC adapter are not included and must be sourced separately.
  • —Opening a live consumer unit is regulated electrical work in most jurisdictions, even though the clamps themselves never touch conductors.
  • —The 0.1 percent accuracy figure is the project's stated typical value, not an independent measurement.

Can I build this?

Printnothing required
BuyPCB (order Gerbers or buy assembled from CircuitSetup), ESP32 development board, clip-on current transformers (SCT-013-000 or equivalent, one per circuit), 9-12 V AC-AC adapter, add-on boards if monitoring more than six circuits
Toolssoldering iron if assembling the board yourself, screwdriver for DIN rail mount, Home Assistant or emonCMS server for data display, electrician if not qualified for mains work
Skillsintermediate electronics assembly if ordering bare PCBs, familiarity with ESPHome or Home Assistant, comfortable working near (not on) live mains or willing to hire an electrician
Timea weekend to assemble and configure, plus electrician time if required
Cost$$ — dominated by the assembled board if bought from CircuitSetup (around $70-90 for the main 6-channel), current transformers (around $10-15 each), and electrician call-out if needed
SafetyOpening a live consumer unit is regulated electrical work in most countries. The current transformers themselves never touch conductors, but fitting them requires the panel to be open. If not qualified, hire an electrician.

This build involves mains voltage — for adults comfortable with electrical work only.

Build at your own risk. Projects involve tools, electronics and sometimes mains voltage — follow the creator’s safety notes.

Blu-ray drive, 10 Gbps hub and card reader in one boxPartner · Kickstarter
Blu-ray drive, 10 Gbps hub and card reader in one box

BluHub reads and burns Blu-ray/DVD/CD, adds USB-C, USB-A, SD/TF and 10 Gbps data — plug and play, grand-piano finish.

See the hub

Videos

Six-channel energy meter install and dashboard

No official project video. Community walkthroughs exist but are not linked in the repository.

Gallery

Start here

Navigation into the creator’s own docs — we don’t rewrite the guide, we route you to the source.

  1. 1.Check local regulations on who may open a consumer unit(In most jurisdictions this is restricted electrical work, even though the clamps themselves are non-invasive.)
  2. 2.Order or buy the main board (Gerbers are in the Hardware folder. Assembled boards are available from circuitsetup.us.)
  3. 3.Source current transformers (SCT-013-000 100 A / 50 mA CTs are the common choice. One per circuit.)

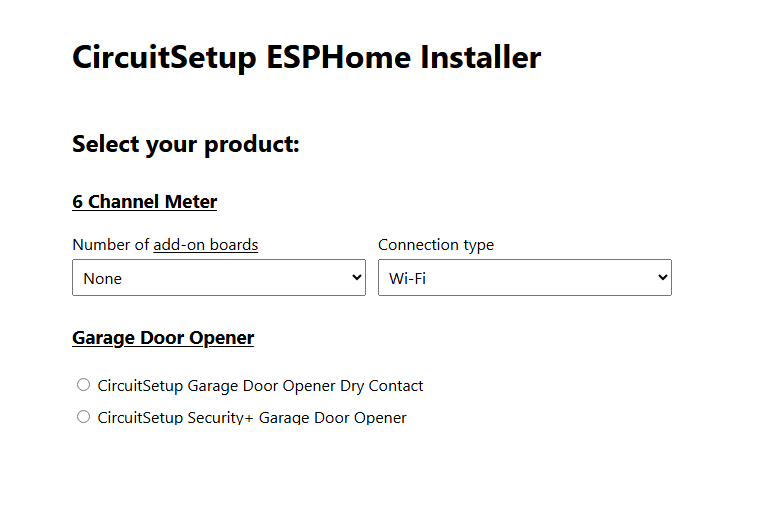

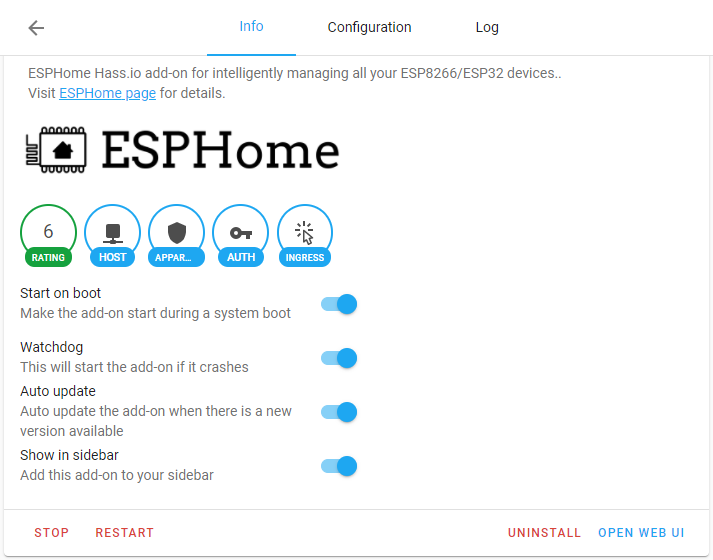

  4. 4.Flash ESPHome firmware (ESPHome YAML config is in the repository. Alternative firmware options are also documented.)
