YOU CAN 3D PRINT A CUBE THAT BALANCES ITSELF ON A SINGLE CORNER
A 3D-printed cube that stands motionless on a single corner using three internal reaction wheels and an ESP32.
by remrc
RoboticsOpen-hardware
- difficulty
- ●●●●○
- time
- a weekend-plus
- license
- MIT
- repo
- repo ACTIVE527 stars
●●●●○ · a weekend-plus · MIT · 527 stars · repo ACTIVE
WHAT YOU’LL NEED
- 3D printer + filament — printable parts — files are in the repo
- Electronic parts — full list with part numbers in the repo BOM
- Dev board / microcontroller — runs the project firmware
- Soldering kit + basic tools — one-time buy, serves every future build
Partner
COMPAREE VERDICT
This is a genuine demonstration of reaction wheel control, the same principle that keeps satellites oriented in space. The cube uses three brushless motors spinning weighted discs to generate torque in any direction, while an IMU feeds orientation data to the ESP32 at high speed. The result is a cube that flips itself upright from lying flat and balances motionless on a single corner, correcting itself instantly when pushed. The firmware is complete and the parts list is specific. The difficulty is high because the motors must be wired carefully, the PID parameters need adjustment for your exact motor weight and battery, and the initial calibration requires trial and multiple test runs. If a motor spins the wrong direction or the IMU orientation is backwards, the cube will thrash instead of balance — you will spend time debugging. The payoff is a project that genuinely looks like it defies physics and teaches real control theory. Most likely to go wrong: incorrect motor direction or loose wiring causing intermittent IMU readings during the violent flip maneuver.
IN THE REPO
NOT IN THE REPO
- —STL files for the cube shell and motor mounts are present.
- —Full Arduino firmware is included with PID tuning parameters.
- —Bill of materials lists three brushless motors, ESCs, IMU, ESP32, and battery.
- —Assembly instructions are present but assume comfort with motor wiring and calibration.
- —No PCB — everything wires point-to-point inside a small enclosure.
- —MIT license — commercial use is allowed.
Can I build this?
Build at your own risk. Projects involve tools, electronics and sometimes mains voltage — follow the creator’s safety notes.
Partner · KickstarterHeyGears G1: 10M+ colors and transparent parts in one print, plus UV printing on flat objects. Figures, parts and labels — no painting.

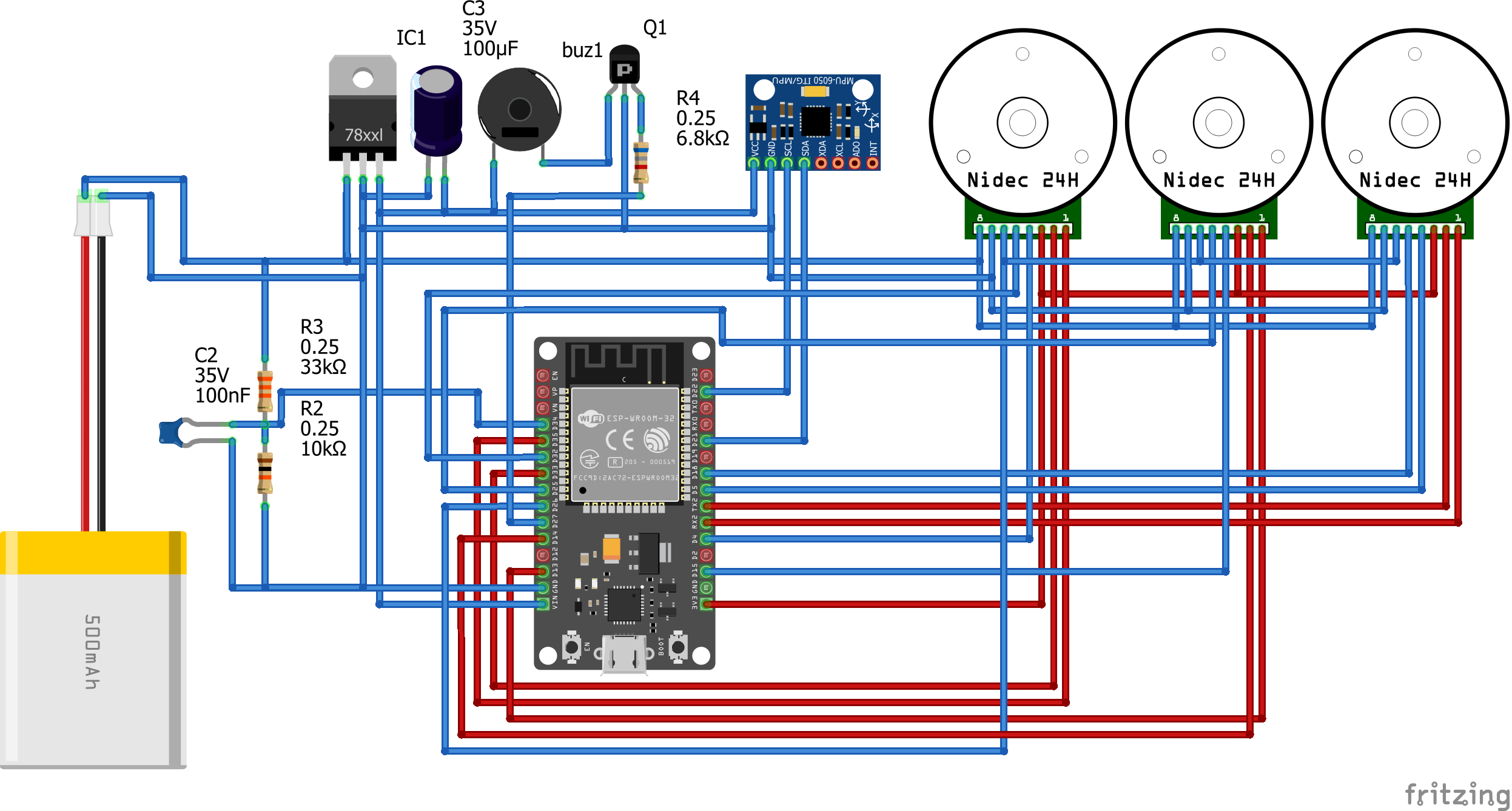

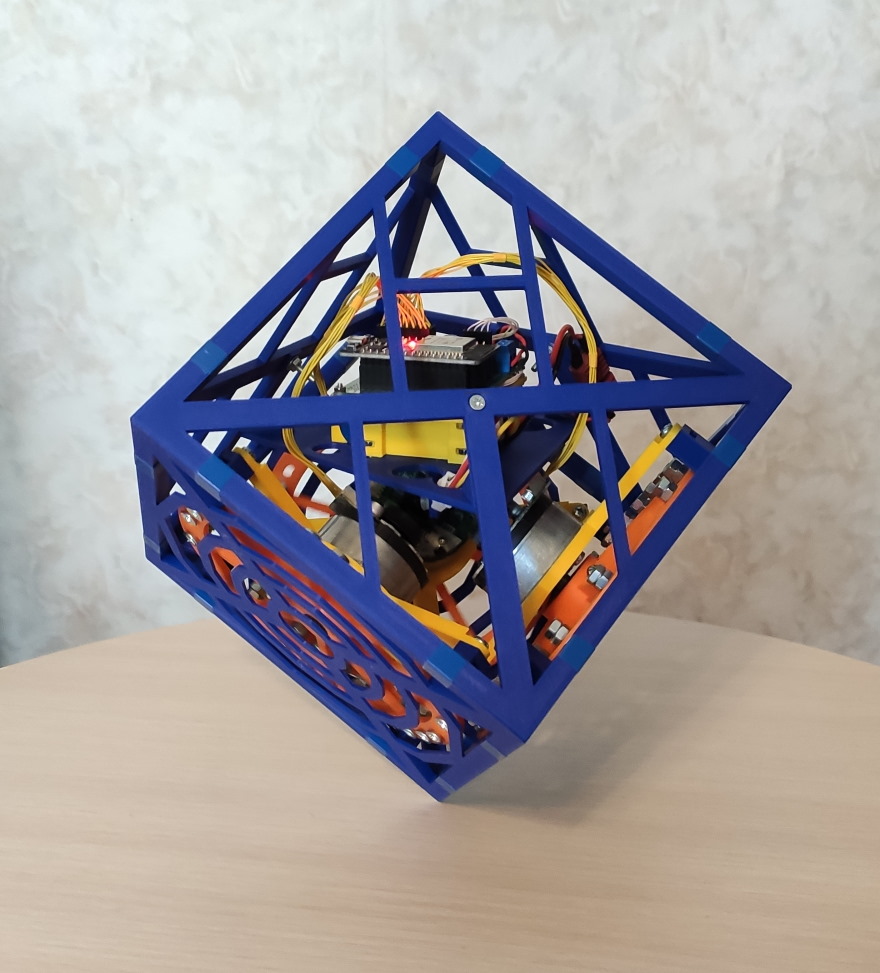

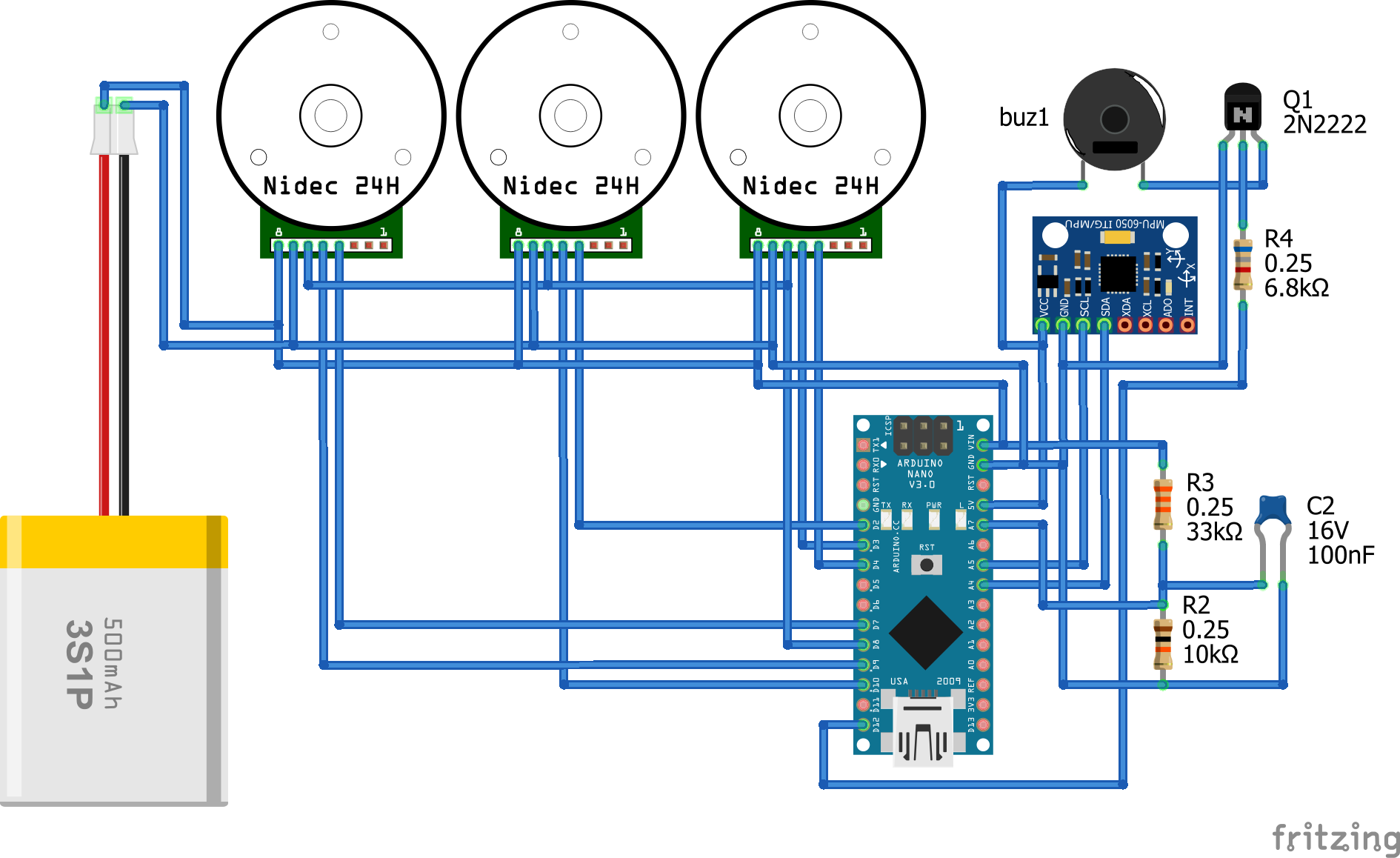

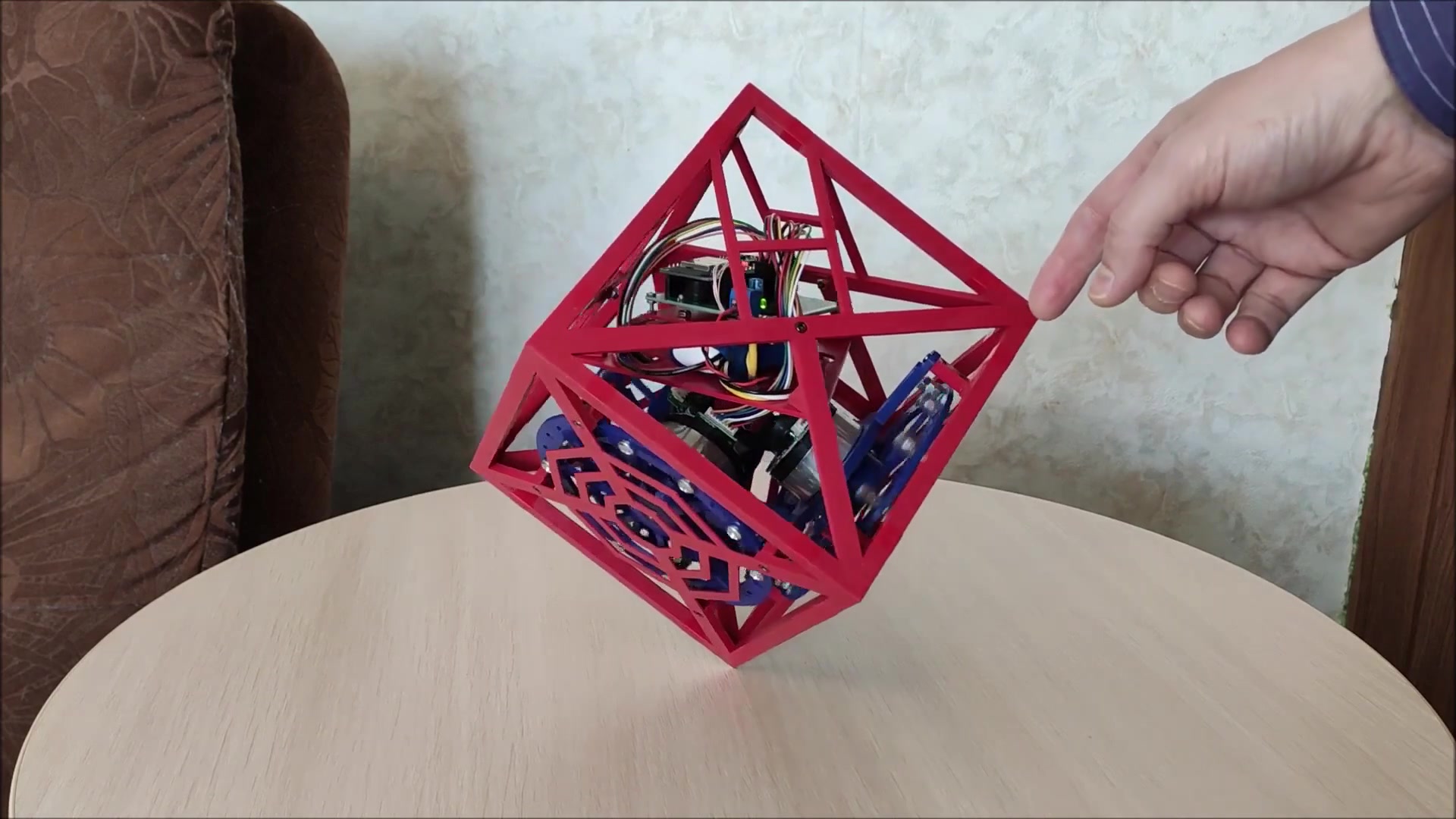

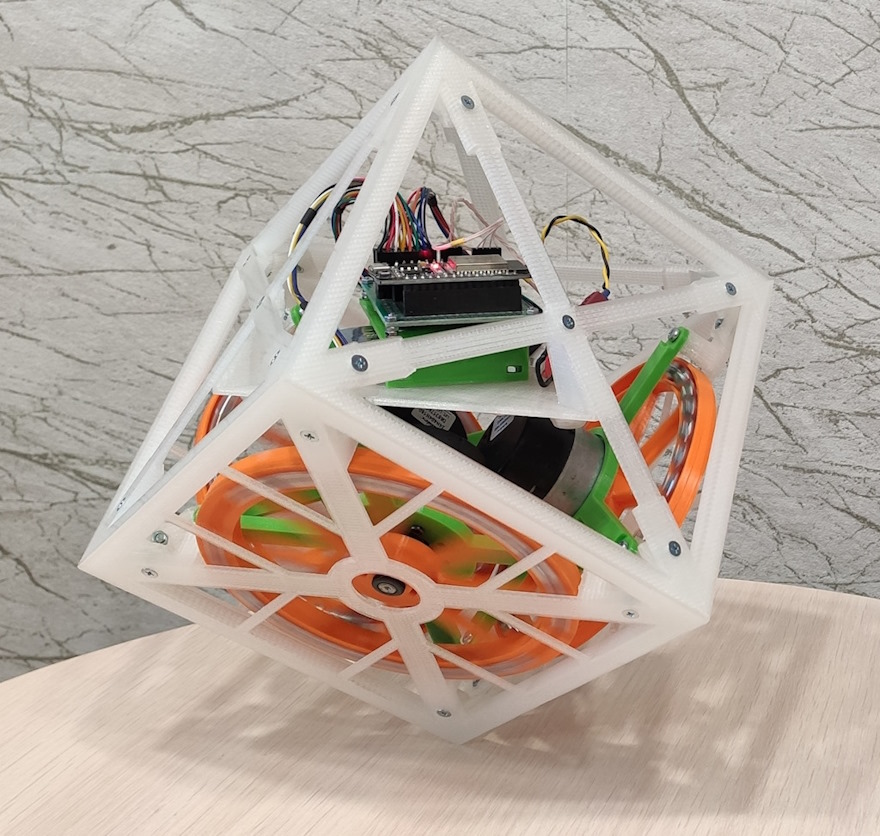

Gallery
Start here
Navigation into the creator’s own docs — we don’t rewrite the guide, we route you to the source.
- 1.Read the full README and watch the embedded demo GIFs to understand the balancing behavior (The GIFs show both the flip-up and corner balance in action)
- 2.Print the STL files — the cube shell, motor mounts, and base cap(Use 20% infill or higher for structural strength during flips)
- 3.Order the parts from the bill of materials — focus on the exact motor and ESC models listed (Motor weight and moment of inertia matter — substitutions will require PID retuning)
- 4.Flash the firmware to the ESP32 and calibrate the IMU orientation before final assembly(Test IMU readings on a flat surface first to confirm axes are correct)
Resources
Documentation, files and community threads for this build — we link straight to the original sources and never rehost the creator’s files.
KNOWN ISSUES
- Motor direction: if even one motor spins backwards relative to the firmware expectation, the cube will thrash instead of stabilize — test each motor individually before assembly.
- IMU orientation: the MPU6050 must be mounted exactly as shown in the photos, or the firmware will interpret tilt in the wrong direction.
- Loose wiring: the cube flips violently during startup — any loose wire will disconnect mid-flip and cause a crash.
- PID tuning: the default parameters work for the exact motors listed, but any substitution (different weight or inertia) requires re-tuning by trial, which takes time.
- Battery placement: the center of mass must stay near the geometric center — a badly placed battery will make balancing impossible.
- ESC calibration: some ESCs require manual throttle range calibration before they respond correctly to the PWM signal from the ESP32.
Can I use different motors?
Yes, but you will need to retune the PID parameters in the firmware — motor weight and moment of inertia directly affect the control loop.
How long does it balance on one charge?
Typically 15–20 minutes depending on battery capacity and how much correction the motors are doing.
Does it need to be calibrated every time I turn it on?
No — once the IMU is calibrated and the firmware is tuned, it powers on and balances immediately.
What happens if a motor fails mid-balance?
The cube will immediately fall — it needs all three reaction wheels to generate torque in every direction.
Can it balance on surfaces other than a hard floor?
It needs a rigid corner point — carpet or soft surfaces will absorb the corrective torque and make balancing impossible.
Community builds
No community builds yet — be the first, we feature the best ones.
Discussion1
FROM THE COMPAREE TEAM
Three reaction wheels spinning inside a cube keep it balanced on a single corner — the same principle that orients satellites in space. Would you tune the PID by trial, or would you model it first?
remrc
Built this cube as a demonstration of reaction wheel control, the same physics that keeps satellites stable in orbit. The project documents the entire mechanical and firmware design, including the PID tuning process.
