YOU CAN BUILD A MACHINE THAT MAKES RADIOACTIVITY VISIBLE

A desktop instrument that makes individual particles of radiation visible as white vapor trails, built from a CPU cooler, two Peltier modules and isopropyl alcohol.

by Curious Scientist

FULL CAD BOM FIRMWARE DOCS

ScienceWorkshop

Built with3D printing

difficulty
●●●○○
time
a weekend
license
license not specified
repo
repo 0 stars

WHAT YOU’LL NEED

Videos
1
Jump to section

COMPAREE VERDICT

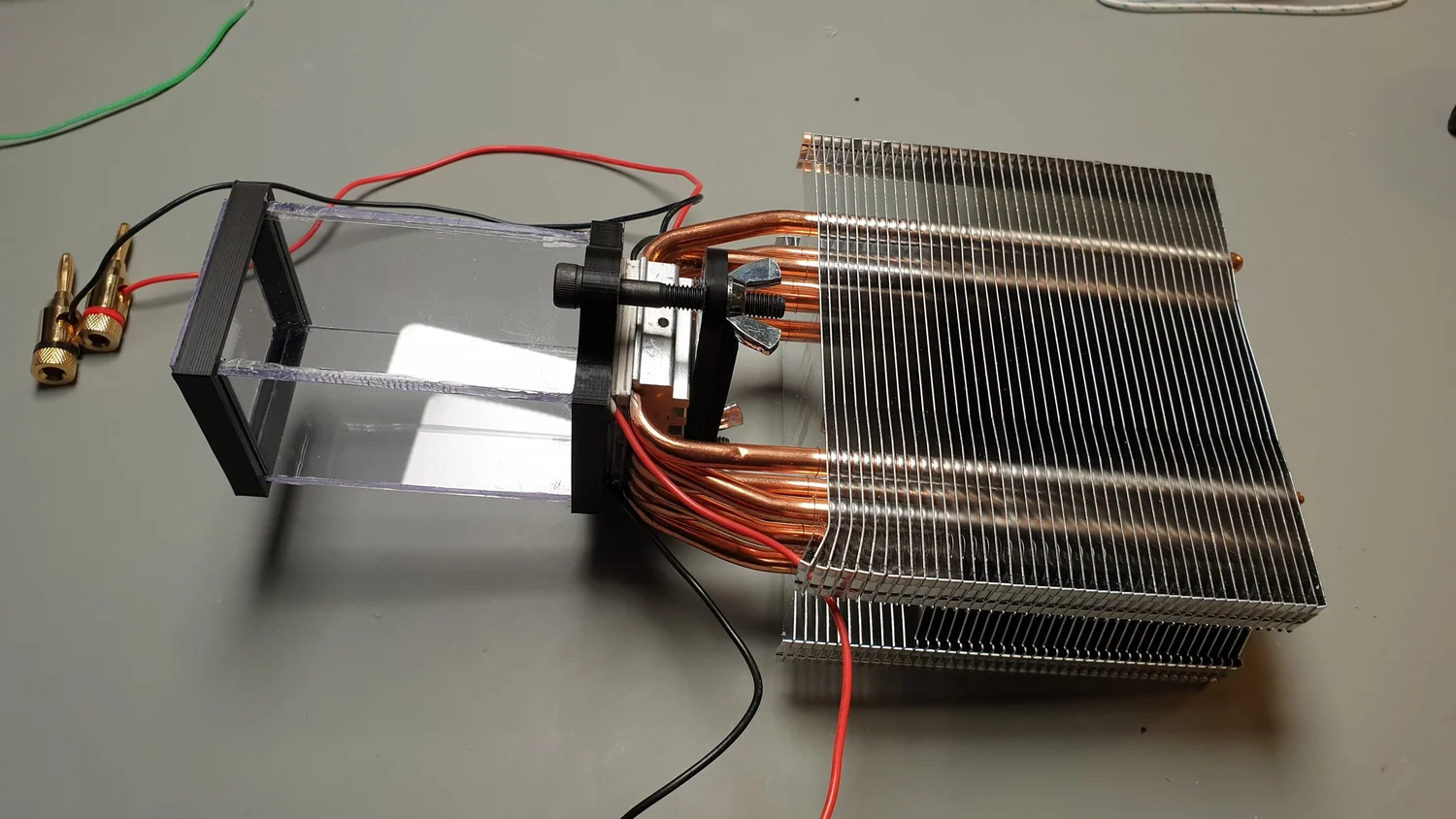

A cloud chamber is one of the most direct physics demonstrations you can build: you watch individual alpha and beta particles draw trails through supersaturated alcohol vapor, the same principle that won C.T.R. Wilson the 1927 Nobel Prize. Curious Scientist's build stacks two Peltier coolers (a TEC12715 under a TEC12703) on an ordinary air CPU cooler to chill the chamber floor to about -30°C, creating the temperature gradient needed for tracks to form. His blog post walks through the assembly with photos, exact voltages and currents, a parts list and downloadable 3D files for the small printed chamber. Frank Prins documented a larger version with water-cooled Peltier stacks, printable parts and a complete BOM that runs to about EUR 500, released as CC0. Both builds work and both show live footage of tracks. The single hardest part is not the assembly — it is getting the vapor density and Peltier voltages right, which takes trial runs. If you have never stacked Peltiers or tuned a supersaturated vapor, budget an extra evening. The reward is an instrument that makes the invisible visible, live, on your desk.

GOOD TO KNOW

  • —Curious Scientist's blog post shows the build process with photos, exact voltages and currents, a parts list, and downloadable 3D files for the printed chamber parts.

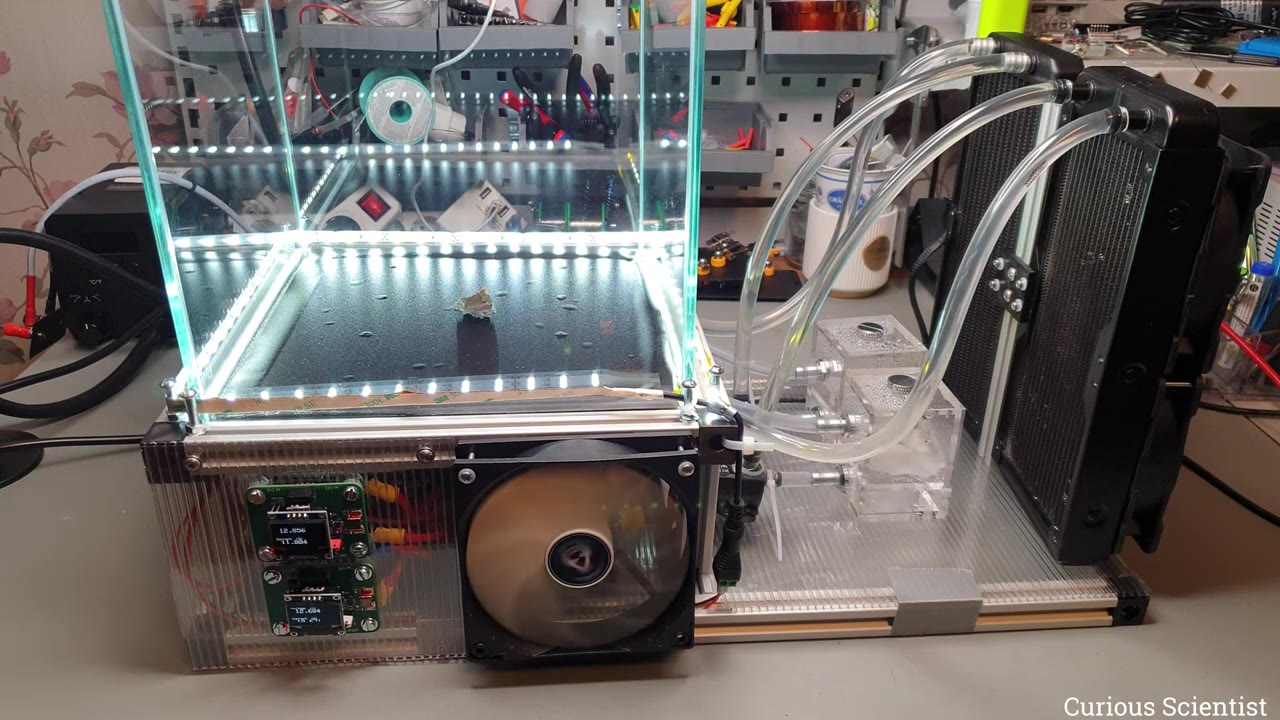

  • —Frank Prins's alternative build includes a detailed BOM (~EUR 500) and STL files for 3D-printed parts, licensed CC0 (public domain).
  • —Both builds document Peltier stacking, cooling loop assembly, and voltage supply setup. Neither provides circuit diagrams.
  • —The radioactive sources shown (americium smoke detector element, thorium mineral) are legal check sources in most jurisdictions, but sourcing rules vary by country.
  • —No firmware or code — this is a purely physical instrument.
  • —Frank Prins's parts list totals about 504 euros; Curious Scientist does not publish a total, but his build uses far fewer and cheaper parts.

Parts to buy

9 items

From our check of the build. Exact quantities and part numbers are in the creator’s BOM.

  • Two Peltier modulesFind
  • Air CPU cooler with fanFind
  • Thermal greaseFind

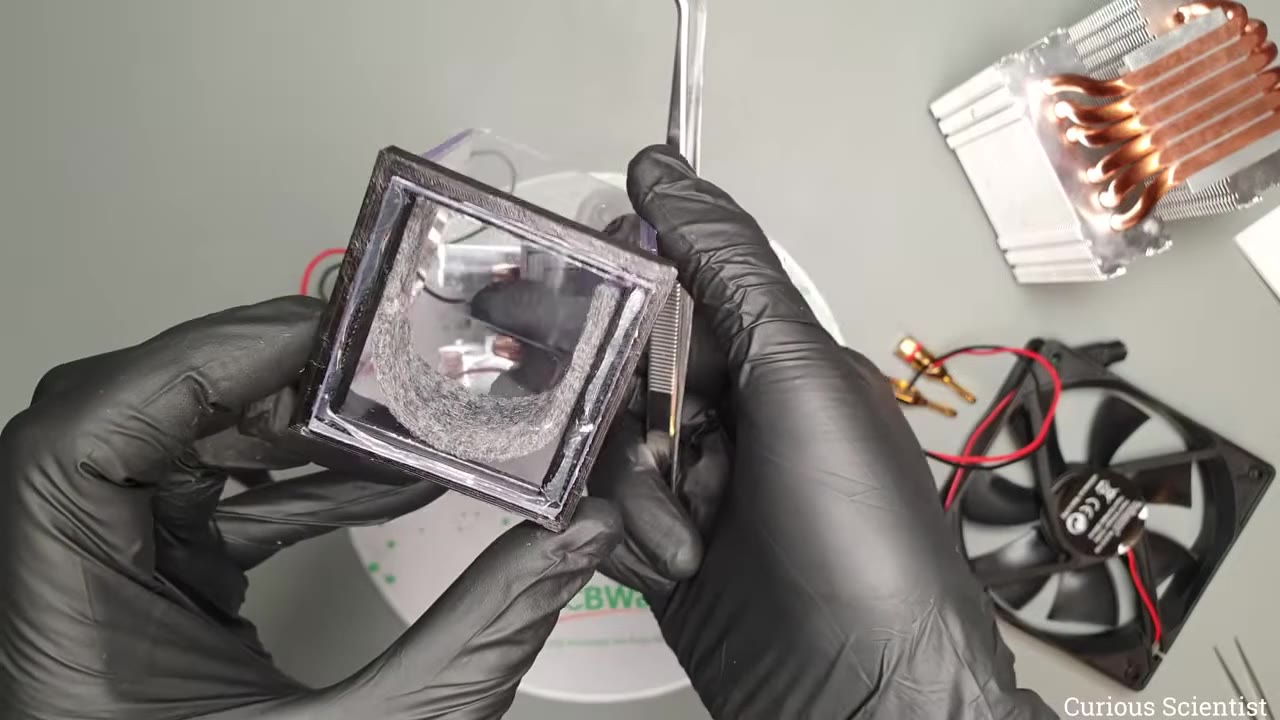

  • 2 mm clear plastic sheets for the wallsFind
  • 3D-printed clamp partsFind
  • Black nitrile or similar for the floorFind
  • Felt soaked in 99% isopropyl alcoholFind
  • Strong side light (a bike headlight works)Find

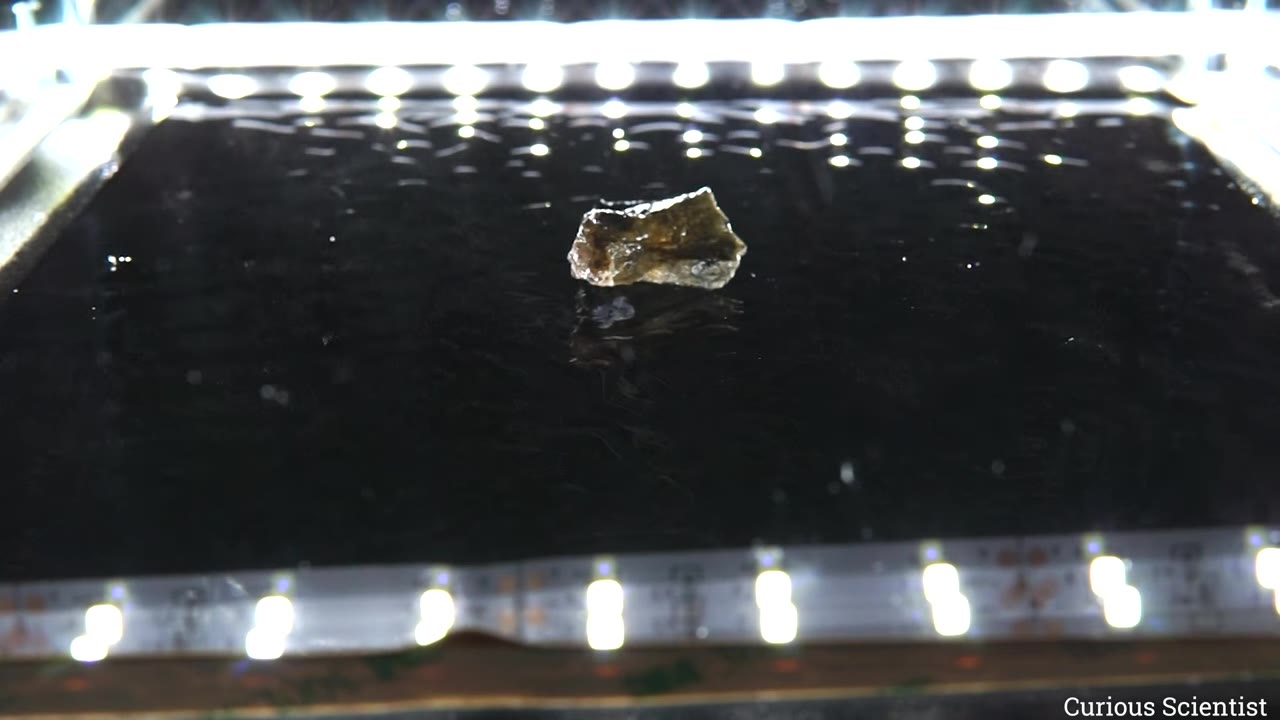

  • Legal radioactive check sourceFind

BUILDS OF THE WEEK

Five open-source builds worth your weekend, every week.

Checked like this one: what’s really in the repo, what it costs, how hard it is. One email, unsubscribe anytime.

Can I build this?

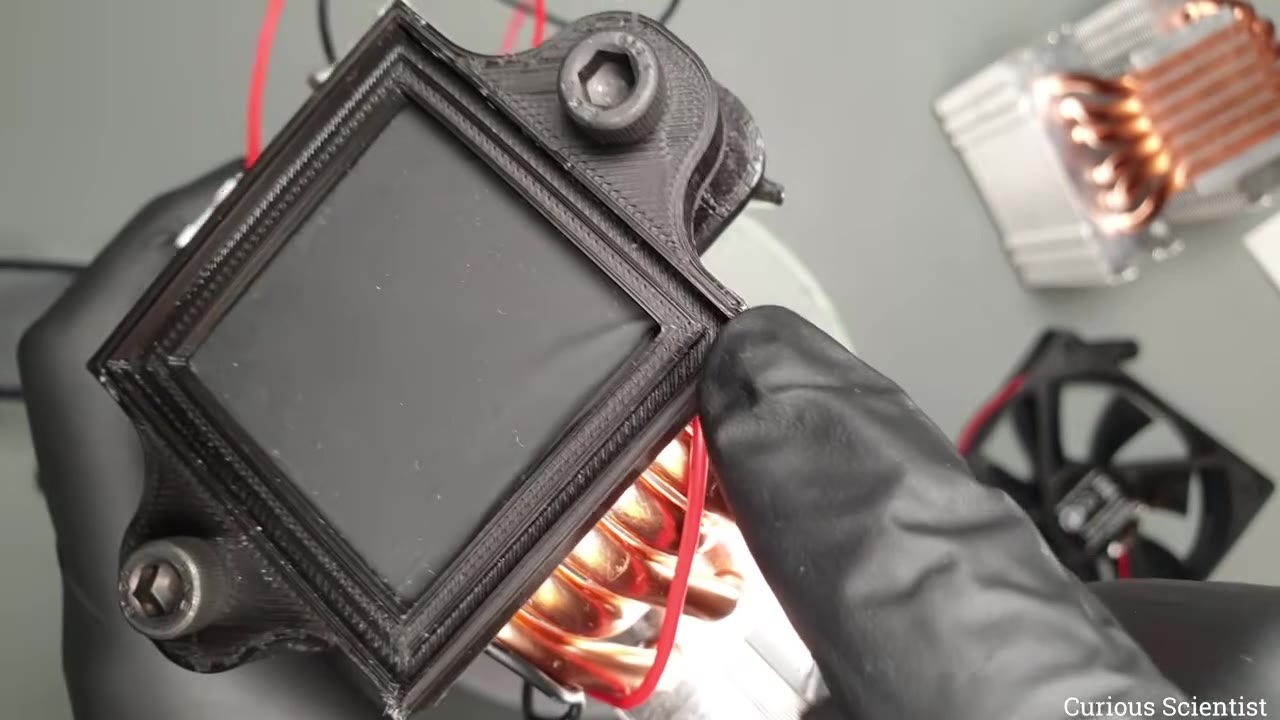

PrintCurious Scientist build: two small parts — the stack clamp and the top frame (files on his blog). Frank Prins build: chamber base and mounting parts (files on Thingiverse).
BuyTwo Peltier modules (TEC12715 for the bottom, TEC12703 for the top), an air CPU cooler with fan, 12 V 30 A power supply plus an adjustable DC-DC converter (SZBK07) for the top Peltier, thermal grease, 2 mm clear plastic sheets for the walls, the 3D-printed clamp parts, black nitrile or similar for the floor, felt soaked in 99% isopropyl alcohol, a strong side light (a bike headlight works), and a legal radioactive check source (americium-241 from a smoke detector or a thorium mineral)
ToolsSoldering iron, multimeter, hand tools for assembly, 3D printer if building the Prins version
SkillsIntermediate: you need to wire and power two stacked Peltiers correctly (reverse polarity will heat instead of cool, and the top one needs its own lower voltage), mount them flat with thermal grease, and seal a small chamber. No code.
TimeA weekend if you have all parts and some Peltier experience; a weekend-plus if this is your first time tuning vapor density or stacking coolers.
CostCurious Scientist's small build needs only a 12 V power supply, a CPU cooler, two Peltier modules, a DC-DC converter and small parts, so it can be done cheaply, especially with parts you already have. Prins's larger water-cooled version lists about 504 euros of new parts.
SafetyIsopropyl alcohol is flammable; the chamber is sealed during operation, but assembly and refilling must be done away from ignition sources. Radioactive check sources such as americium-241 from smoke detectors need real caution: the creator calls them hazardous, alpha emitters are most dangerous if ingested, so never open a source, handle it with tools or gloves, wash your hands and keep it away from children. Background radiation alone already gives you tracks. Verify the legality of any source in your jurisdiction. The bottom Peltier draws a lot of current; use an adequate power supply and check connections.
