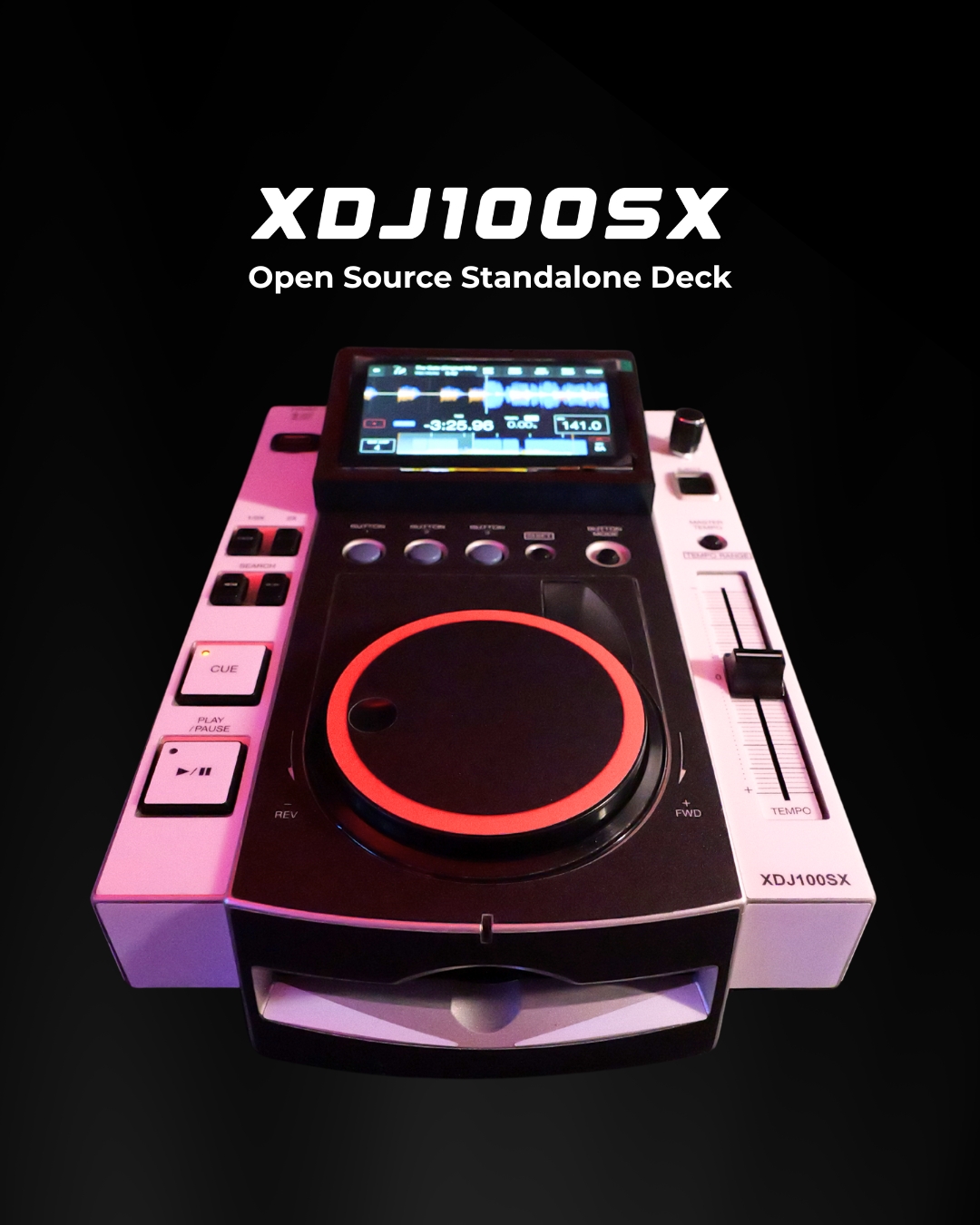

YOU CAN TURN AN OLD PIONEER DJ DECK INTO A MODERN CDJ
Marc Monka gave a worn Pioneer CDJ-100S a touchscreen, colour waveforms and hot cues, then made it run Mixxx without a laptop.
by Marc Monka
AudioOpen-hardware
Built withRaspberry PiTeensy3D printing
- difficulty
- ●●●●○
- time
- a weekend-plus
- license
- GPL-3.0
- repo
- repo ACTIVE260 stars
●●●●○ · a weekend-plus · GPL-3.0 · 260 stars · repo ACTIVE
WHAT YOU’LL NEED
Jump to section
COMPAREE VERDICT
This is a complete, well-documented retrofit that turns a discontinued Pioneer CDJ-100S into a modern standalone DJ player. You get a 5-inch touchscreen with waveforms, hot cues, loop rolls and beat jumps mapped onto the original buttons, while the original jog wheel, buttons and pitch fader stay in use through a Teensy LC. It runs Mixxx, the open-source DJ software, with a custom skin, and needs no laptop once built. The 44-page manual is thorough, a ready Raspberry Pi 3B+ image is provided, and the 3D files are included. The hardest part is not the build itself - it is finding a CDJ-100S in working condition at a price that makes this worthwhile, and the repo does not help you source one. If you already own the deck or can find one cheaply, this is a weekend-plus project for someone comfortable with soldering, flashing a Teensy and setting up a Raspberry Pi. The one thing most likely to go wrong is buying a CDJ-100S with a faulty jog wheel or pitch fader - test those before you commit.
IN THE REPO
GOOD TO KNOW
- —The repo has Teensy firmware, STL files for the touchscreen mount and printed skin, the Mixxx skin and MIDI mapping, install scripts, a Raspberry Pi image and a 44-page PDF build manual with the full parts list.
- —Code is GPL-3.0, documentation and 3D models are CC BY-SA 4.0 — both allow commercial use with share-alike conditions.
- —There is no custom PCB: you gut a used CDJ-100S (CD unit, main PCB and power supply come out), wire its front-panel controls to a Teensy LC and fit a Raspberry Pi 3B+ with a 5-inch touchscreen.
- —The repo does not state the price of a used CDJ-100S and that market varies widely, so no total build cost is given.
- —The manual is detailed but assumes familiarity with soldering, firmware flashing and Raspberry Pi setup.
- —Actively maintained: the creator released a new Raspberry Pi image with updates in June 2026.
Parts to buy
10 itemsFrom our check of the build. Exact quantities and part numbers are in the creator’s BOM.
Can I build this?
Build at your own risk. Projects involve tools, electronics and sometimes mains voltage — follow the creator’s safety notes.
Videos
XDJ100SX: Open Source Standalone Deck BREAKDOWN (Marc Monka)
Marc Monka's own breakdown of the XDJ100SX: what was changed inside the CDJ-100S and how the standalone deck works.
More builds like this
All projectsGallery
Start here
Navigation into the creator’s own docs — we don’t rewrite the guide, we route you to the source.
- 1.Read the 44-page build manual (It has the complete parts list, wiring diagrams and step-by-step assembly instructions)
- 2.Source a working CDJ-100S(Test the jog wheel and pitch fader before buying — if either is faulty, the build will not work as intended)
- 3.Flash the Raspberry Pi image and Teensy firmware (The Pi image is pre-configured with Mixxx and the custom skin; the Teensy firmware turns the deck's original buttons, jog wheel and pitch fader into MIDI messages for Mixxx)
Resources
Documentation, files and community threads for this build — we link straight to the original sources and never rehost the creator’s files.
KNOWN ISSUES
- The price and availability of a working CDJ-100S is the single biggest unknown — if you overpay for the donor deck, the project stops making sense financially.
- The manual assumes you know how to solder, flash firmware and configure a Raspberry Pi. If you are learning those skills for the first time, add time.
- The touchscreen mount is 3D-printed. If you do not have printer access, that is an extra step or cost.
- Use the current Raspberry Pi image (June 2026) — it already includes the latest updates (USB network share, USB eject, safer power-off); older images and guides from earlier versions miss these.
- Join the project's Discord early (linked from the README) — that is where the creator and other builders help with problems, alongside GitHub issues.
- Unplug the CDJ-100S before you open it: you test it on mains first, then remove its original power supply - the finished deck runs from a 5 V 3 A adapter.
Can I use a different Pioneer CDJ model?
No. The firmware and wiring are specific to the CDJ-100S. Other models have different boards and button layouts.
Do I need to keep the original CD mechanism?
No. The manual has you remove the CD unit, the main PCB and the original power supply; the jog wheel, buttons and pitch fader stay and are wired to a Teensy LC.
Can I use this with a laptop and Traktor or Serato?
The build is designed to run Mixxx standalone. You could theoretically connect it as a MIDI controller, but that is not what the repo supports.
What happens if the CDJ-100S jog wheel is worn or scratchy?
The build relies on the original jog wheel encoder. If it is faulty, the deck will not perform reliably — test it before you buy.
Community builds
No community builds yet — be the first, we feature the best ones.
Discussion1
FROM THE COMPAREE TEAM
The CDJ-100S has been discontinued for years, so the price of the donor deck is the entire decision. What would you pay for a working CDJ-100S before this stops making sense?
Marc Monka
Marc Monka is a DJ and maker who wanted modern features on a classic Pioneer CDJ without buying a flagship deck. He documented the retrofit and released the firmware, 3D files and a 44-page manual so others could do the same.
