MIT PRINTED A HINGE THAT FEELS ITS OWN BENDING - AND NO SENSOR GETS ADDED

A printed hinge that knows how far it bent, with no sensor added to it afterwards.

by Xiang Chang, Haiyang Yan, Stefanie Mueller and Jiaji Li

FULL CAD BOM FIRMWARE DOCS

Open-hardwareRobotics

Built withSTM32

difficulty
●●●●●
time
a serious weekend-plus
license
license not specified
repo
repo 0 stars

WHAT YOU’LL NEED

1
Jump to section

COMPAREE VERDICT

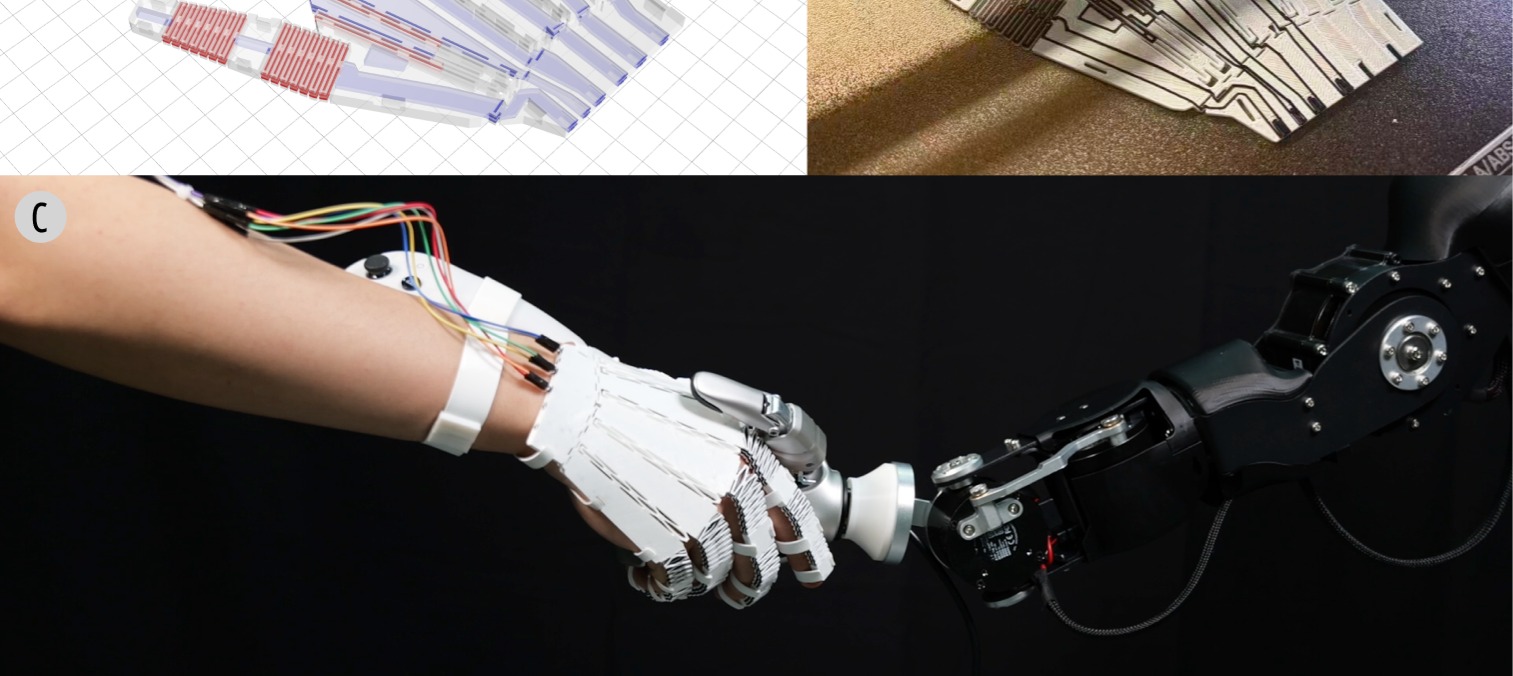

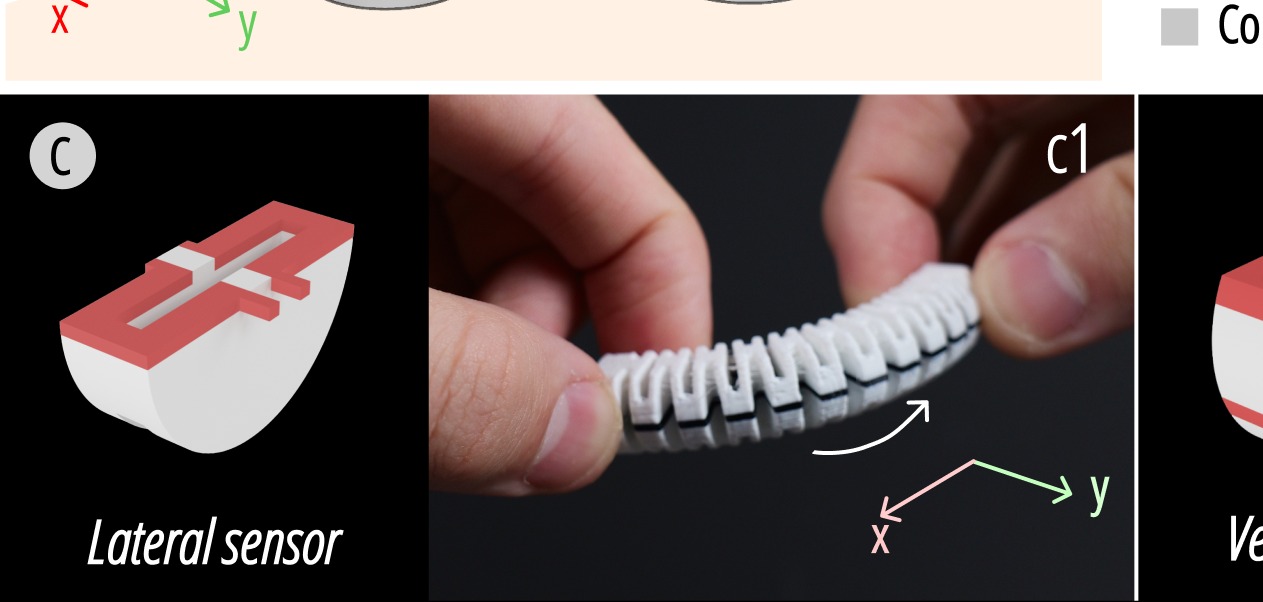

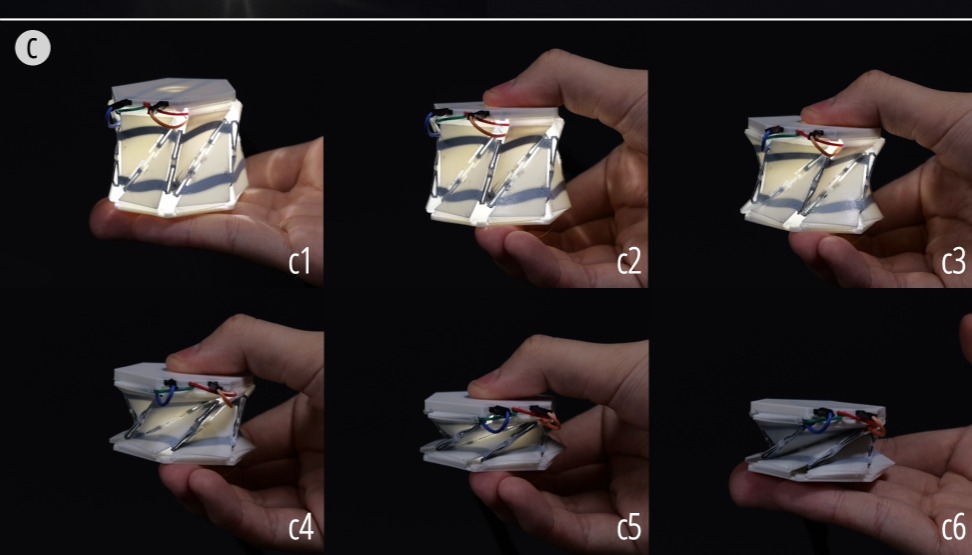

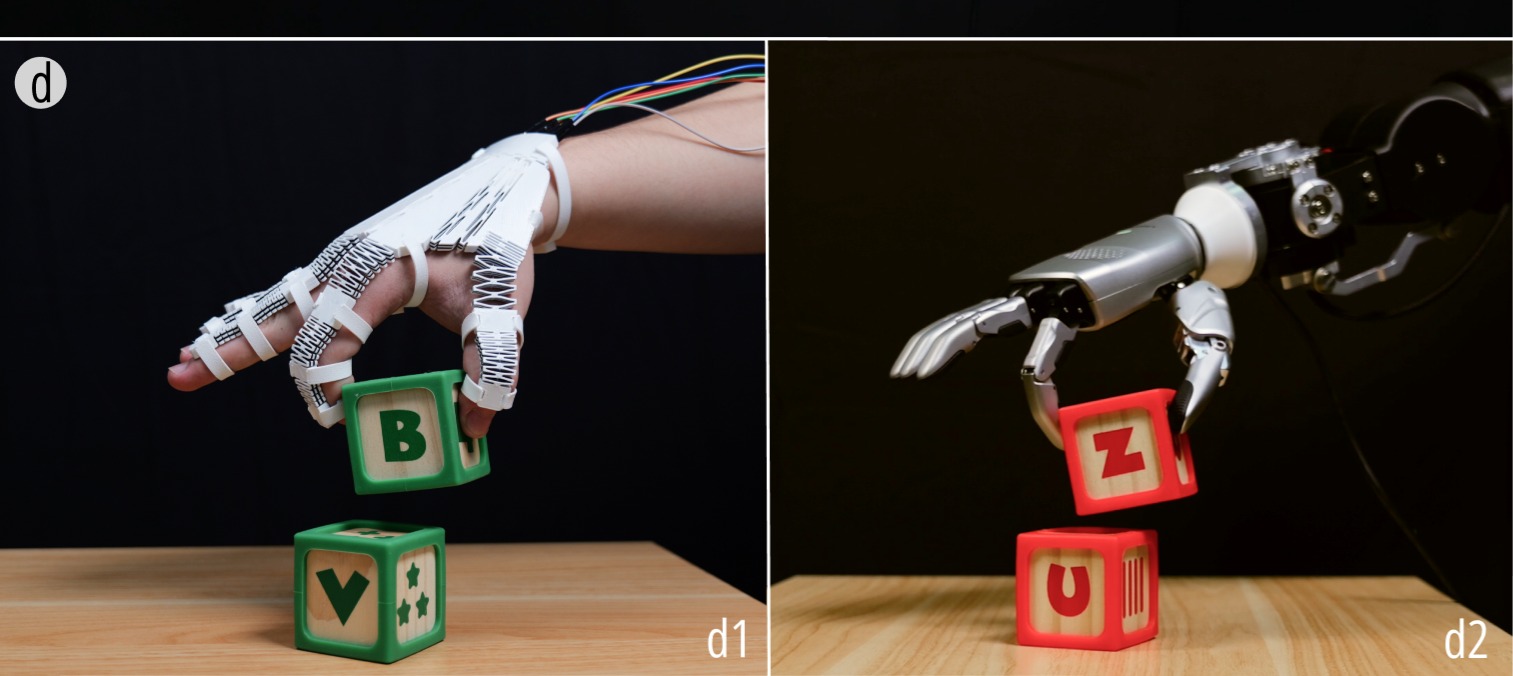

X-Hinges is one of those ideas that makes you stop and think: the hinge is the sensor, and it all comes out of the printer in one piece. The team (MIT CSAIL with Tianjin and Zhejiang universities) co-prints two conductive filaments of very different conductivity inside a soft TPU body, so when the hinge bends, twists or compresses, the sensing elements deform and their resistance changes; a precision readout board and data-driven models turn that into motion. Each of the three degrees of freedom gets its own sensing element. The paper demonstrates a teleoperation glove driving a robotic hand, an orca-shaped game controller, a Kresling origami lamp, and a tactile matrix that recognises fruit. The hard truth: this is a research publication accepted to UIST 2026, not a ready-to-build project. There are no files, no repository, no firmware and no tool download. The paper gives you the structure, the materials, the readout architecture and the design approach, but you would be rebuilding the geometry, the electronics and the training pipeline yourself. You also need a multi-material FDM printer that can handle two conductive filaments plus TPU in a single job. If you have that setup and the patience to work from a paper, this is a genuinely novel sensing method. If you are hoping for a quick weekend print, this is the wrong project.

GOOD TO KNOW

  • —This is a research paper accepted to UIST 2026, not a released product. The paper (arXiv 2609.11077) describes the method in full detail.
  • —No repository, STLs, Gerber files or firmware have been published.
  • —The paper includes the design tool architecture and sensor model equations, but the tool itself is not released.
  • —Readout hardware is custom: a voltage follower, transimpedance amplifier and ADS1256 ADC, 4 channels per board (scalable to 32) at 50 Hz. The paper shows the circuit composition and a board photo, but no board files are released.
  • —Requires a consumer multi-material FDM printer (the paper names the Prusa XL, Bambu H2D and Snapmaker U1) co-printing two conductive filaments with non-conductive TPU.
  • —The paper is published under CC BY-NC-ND 4.0; no hardware licence exists because no files are released. Contact the authors before replicating commercially.

Parts to buy

5 items

From our check of the build. Exact quantities and part numbers are in the creator’s BOM.

  • Two conductive filaments of different conductivitiesFind
  • Non-conductive TPUFind
  • ADS1256 ADCFind
  • STM32 microcontrollerFind
  • Transimpedance amplifier componentsFind

BUILDS OF THE WEEK

Five open-source builds worth your weekend, every week.

Checked like this one: what’s really in the repo, what it costs, how hard it is. One email, unsubscribe anytime.

Can I build this?

PrintNothing available — you would be reverse-engineering hinge geometry and toolpaths from the paper's figures and descriptions.
BuyTwo conductive filaments of different conductivities, non-conductive TPU, ADS1256 ADC, STM32 microcontroller, transimpedance amplifier components. No BOM provided.
ToolsMulti-material FDM printer capable of co-printing at least three materials in one job, custom readout board assembly tools, oscilloscope or multimeter for calibration.
SkillsAdvanced: multi-material FDM printing, analog sensing circuit design, resistance calibration, reading academic papers and translating sensor models into working hardware.
TimeA serious weekend-plus — you are building the entire stack from a paper, not following a tutorial.
Cost$$ — dominated by the multi-material printer capability and the custom readout board components. The paper does not list part costs.
SafetyNone beyond ordinary electronics care. The sensing is passive resistance measurement at low voltage.

Build at your own risk. Projects involve tools, electronics and sometimes mains voltage — follow the creator’s safety notes.

More builds like this

All projects
OpenTOFLidar: a scanning laser rangefinder built from scratch for about 94 dollars in partsRoboticsElectronBot - a tiny EVE-inspired desktop robot with a screen for a faceRoboticsBerkeley Humanoid Lite: an open-source humanoid robot whose actuators are 3D printedRobotics

Gallery

arxiv.org
arxiv.org
arxiv.org
arxiv.org
arxiv.org
arxiv.org

Start here

Navigation into the creator’s own docs — we don’t rewrite the guide, we route you to the source.

  1. 1.Read the paper (The only resource. It describes the sensor model, design approach, and readout hardware in full academic detail.)
  2. 2.Check if the tool or files are released(No repository or tool download has been published yet. Contact the authors if you want to replicate this.)
  3. 3.Confirm your printer can handle it(You need a multi-material FDM machine for two conductive filaments plus non-conductive TPU — the authors name the Prusa XL, Bambu H2D and Snapmaker U1.)

KNOWN ISSUES

  • The paper is not a released project. No files, no repository, no firmware, no tool download. You are reverse-engineering from figures and equations.
  • Requires a multi-material FDM printer that can handle three filaments in one job — the authors name the Prusa XL, Bambu H2D and Snapmaker U1. A single-material printer will not do it.
  • The readout board is custom. The paper includes its complete schematics (Appendix A.5, Figure 22) and a block diagram, but no board layout or Gerber files — you will lay out and build the board yourself.
  • Two conductive filaments with very different resistivities are required — the paper uses ABC3D ESD Grade TPU (about 1.23 × 10⁴ Ω·cm) for sensing and a roughly 8.75 Ω·cm filament for traces. Substitutes will change the signal.
  • Calibration is non-trivial. The authors turn raw resistance into motion with data-driven regression models trained on many recorded samples, so you would need to collect your own training data for your prints and build that pipeline yourself.
  • The paper is CC BY-NC-ND 4.0 and no design files carry their own licence — if you plan to commercialise or publicly share derivatives, contact the authors first.

Can I print this on my Prusa or Bambu?

Yes, if it is a multi-material model. The authors say the three-material print (two conductive filaments plus non-conductive TPU) works on any consumer multi-material FDM printer and name the Prusa XL, Bambu H2D and Snapmaker U1. Single-nozzle machines without a tool changer or multi-material system are out.

Where are the STL files?

There are none yet. This is a research paper accepted to UIST 2026, not a released project. The paper describes the method in full, but you are reconstructing the geometry from figures and text.

What conductive filament should I buy?

The paper uses ABC3D ESD Grade conductive TPU (about 1.23 × 10⁴ Ω·cm) for the sensing elements and a much more conductive filament (about 8.75 Ω·cm) for the traces, inside a non-conductive TPU body. Match those resistivities as closely as you can.

Is the design tool available?

No. The paper describes the tool's architecture and how it generates sensing layouts, but the tool itself is not released. You would be implementing it from the description.

Can I use this commercially?

Not without asking. The paper is published under CC BY-NC-ND 4.0 and no design files or separate hardware licence have been released, so contact the authors before commercialising anything based on it.

Community builds

No community builds yet — be the first, we feature the best ones.

Discussion1

FROM THE COMPAREE TEAM

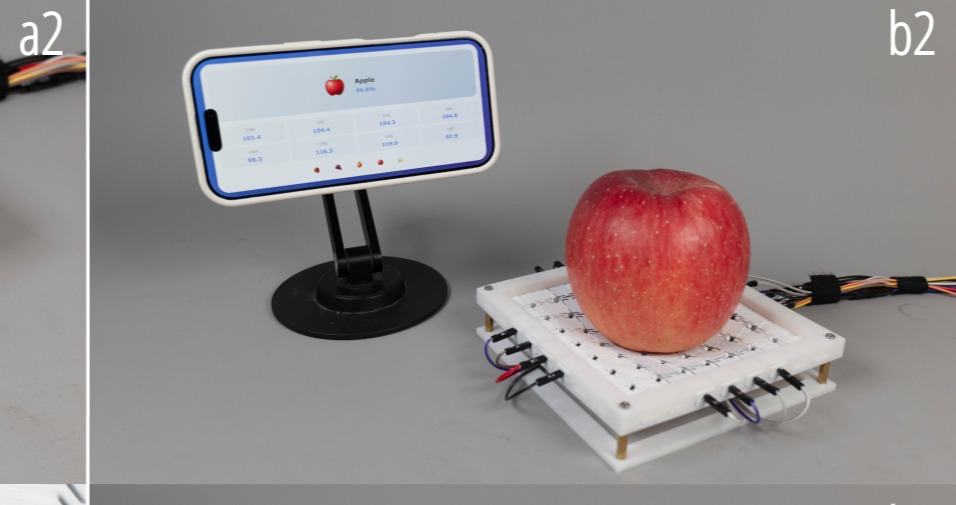

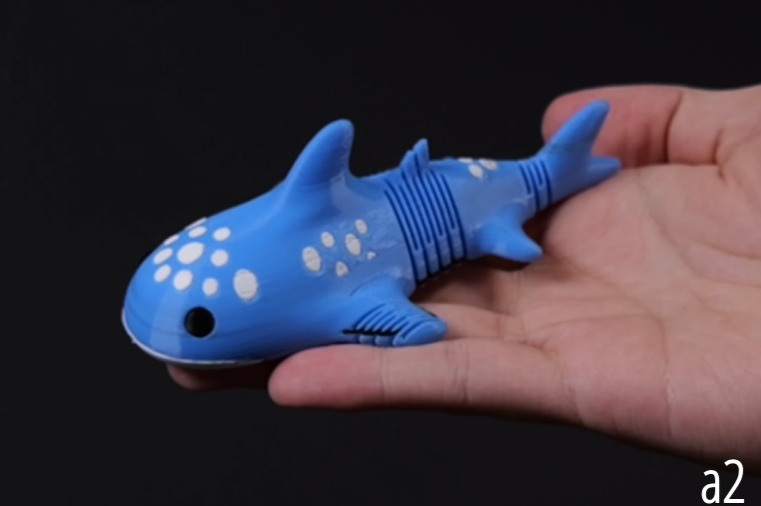

The paper shows a printed orca as a game controller and a tactile pad that knows when you put an apple on it — both from resistance changes in deforming traces, no discrete sensors. If you had access to the design tool and a multi-material printer, what would you embed sensing into first?
