SPOTMICRO: PRINT YOUR OWN SPOT-STYLE ROBOT DOG

The DIY answer to Boston Dynamics' Spot — a printable four-legged robot that walks and even does SLAM with a small lidar.

by mike4192 (with Deok-yeon Kim's frame)

FULL CAD BOM FIRMWARE DOCS

Robotics3D-printing

difficulty
●●●●○
time
several weekends
license
MIT
repo
repo STABLE2,092 stars

WHAT YOU’LL NEED

  • Electronic parts — full list with part numbers in the repo BOM
  • Dev board / microcontroller — runs the project firmware
  • Soldering kit + basic tools — one-time buy, serves every future build

Partner

Reach your Pi from anywhere — Remote desktop to the machine running this build — no port forwarding, works right from the browser.Try Getscreen.me
Videos
1

COMPAREE VERDICT

SpotMicro is the beloved DIY take on Boston Dynamics' Spot — a printable quadruped that walks with a real gait and can even do SLAM with a small RPLidar. It's a rite of passage in the robot-dog community. Be clear on how it's split, though: this repo is the software (ROS control, kinematics), and the body STL is deliberately not here — the README sends you to Deok-yeon Kim's original Thingiverse model (KDY0523) for the printable parts. So you're combining a Thingiverse print with this control stack. It's an older ROS Kinetic project with some sharp edges (a required swap file, no built-in command limits), but the payoff — your own walking, mapping robot dog — is huge. Budget band $$ and several weekends.

NOT IN THE REPO

  • —The body STL is NOT in this repo — the README points you to the Thingiverse model (KDY0523)
  • —This repo is the SOFTWARE (ROS Kinetic, C++/Python nodes); the repo STL is only for RVIZ
  • —BOM is in the README; kinematics live in separate submodules
  • —It's Ubuntu 16.04 + ROS Kinetic only
  • —CAD is 3D-printable STL, not editable STEP — the community's known gap; the SpotMicroESP32 fork carries the only public STEP files (a few mod parts).

Can I build this?

Printthe body from the Thingiverse model (KDY0523) — not from this repo
Buya Raspberry Pi 3B, a PCA9685 driver, 12× PDI-HV5523MG servos, a 2S LiPo, an RPLidar A1
Tools3D printer, hex drivers, soldering
SkillsROS (Kinetic), Linux, servo calibration patience
Timeseveral weekends
Costband $$ — current prices: README BOM
Safety12 geared servos with no built-in limits — calibrate carefully to avoid damaging the hardware

Build at your own risk. Projects involve tools, electronics and sometimes mains voltage — follow the creator’s safety notes.

A desktop 3D printer that prints in full colorPartner · Kickstarter
A desktop 3D printer that prints in full color

HeyGears G1: 10M+ colors and transparent parts in one print, plus UV printing on flat objects. Figures, parts and labels — no painting.

See how it prints

Videos

Raspberry Pi Spot Micro Quadruped Project2:56

The creator's demo of the trot gait — the project's main video.

Gallery

SpotMicro walking (trot gait)mike4192 (MIT)
SLAM with an RPLidar A1mike4192 (MIT)

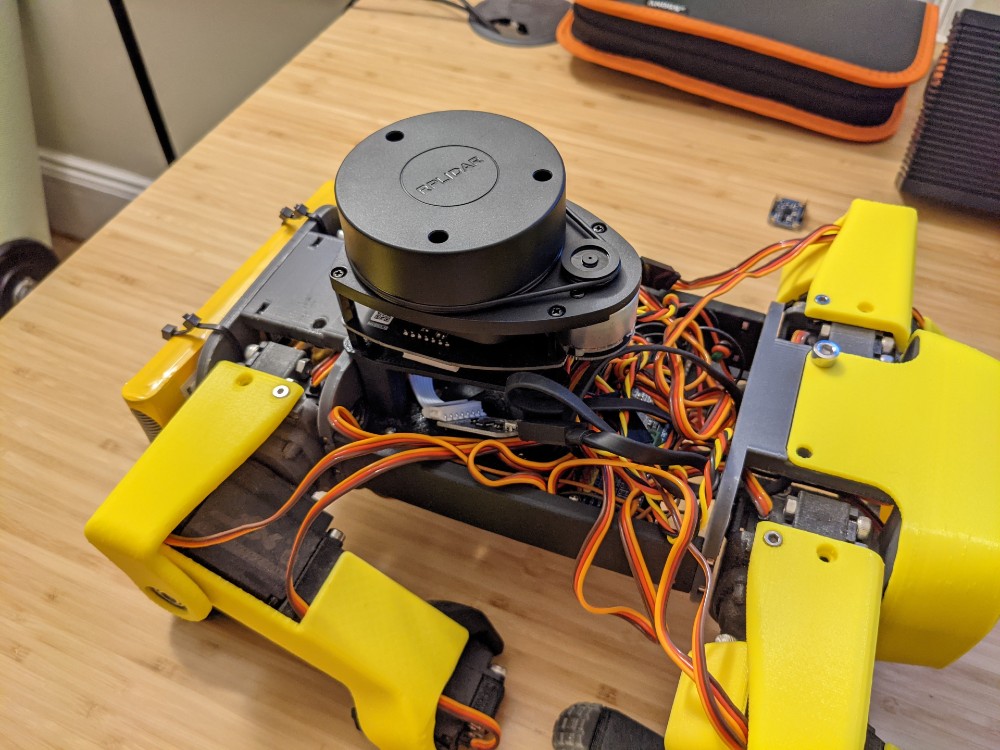

Top view of the buildmike4192 (MIT)

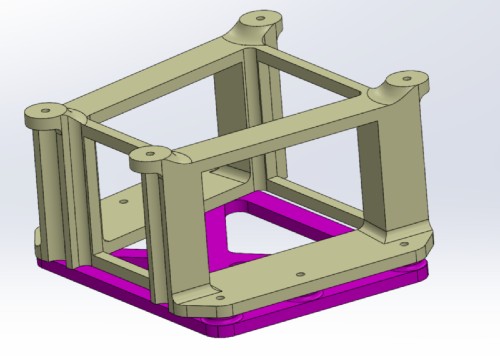

The lidar mountmike4192 (MIT)
