YOU CAN BUILD A RIG THAT PULLS GLASS FIBRE THINNER THAN A HUMAN HAIR, FOR 556 EUROS

A bench rig that pulls telecom fibre down to 8 micrometres in seven seconds, using a plasma arc and two linear stages you can buy on AliExpress.

by L.F. Granados-Zambrano, J.P. Korterik, J.M. Estudillo-Ayala, R. Rojas Laguna, D. Jauregui-Vazquez, H.L. Offerhaus, J.A. Alvarez-Chavez

FULL CAD BOM FIRMWARE DOCS

ScienceOpen-hardware

Built withArduino

difficulty
●●●●●
time
a weekend-plus
license
GNU GPL
repo
repo FINISHED0 stars
1
Jump to section

COMPAREE VERDICT

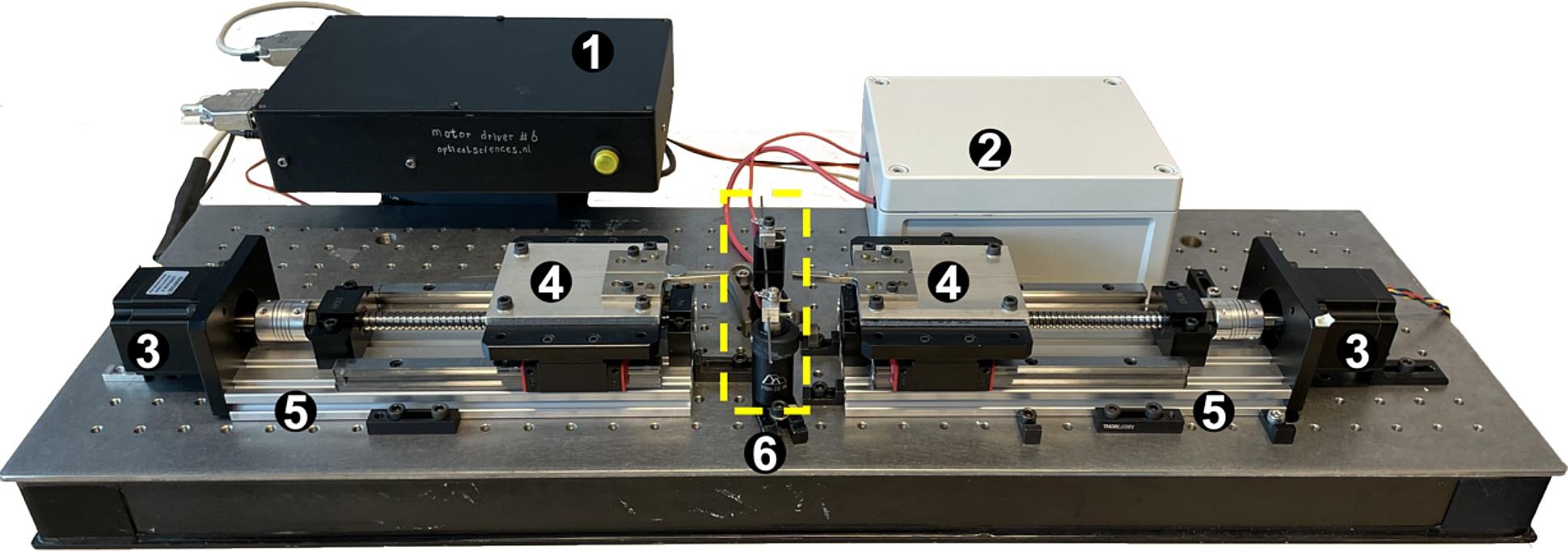

This is a published research instrument, not a weekend Arduino project. It stretches standard single-mode telecom fibre down to an 8-micrometre waist by heating it with a plasma arc while two NEMA 23 ball-screw stages pull it. The reason to build it is speed: in the paper's comparison table a ceramic microheater takes about 4 minutes per taper, flame brushing about 3 and an electric arc about 1; this rig takes 0.12 minutes, roughly 7 seconds. A 5 mm taper took 3.6 seconds and a 10 mm taper 7.3 seconds, and the coefficient of variation across 10 tapers was 7.3 percent. The parts come from AliExpress, Amazon and standard suppliers, plus a few small machined aluminium parts, for 555.94 euros in total. The paper is the build guide: it gives the wiring, the stage layout (100 mm apart), the electrode gap (6 mm) and a table of pulling settings. You are working with high voltage, though: a ZVS Tesla-coil flyback driver produces more than 10 kV across the tungsten electrodes, and the paper insists on grounding everything to mains earth and isolating the HV electrode post. If you are setting up a photonics lab and need tapered fibre for sensors, this is a documented, working design from a real optics group. If you have never handled bare fibre or high voltage, start with something simpler.

GOOD TO KNOW

  • —Design files are on OSF (DOI 10.17605/OSF.IO/VUW4J), the article is open access in HardwareX (DOI 10.1016/j.ohx.2024.e00578, CC BY 4.0).
  • —The Arduino code is GNU GPL v3, the process video CC BY 4.0 and the circuit diagram under a CERN licence; commercial use is allowed under their terms.
  • —Bill of materials is complete with supplier part numbers and a total of 555.94 euros.
  • —Arduino code is provided; there is a wiring diagram and a fabrication parameter table.
  • —The paper is the documentation — there is no separate build guide or forum.
  • —The paper says the tungsten electrodes have prolonged durability but gives no figure for how many tapers they last.

Parts to buy

11 items

From our check of the build. Exact quantities and part numbers are in the creator’s BOM.

  • Two NEMA 23 ball-screw linear modules with motorsFind
  • Arduino UNOFind
  • Two TB6600 stepper driversFind
  • ZVS Tesla-coil flyback driver boardFind
  • Two tungsten TIG electrodesFind
  • Two 12 V XP Power suppliesFind
  • 2-channel relay boardFind
  • Neodymium magnetsFind
  • Machined aluminium V-groovesFind
  • Bases and electrode holdersFind
  • Aluminium and a plastic enclosureFind

BUILDS OF THE WEEK

Five open-source builds worth your weekend, every week.

Checked like this one: what’s really in the repo, what it costs, how hard it is. One email, unsubscribe anytime.

Can I build this?

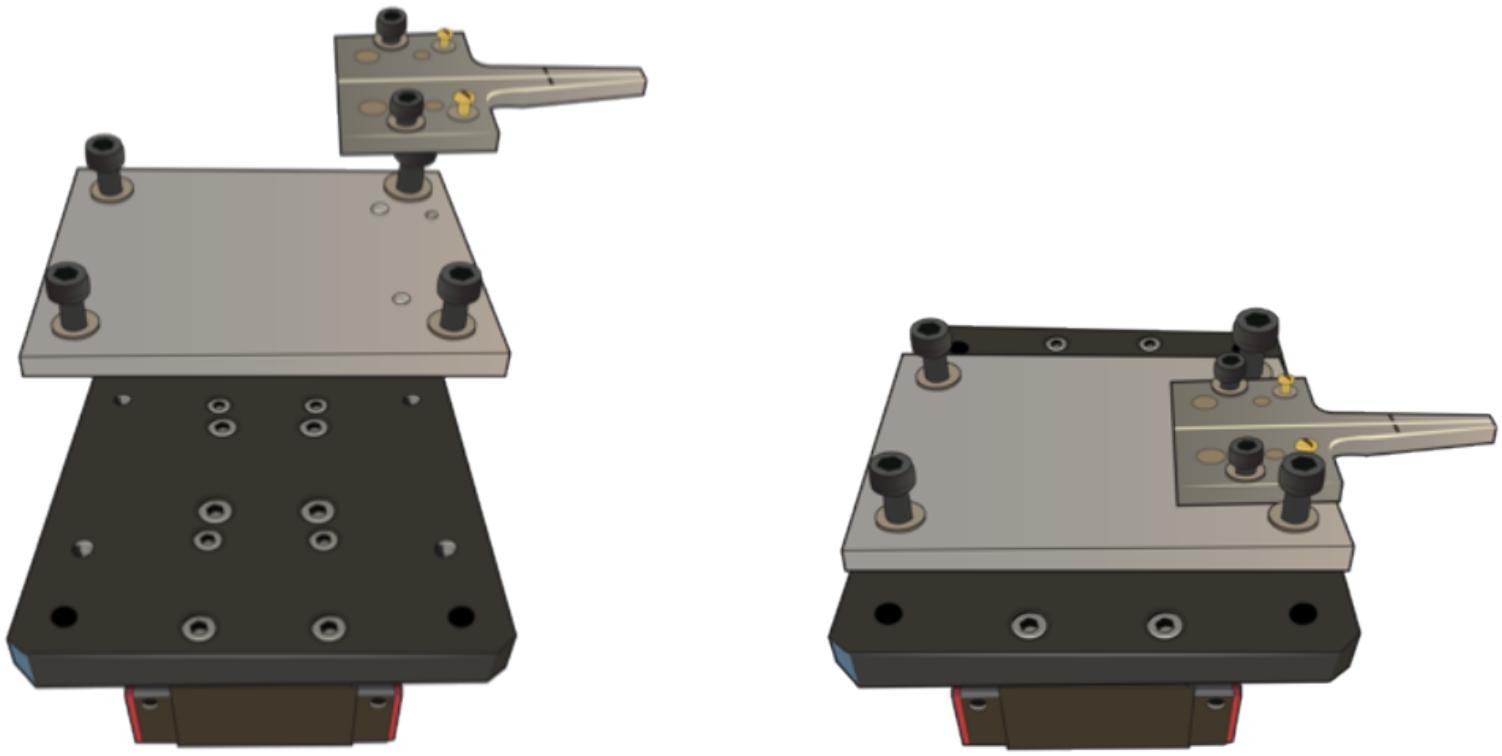

PrintNothing — the V-grooves, bases and electrode holders are small machined aluminium parts (drawings on OSF).
BuyTwo NEMA 23 ball-screw linear modules with motors, an Arduino UNO, two TB6600 stepper drivers, a ZVS Tesla-coil flyback driver board, two tungsten TIG electrodes, two 12 V XP Power supplies, a 2-channel relay board, neodymium magnets, machined aluminium V-grooves, bases and electrode holders, an aluminium and a plastic enclosure, and connectors: full table with suppliers in the paper
ToolsSoldering iron, multimeter, drill for the enclosures, an optical table (recommended) with optical posts, a fibre stripper, and a microscope camera to check the taper
SkillsYou need to be comfortable with high-voltage electronics, stepper motor tuning, and optical fibre handling — this is not a first project with any of those things
TimeA weekend to assemble and wire, then another day or two of calibration and test tapers before you get repeatable results
Cost$$$ — dominated by the two linear ball-screw stages, which are more than half the total
SafetyHigh voltage from the Tesla coil driver — it takes a 12 to 36 V supply and generates more than 10 kV at the electrodes. Follow the paper's wiring diagram, ground it to mains earth, work on an insulated bench and power off before touching anything. Glass fibre fragments are sharp and nearly invisible — work over a tray and do not brush the bench with bare hands.

Build at your own risk. Projects involve tools, electronics and sometimes mains voltage — follow the creator’s safety notes.

More builds like this

All projects

Gallery

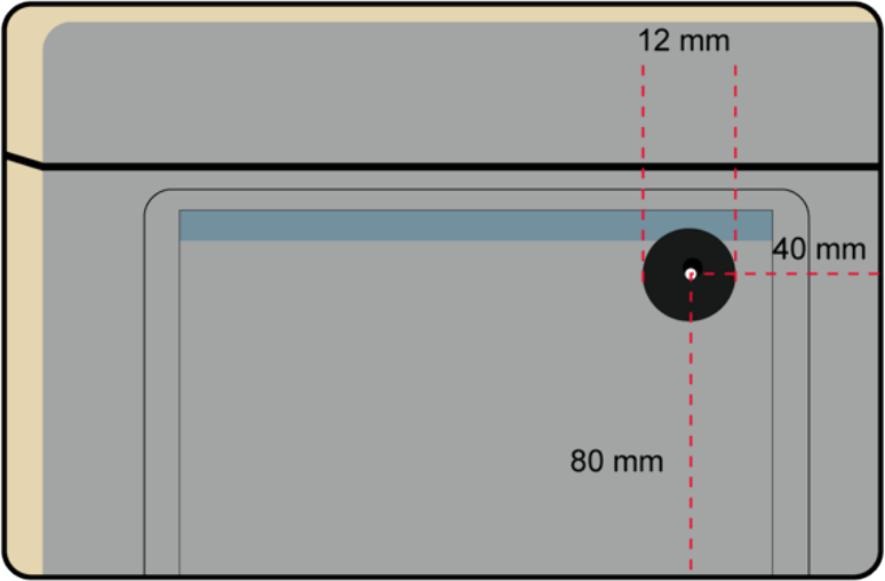

sciencedirect.com

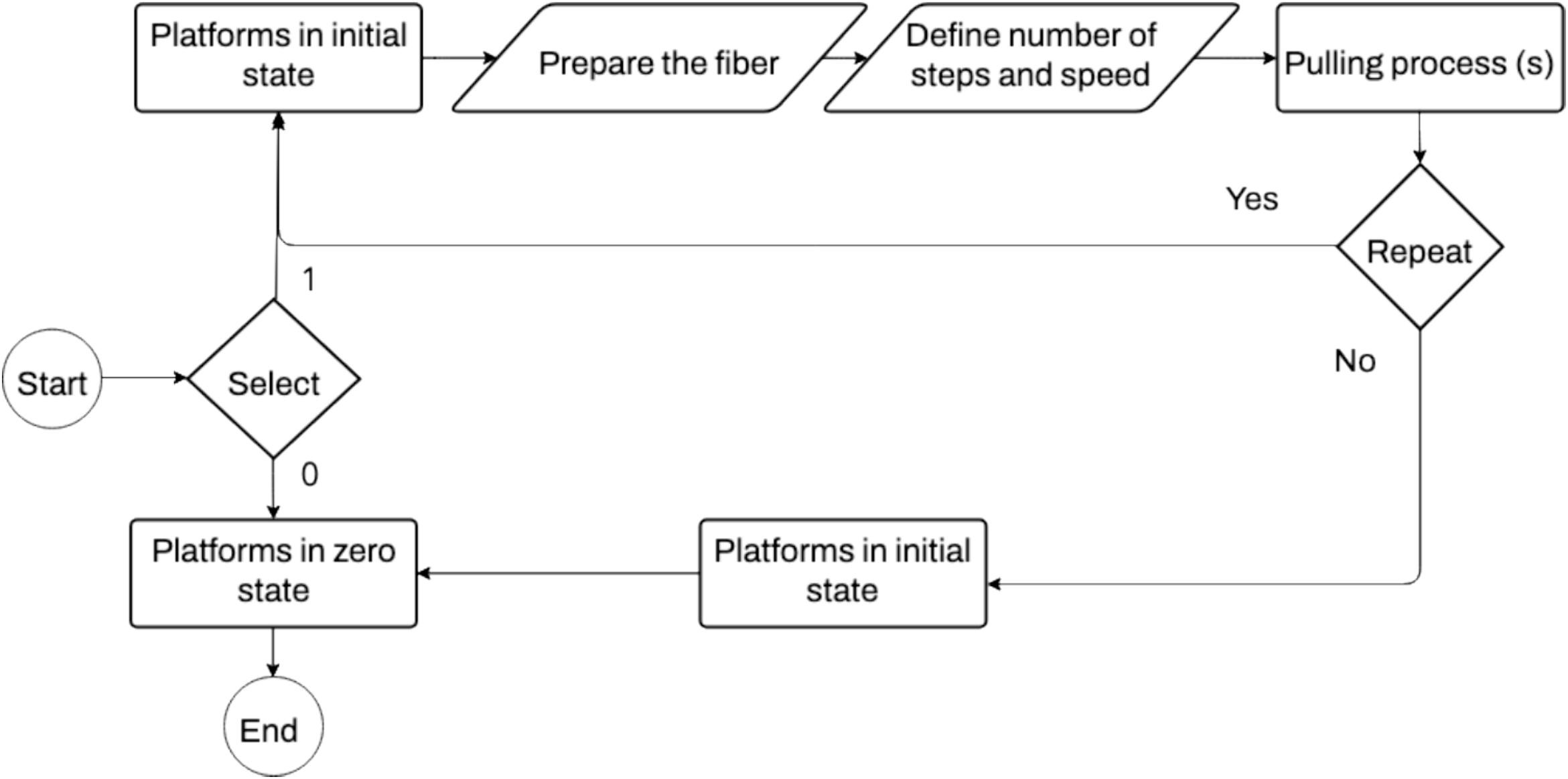

sciencedirect.com

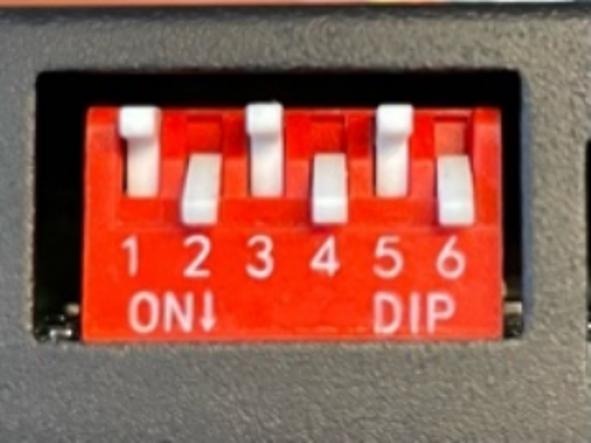

sciencedirect.com

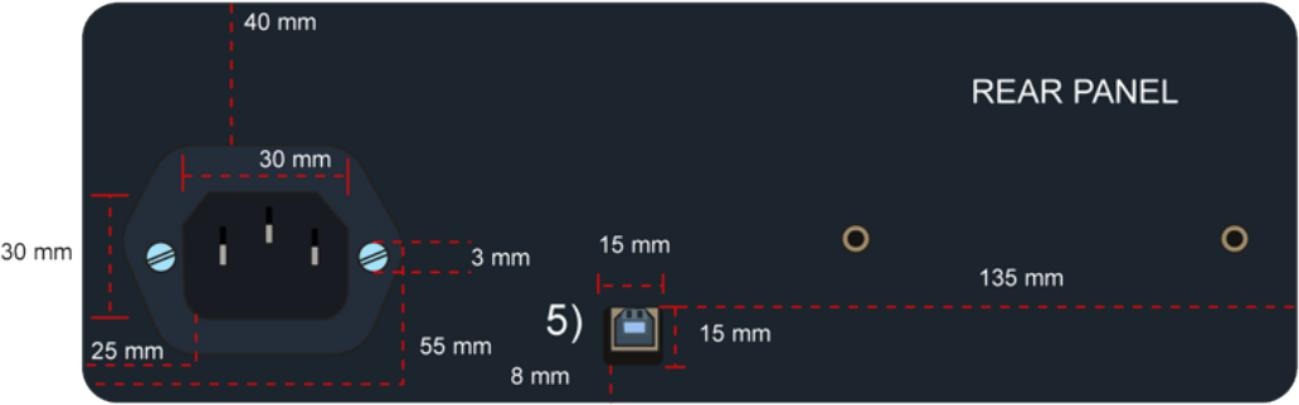

sciencedirect.com
sciencedirect.com
sciencedirect.com
sciencedirect.com
sciencedirect.com

Start here

Navigation into the creator’s own docs — we don’t rewrite the guide, we route you to the source.

  1. 1.Read the HardwareX article in full (The article is the build guide, with step-by-step assembly and operating instructions; videos are in the OSF repository.)
  2. 2.Download the design files from OSF (Arduino code, circuit diagram, machining drawings for the small aluminium parts, and process videos.)
  3. 3.Source the two NEMA 23 linear ball-screw modules first(They are the longest lead-time item and more than half the cost.)

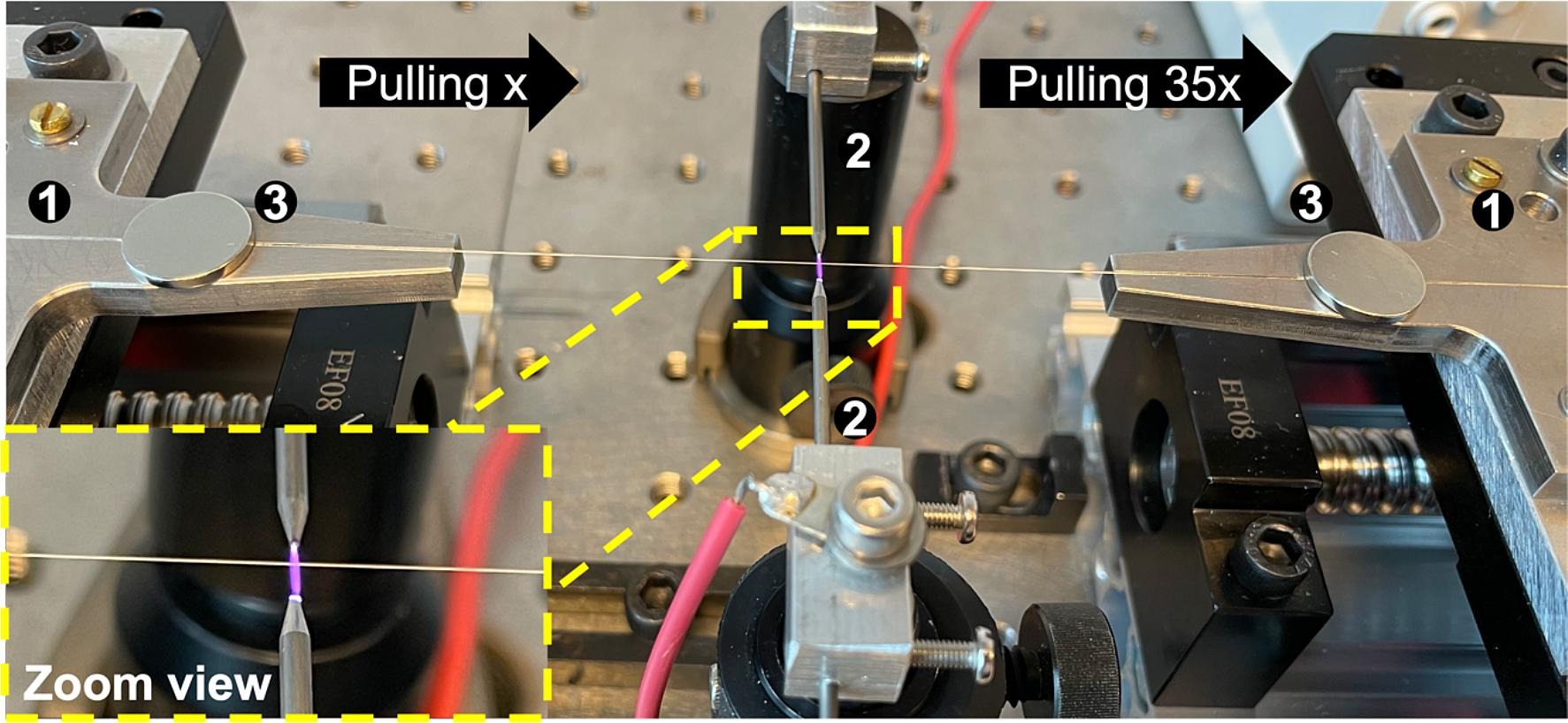

  4. 4.Learn fibre preparation: stripping the coating(Strip the coating from the section you will taper (see the fibre preparation video on OSF), then hold the bare fibre with the neodymium magnets in the V-grooves.)

KNOWN ISSUES

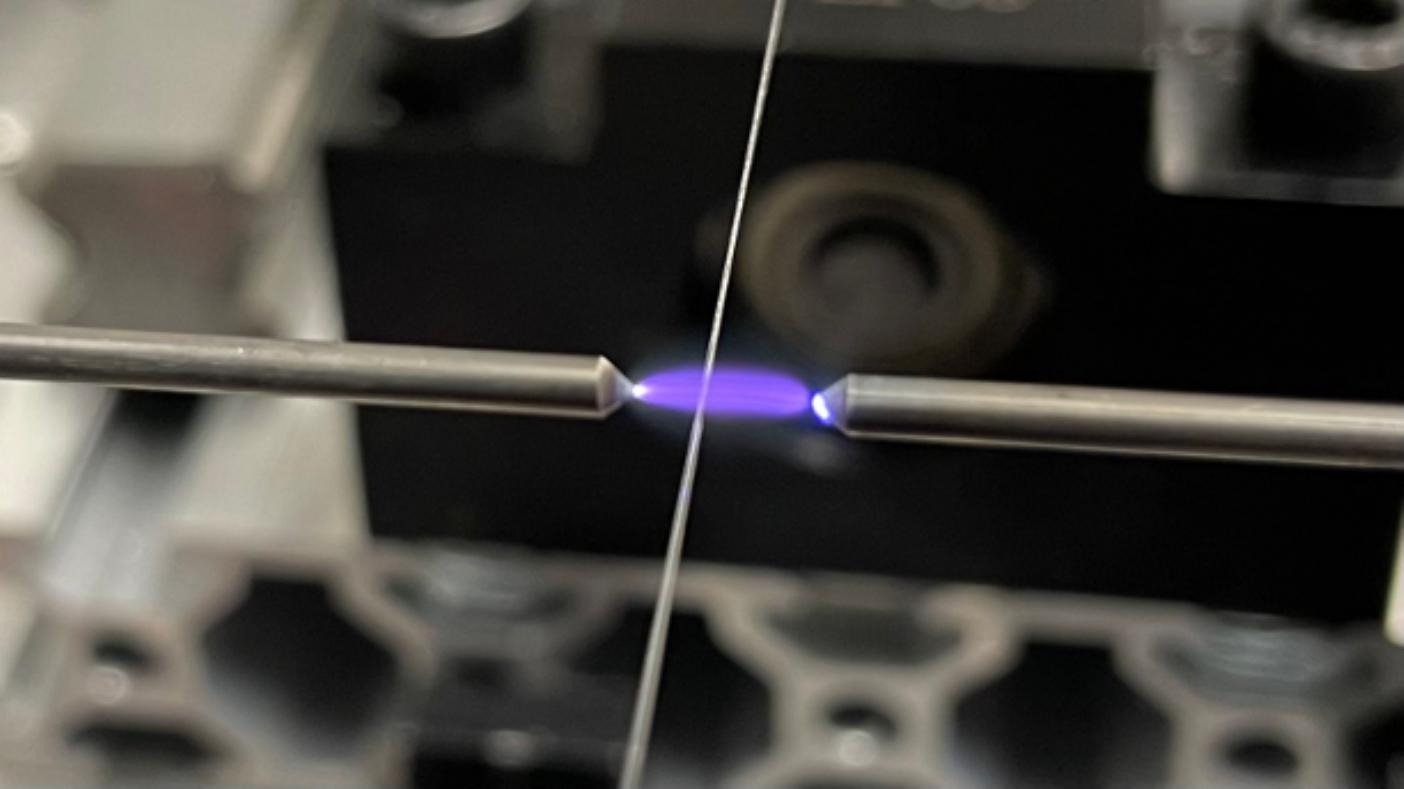

  • Set the electrodes 6 mm apart at the same height as the top of the V-grooves (paper step 7, Fig. 22), and use a piece of fibre to align the gap with the grooves; small misalignments and air currents change the waist.
  • The ZVS Tesla coil driver (12-36 V input) generates >10 kV at the electrodes — follow the paper's wiring diagram exactly, ground it to mains earth, and isolate the HV+ electrode post as described.
  • The paper says the tungsten electrodes resist the discharges well, but it gives no number of tapers per electrode pair; they cost 1.70 euros each, so keep spares.
  • The 7.3 percent repeatability is measured across 10 tapers after calibration — your first few tapers will not hit that number.
  • There is no community forum or build log; if something does not match the paper, you are on your own.
  • If you have never cleaved or handled bare fibre before, this is not the project to learn on — a botched cleave or a snapped taper is immediate and you will not know why it failed.

Can I use a different plasma or arc source?

The paper tested this specific ZVS Tesla coil flyback driver and these tungsten TIG electrodes; a different arc source would need re-characterisation of the heating profile and pulling speed.

What kind of fibre does it work with?

The paper uses standard single-mode fibre (SMF) and does not name a specific type. Other fibre types are not tested, so expect to re-tune the settings.

How do I know the taper waist diameter without an SEM?

The authors measured tapers optically: a machine-vision camera on a 10× microscope objective gives about 0.7 µm per pixel, enough to see an 8 µm waist. A cheap USB microscope will not resolve it reliably; transmission loss is a useful secondary check.

Is there a way to avoid the high-voltage driver?

The plasma arc is what makes it fast. In the paper's Table 1, a ceramic microheater takes about 4 minutes per taper, flame brushing about 3 and an electric arc about 1. All of the fast heat sources involve high voltage or open flame.

Community builds

No community builds yet — be the first, we feature the best ones.

Discussion1

FROM THE COMPAREE TEAM

About seven seconds per taper, versus roughly three minutes for flame brushing or four for a ceramic microheater. What would you use tapered fibre for if you could make it that fast?

CompareeTEAM26d agoedited

Practical notes from our verification: this is a working rig published in HardwareX by optics researchers from the University of Twente and the University of Guanajuato, not a hobby project — the bill of materials is complete with supplier links and totals exactly 555.94 euros as stated, with the two ball-screw linear stages making up 314 euros of that. The Arduino code, circuit diagram and videos of the tapering process and fibre preparation are in the OSF repository, and the paper has the full build instructions. There are no 3D-printed parts: the V-grooves, base and electrode holders are machined aluminium, with drawings in the repository. The tungsten TIG welding electrodes cost 3.40 euros for the pair, but the paper does not say how many tapers you get before they need replacing. The speed advantage is documented in Table 1 of the paper, and the authors report 7.3 percent repeatability across ten tapers — expect test runs and calibration before you match that. Correction (4 October 2026): we re-checked this page line by line against the project's own repository, documentation and videos, and fixed errors in earlier versions.

L.F. Granados-Zambrano, J.P. Korterik, J.M. Estudillo-Ayala, R. Rojas Laguna, D. Jauregui-Vazquez, H.L. Offerhaus, J.A. Alvarez-Chavez

A collaboration between the Optical Sciences Group at the University of Twente (Netherlands), Universidad de Guanajuato and CICESE (Mexico). They published the rig in HardwareX as a low-cost, open alternative for making tapered fibre for sensors.
