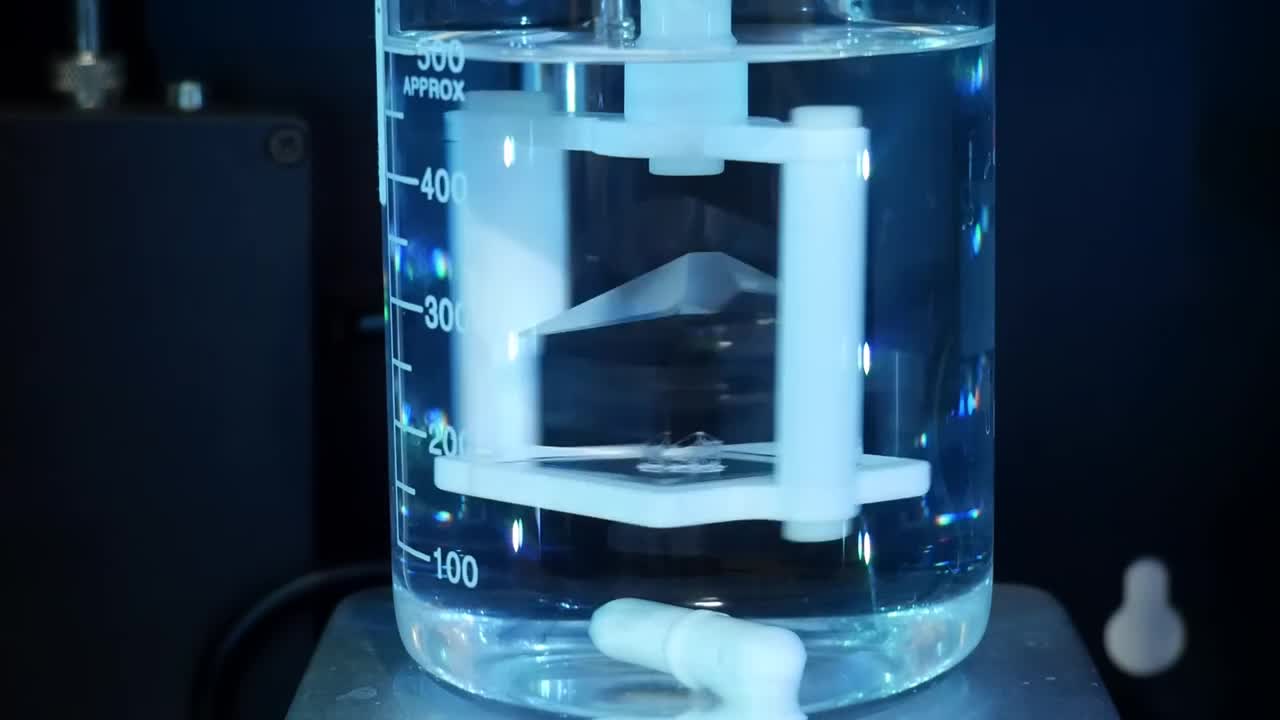

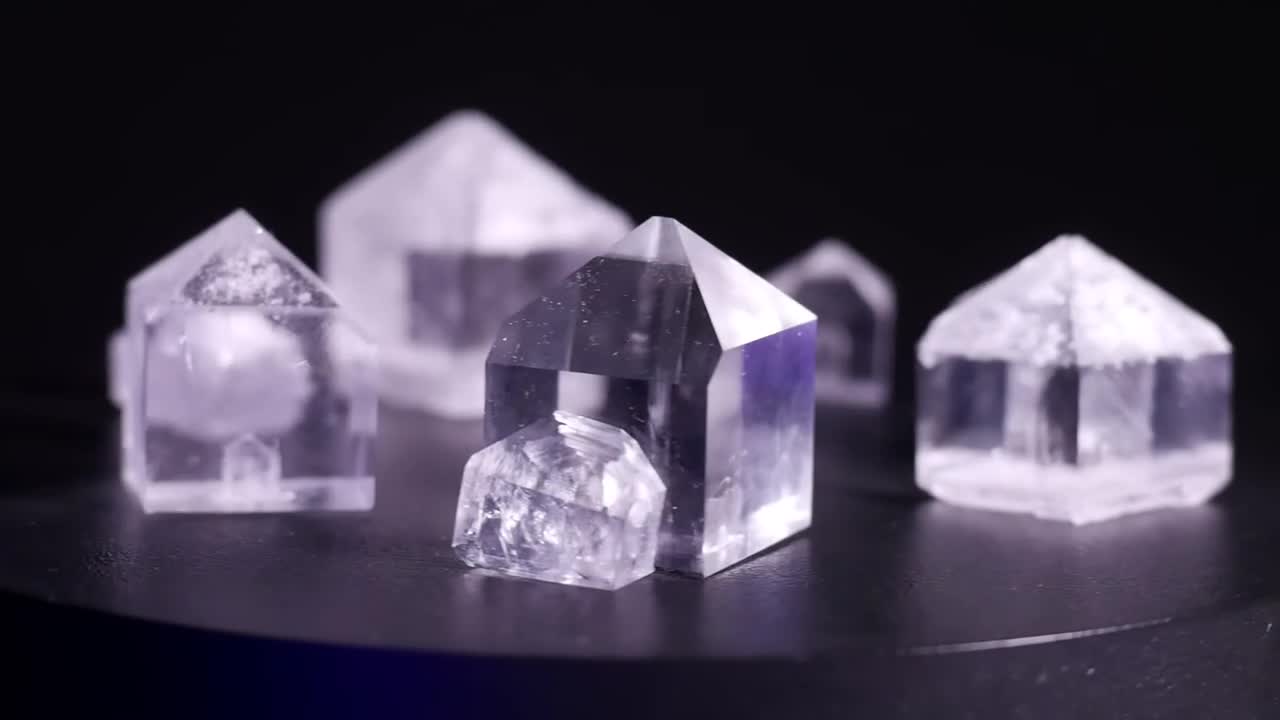

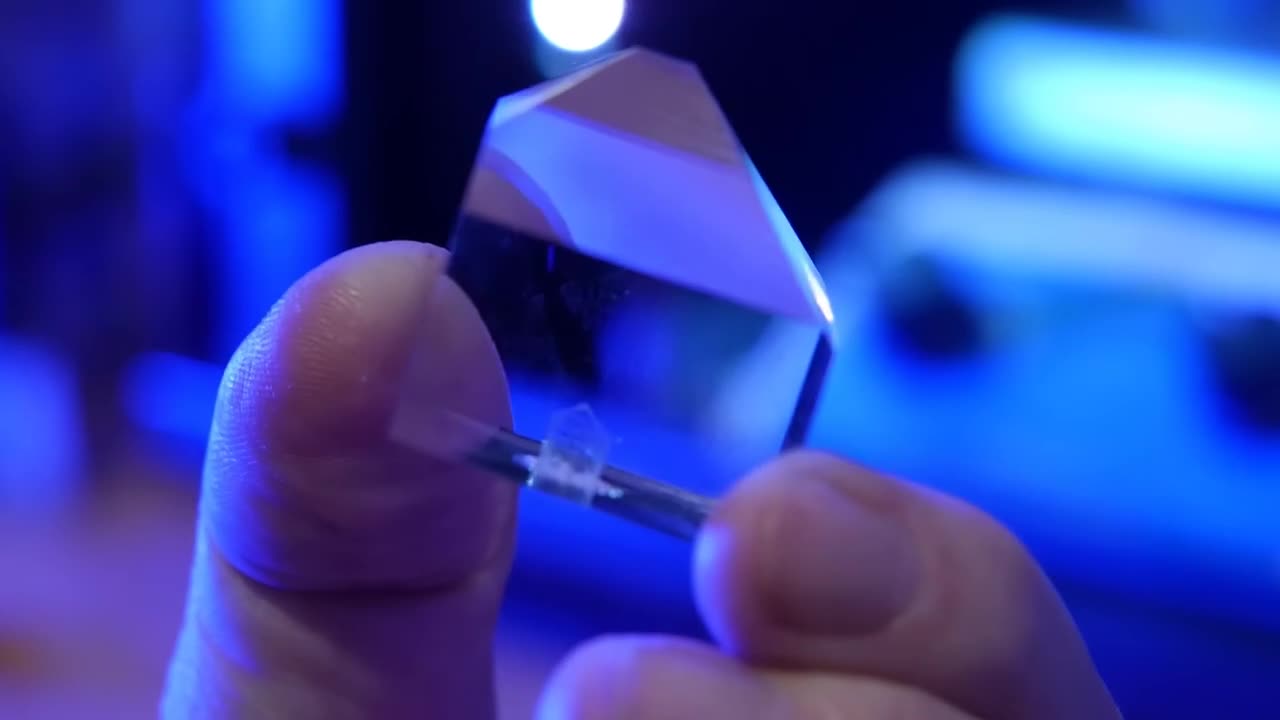

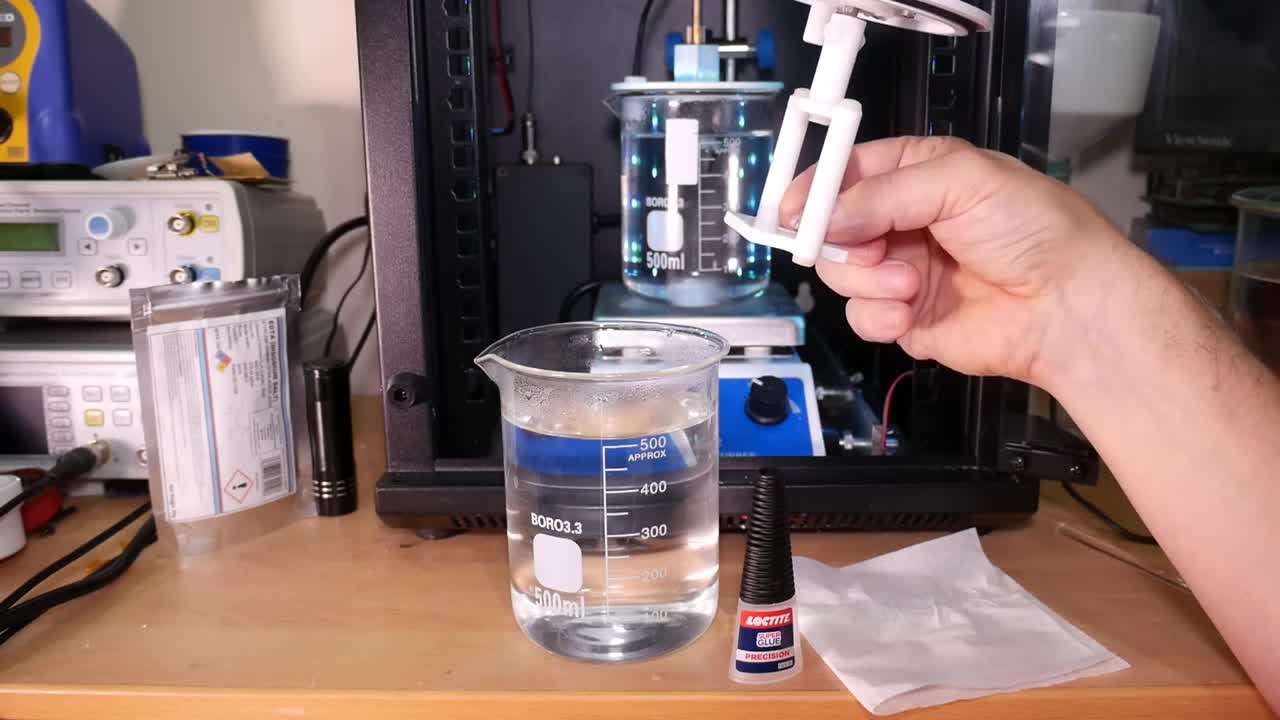

This is a rotating crystalliser that grows KDP (potassium dihydrogen phosphate), a nonlinear optic crystal used to convert laser light to shorter wavelengths. A seed crystal sits on a platform in a supersaturated solution; a stepper on the lid rotates the platform back and forth while the firmware lowers the temperature slowly over about a week. A DS18B20 probe reads the temperature, an SSD1306 OLED shows the status, and a laboratory hot plate is switched on and off through a solid-state relay. Two Arduinos split the work: one runs the stepper, one the temperature control. The repo, published under Apache 2.0, has gerbers for the controller board, LightBurn files for the acrylic cage, both Arduino sketches and Python for logging. The hard part is that the bill of materials section is empty, so you work out the parts list from the board files and the video. The repository calls itself a work in progress, and the roughly one-week figure is the maker's own run, not a specification. If you know what a DS18B20 and AccelStepper are and want a desktop crystal-growing experiment, this is exactly what you need. If you expect a turnkey parts list, you will spend your first evening with the gerbers and the video.

GOOD TO KNOW

  • —Gerber files for the controller board (November 2024 revision) are present.
  • —LightBurn files for the laser-cut acrylic cage and lid are present.
  • —Arduino firmware for both the rotator and the temperature controller is present.
  • —Python scripts for logging and plotting are present.
  • —The bill of materials section in the README is empty — you work from the board files and the video.
