A LASER INTERFEROMETER MEASURES IN NANOMETERS - THIS ONE USES A 12 DOLLARS DIODE AND WINDOW GLASS

An open interferometer that measures like a 17,000 dollars metrology tool, built from window glass and a laser diode you can order today.

by Diffraction Limited (0x23)

FULL CAD BOM FIRMWARE DOCS

WorkshopScience

difficulty
●●●●
time
a weekend-plus
license
MIT
repo
repo ACTIVE141 stars

WHAT YOU’LL NEED

  • 3D printer + filamentprintable parts — files are in the repo
  • Dev board / microcontrollerruns the project firmware

Partner

A portfolio for your buildsShow your work on a clean portfolio site — makers get up to 55% off annual plans.Try Pixpa
1

COMPAREE VERDICT

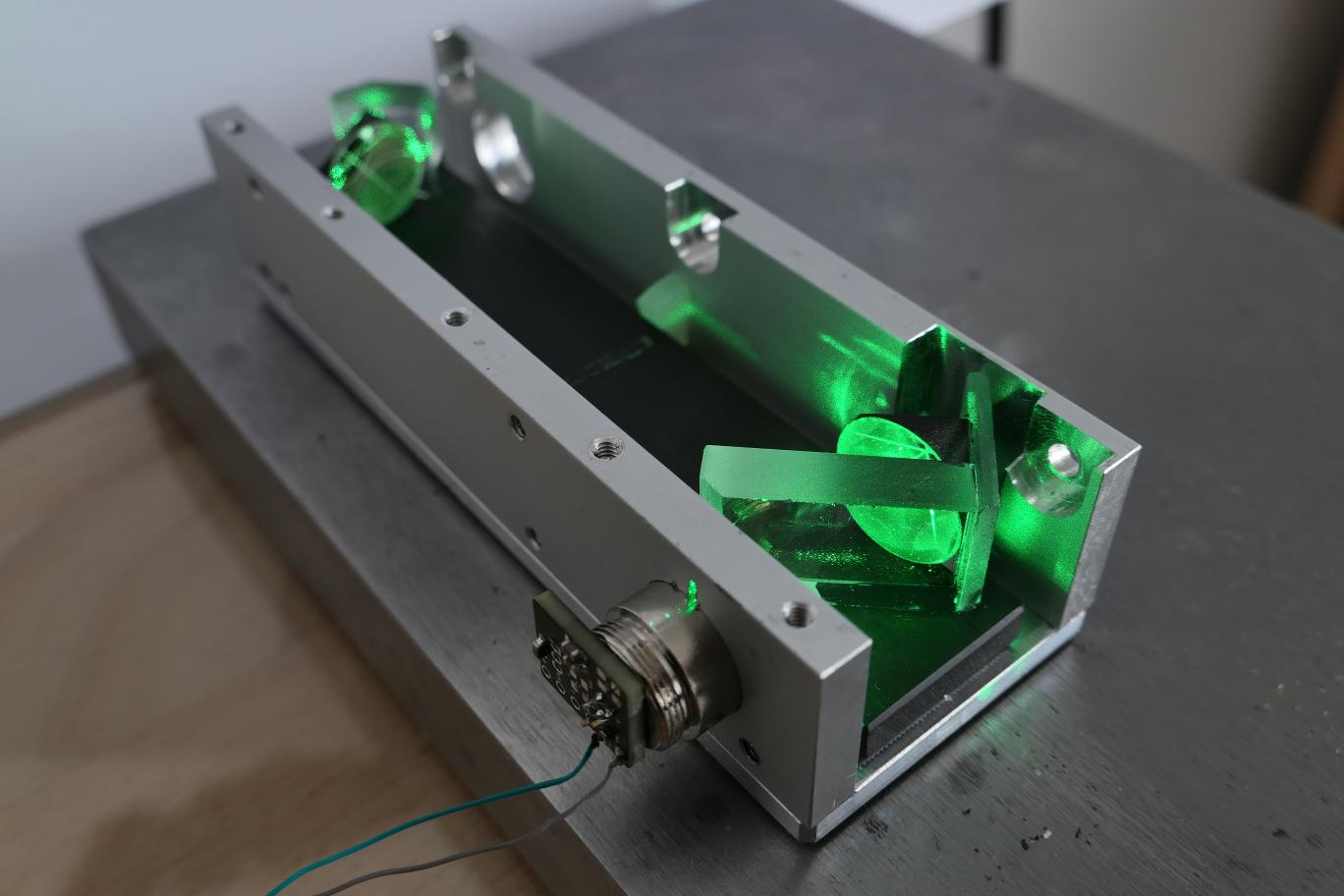

This is a genuinely impressive piece of open hardware: a Michelson interferometer built from parts that cost less than dinner, designed to reach the same nanometer-scale resolution as industrial laser calibration systems that start around 17,000 dollars. The core idea is sound — split a coherent laser beam, bounce the two paths off fixed and moving mirrors, then count the interference fringes as they recombine — and the execution is clever: the beam splitter is ordinary window glass ground optically flat in a 3D-printed jig, the laser is a 12 dollars Osram PLT5 516FA diode, and the photodiode detector costs about 70 cents. The build video walks through the mechanical assembly and optical alignment in detail, and every file is MIT licensed. The honest limitation is that this is explicitly a work-in-progress: the repository has FreeCAD models at Version 5, KiCad sources you export yourself, and no written BOM or step-by-step assembly guide. If you have never aligned optics or worked with coherent light, the video will not be enough. The single thing most likely to go wrong is grinding the glass beam splitter — optical flatness matters and there is no metrology in the repo to check it, so you are working blind until the fringes appear. If you are comfortable designing your own test setup and iterating on alignment, this is a remarkable foundation. If you need a parts list and a procedure, wait for the project to mature.

NOT IN THE REPO

  • FreeCAD mechanical models and KiCad electronics sources are in the repository, marked Version 5.
  • No bill of materials — part callouts are in the video and scattered across README sections.

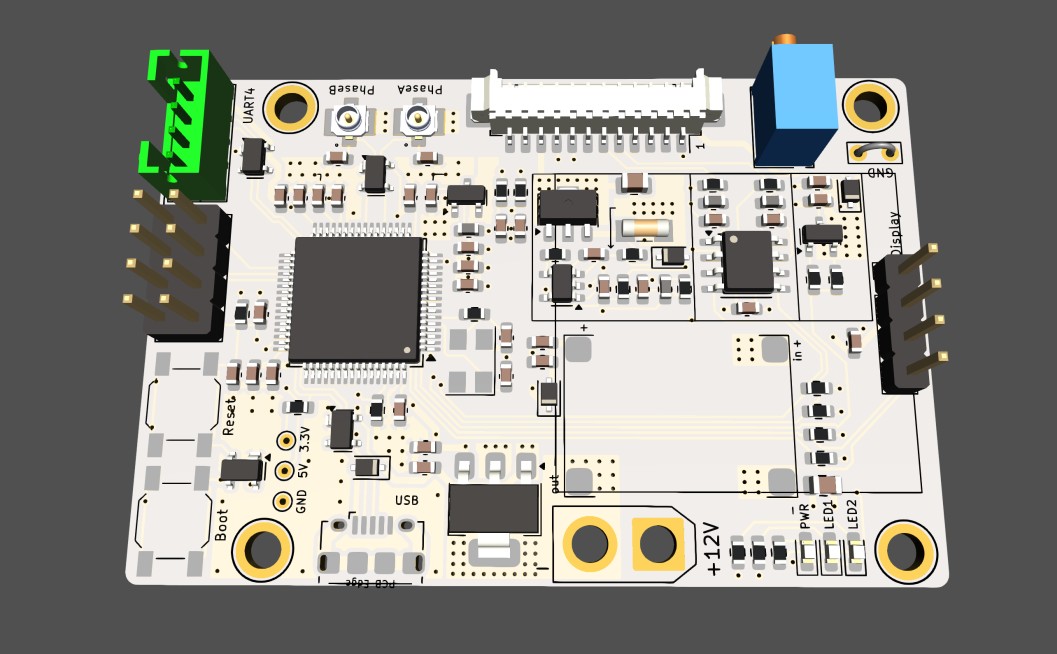

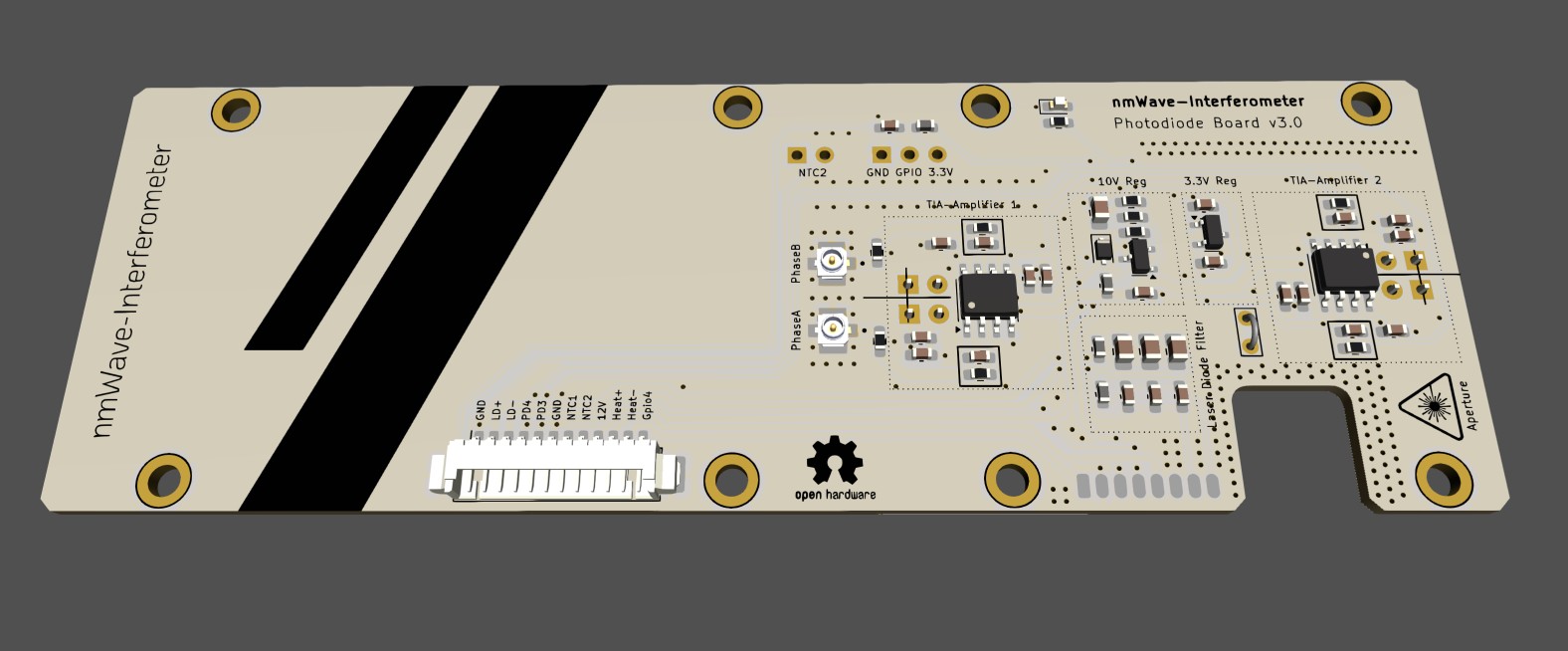

  • KiCad source files only; you export Gerbers yourself.
  • No assembly guide or optical alignment procedure in writing — the build video shows it but there is no text walkthrough.
  • Project is marked work in progress and earlier design revisions exist; do not mix CAD versions.
  • MIT licensed, unrestricted.

Can I build this?

PrintBeam splitter grinding jig, mechanical mounts, and optical alignment fixtures from the FreeCAD models
BuyOsram PLT5 516FA laser diode (~$12), 3mm photodiode (~$0.70), flat window glass, aluminum extrusion or optical breadboard, miscellaneous fasteners and mirrors
ToolsFreeCAD, KiCad, PCB fabrication (or hand-wire the photodiode circuit), optical alignment tools or improvised equivalents, grinding laps and compound for the beam splitter
SkillsIntermediate CAD, basic PCB work, and genuine optical alignment experience — this is not a first optics project
TimeA weekend-plus if you have aligned optics before; much longer if you are learning as you go and iterating on the beam splitter grind
Cost$; the diode and photodiode are cheap, glass and prints add little, but optical breadboard or extrusion and mirrors can push the total toward $$
SafetyClass 3B laser diode — never look into the beam or a specular reflection, and enclose the optical path during alignment. No mains voltage in the current design.
