YOU CAN BUILD AN INJECTION MOULDING MACHINE THAT RUNS A WHOLE BATCH BY ITSELF

A benchtop injection moulder that runs the full cycle without a person — feeds pellets, melts, injects, holds, ejects, and counts down the batch.

by Buster Beagle 3D

FULL CAD BOM FIRMWARE DOCS

WorkshopAutomation

Built withArduino3D printing

difficulty
●●●●○
time
a long weekend-plus
license
CC0-1.0
repo
repo ACTIVE9 stars

WHAT YOU’LL NEED

Videos
1
Jump to section

COMPAREE VERDICT

This is a benchtop injection moulding machine that runs a full production cycle without a person: a timed auger feeds pellets, two 110 volt 380 watt band heaters melt them, a pneumatic cylinder injects, the vise holds closed while the part sets, then opens, a servo ejects the part, an optical sensor confirms it dropped, and an LCD counts down the remaining parts before the next cycle. It took four generations to get there: a hand-cranked MK1, a larger MK2, a pneumatic MK3, and the MK4, which is an upgraded MK3. The repo is CC0 and includes the Arduino firmware, 3D-printed parts, wiring and pneumatic diagrams, and links to a bill of materials and frame and vise PDFs. The single biggest catch: several of the harder parts (heating chamber, chamber extension, aluminium plates, plunger extension rod, funnel and vise kit) are sold by the maker, so this is an open design that is partly a kit; STEP and IGES files are offered for the plates, but the rest means machining or a longer search if you source it yourself. The bill of materials has no prices. Heat is regulated by three Rex C100 PID controllers with solid state relays and K-type thermocouples, the frame is 2020 aluminium extrusion, and you also need a compressed-air supply for the pneumatics. The most likely failure mode is getting the timing wrong: injection time, hold time and cooling are tuned for the specific mould and material, and there is no lookup table in the repo.

GOOD TO KNOW

  • —Firmware, printed parts (pellet sensor holder, plunger fan bracket, hall sensor mount, auger and feeder, ejection servo, part-drop chute, enclosures), wiring and pneumatic diagrams are in the repo; the bill of materials, frame and vise PDFs and a mould template are linked from the README.

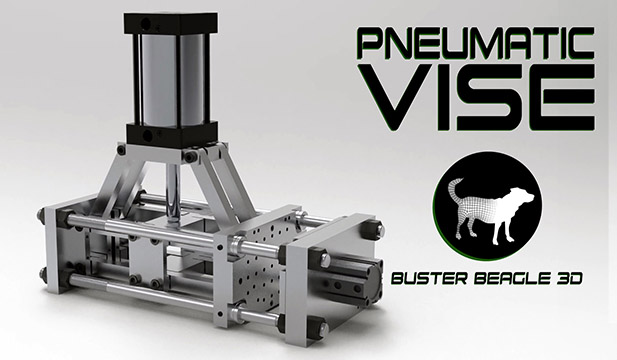

  • —Several of the harder parts — the heating chamber, the plunger, the aluminium plates, and the vise — are sold by the maker. This is an open design that is partly a kit.
  • —The bill of materials does not include a total cost, so actual spend is unclear until you price every line.
  • —Licensed CC0-1.0, which is as permissive as a licence gets — no restrictions on commercial use.
  • —The repository documents the MK4; MK1-MK3 videos are linked in the README for background, and the MK3/MK4 frame PDF is shared.

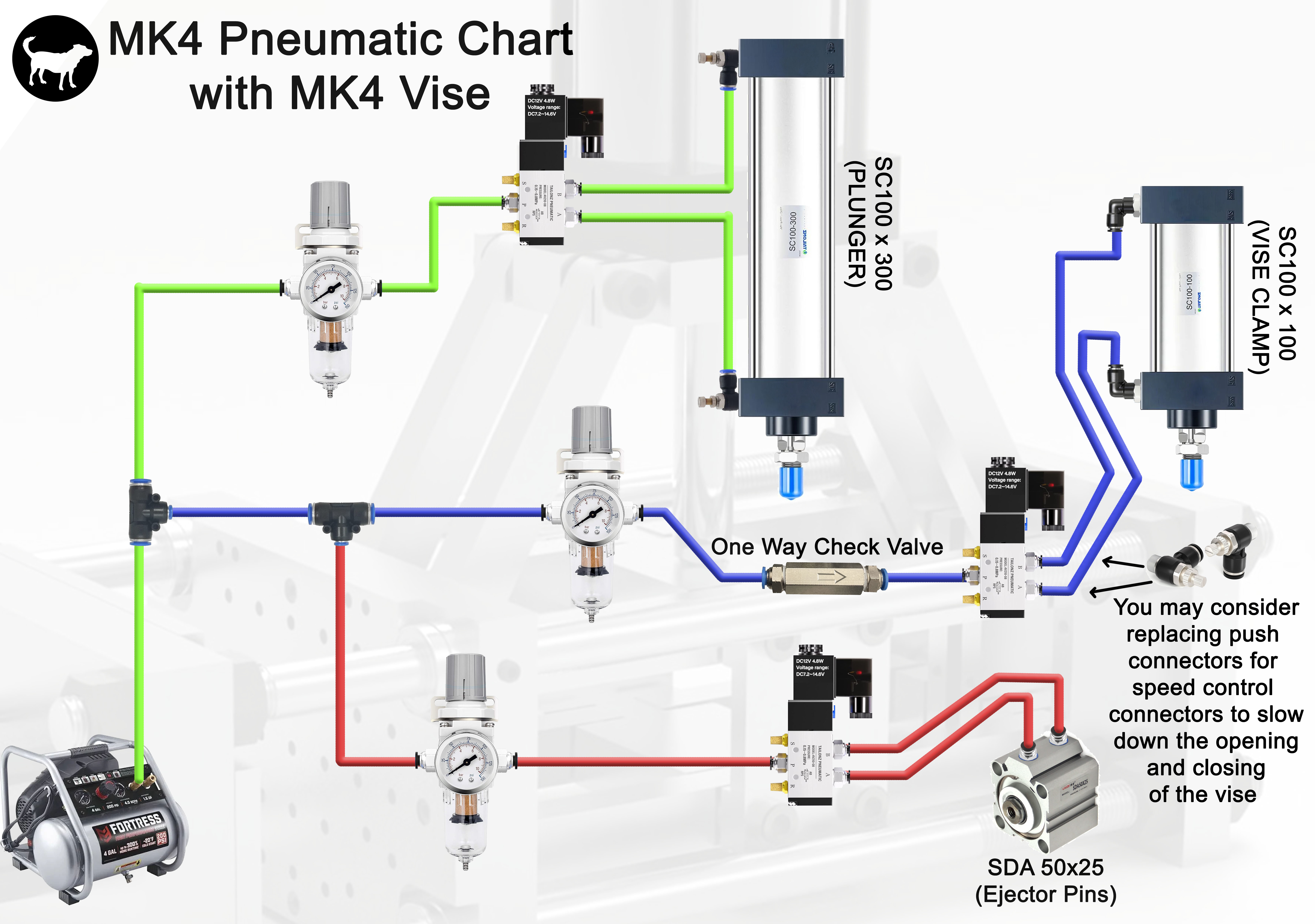

  • —Frame and vise have assembly PDFs (plus a vise assembly video); the automation wiring and pneumatics are documented as diagrams only.

Parts to buy

12 items

From our check of the build. Exact quantities and part numbers are in the creator’s BOM.

  • Two 110V 380W band heatersFind
  • 2020 aluminium extrusion and brackets for the frameFind
  • Arduino Nano with I/O shield (or the maker's PCB)Find
  • LCDFind
  • EncoderFind
  • Hall and optical sensorsFind
  • ServoFind
  • Auger motorFind
  • Pneumatic valvesFind
  • Regulators and hoseFind
  • Compressed-air supplyFind
  • Either the maker's kit parts or your own machined equivalentsFind

BUILDS OF THE WEEK

Five open-source builds worth your weekend, every week.

Checked like this one: what’s really in the repo, what it costs, how hard it is. One email, unsubscribe anytime.

Can I build this?

PrintPellet sensor mount, plunger fan bracket, hall sensor mount, auger, feeder, ejection servo mount, and enclosures — all STL files are in the repo.
BuyTwo 110V 380W band heaters, three Rex C100 PID controllers with solid state relays and K-type thermocouples, 2020 aluminium extrusion and brackets for the frame, an Arduino Nano with I/O shield (or the maker's PCB), LCD, encoder, hall and optical sensors, servo, auger motor, pneumatic valves, regulators and hose, a compressed-air supply, and either the maker's kit parts (heating chamber, chamber extension, aluminium plates, plunger extension rod, funnel, vise) or your own machined equivalents.
Tools3D printer, basic hand tools, soldering iron, and access to the maker's part sales if you are not machining the heating chamber and vise yourself.
SkillsIntermediate electronics (wiring PID controllers and solid state relays), mechanical assembly (2020 extrusion frames and pneumatic systems), and the ability to tune injection timing for your mould and material — the frame and vise have assembly PDFs, the automation is documented as diagrams plus a video walkthrough.
TimeA long weekend if you buy the kit parts, longer if you are sourcing or machining the heating chamber and vise yourself, plus tuning time for your first mould.
Cost$$$, dominated by the band heaters, PID controllers, and the kit parts if you buy them from the maker — the bill of materials has no total, so actual spend is unclear until you price every line.
SafetyMains voltage (110V band heaters regulated by solid state relays), high temperature (melting plastic), and moving parts (vise and ejection). Use proper mains wiring, do not touch the heating chamber during operation, and keep hands clear of the vise.

This build involves mains voltage — for adults comfortable with electrical work only.

Build at your own risk. Projects involve tools, electronics and sometimes mains voltage — follow the creator’s safety notes.

Videos

The maker's own walkthrough of how the MK4 works and runs a fully automatic cycle.

More builds like this

All projects
You can build a machine that braids ropeWorkshopYou can build a computer-controlled loom that weaves picturesWorkshopYou can turn an old sewing machine into an embroidery machineWorkshop

Gallery

Start here

Navigation into the creator’s own docs — we don’t rewrite the guide, we route you to the source.

  1. 1.Check the bill of materials (Price every line before starting — the repo does not include a total cost.)
  2. 2.Decide whether to buy the kit parts or source them yourself(The heating chamber, plunger, aluminium plates, and vise are sold by the maker — if you source them yourself, expect machining or a longer search.)
  3. 3.Print the sensor mount, plunger bracket, hall sensor mount, auger, feeder, servo mount, and enclosures (All STL files are in the repo.)

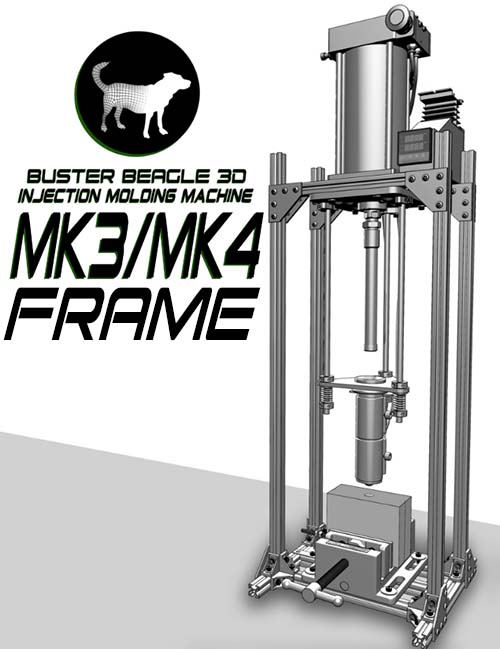

  4. 4.Build the frame from 2020 aluminium extrusion (Frame drawings are in the public drive linked from the repo.)

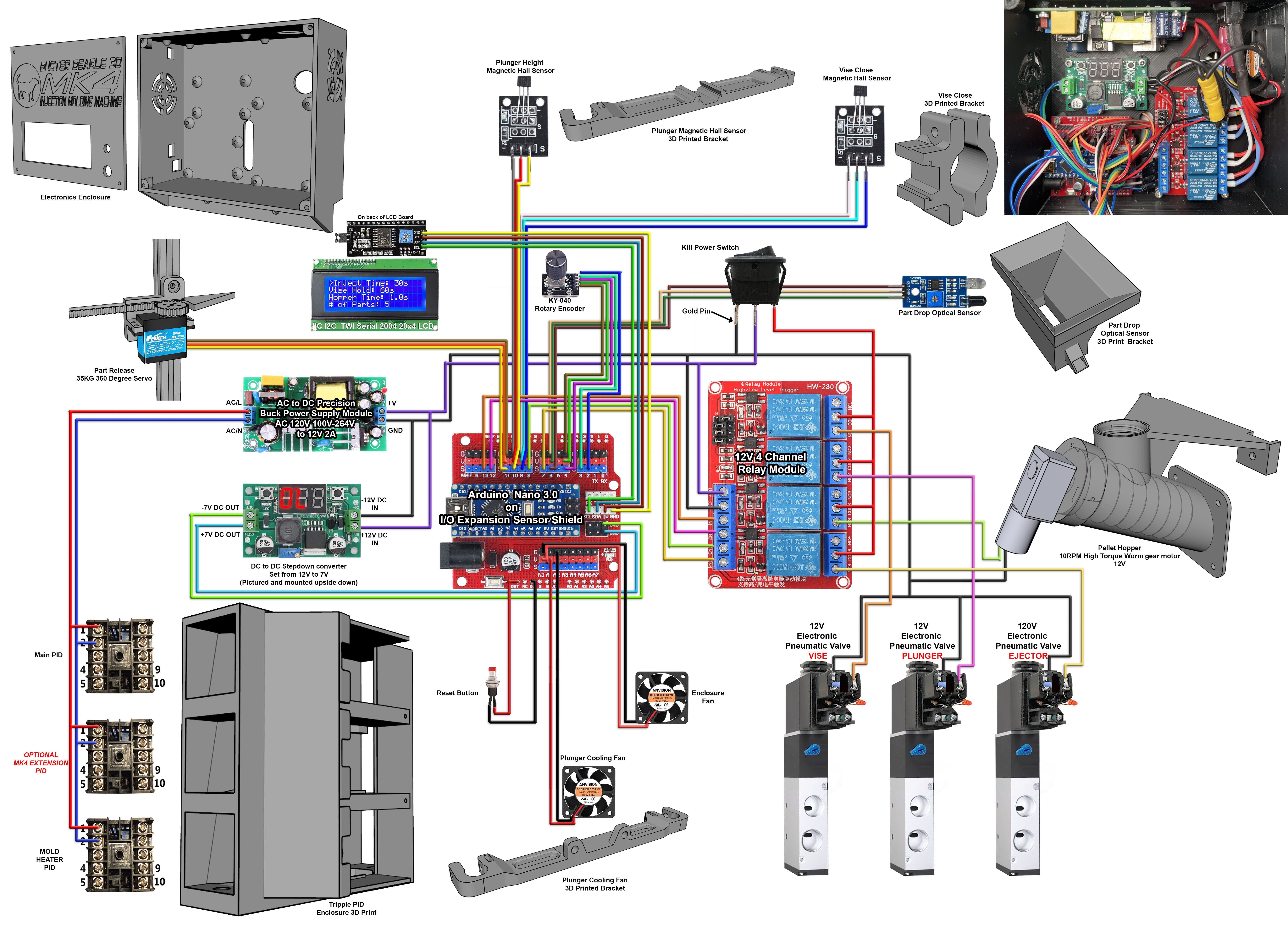

  5. 5.Wire the PID controllers, solid state relays, and thermocouples (Wiring diagrams are in the repo — this is mains voltage, so check your work.)
