FOUR BELTS AND A PORTABLE SLED TURN A FULL SHEET OF PLYWOOD INTO A CNC BED
Four tensioned belts replace the gantry so a full-sheet CNC can pack away when you are done.
by MaslowCNC
Workshop
Built withESP32
- difficulty
- ●●●●○
- time
- a long weekend
- license
- GPL-3.0
- repo
- repo ACTIVE105 stars
●●●●○ · a long weekend · GPL-3.0 · 105 stars · repo ACTIVE
WHAT YOU’LL NEED
Jump to section
COMPAREE VERDICT
Maslow 4 is an open-source CNC router that pulls itself around on four belts instead of riding a rigid gantry, so it can cut a full 4 by 8 foot sheet yet the core robot stays very portable. The project is honest about the trade: it is much cheaper than a gantry CNC and generally less accurate than a good one. People have cut saunas, tables, signs and a thirty-foot catamaran with it, so the capability is there if you can live with looser tolerances. The control software is a local website hosted on the ESP32 board inside the machine, reachable over USB-C, Wi-Fi direct or your home network from a phone or laptop, and built on FluidNC. The thing most likely to go wrong is underestimating the frame: the sled is portable but you still need a stiff external frame or solid anchors for every cut, and the README says troubleshooting is part of the process. If you want plug-and-play precision or have nowhere to anchor a four-by-eight frame, this is not the project. If you have the space, the patience and a pile of plywood, it is a serious tool.
IN THE REPO
GOOD TO KNOW
- —The build files for all parts live in a separate repository (MaslowCNC/Maslow4).
- —BOM is in the wiki, not a single exported CSV.
- —Firmware is GPL-3.0 and built on FluidNC; no commercial restriction.
- —The README explicitly states it is generally less accurate than a good gantry CNC and not plug-and-play.
- —You still need a stiff external frame or anchors around the sheet — the sled is portable, the cutting area is not.
- —An official kit is sold through maslowcnc.com; you can also print the parts and source the electronics yourself.
Parts to buy
2 itemsFrom our check of the build. Exact quantities and part numbers are in the creator’s BOM.
Can I build this?
Build at your own risk. Projects involve tools, electronics and sometimes mains voltage — follow the creator’s safety notes.
Videos

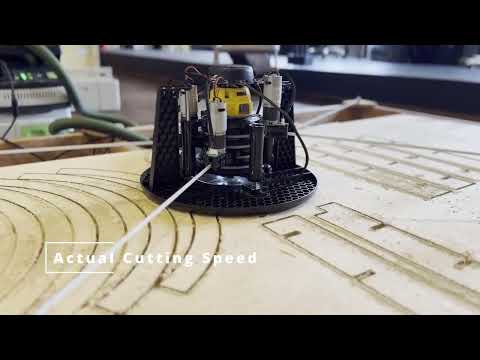

The official one-minute Maslow CNC intro video (May 2026). Assembly instructions are on maslowcnc.com and in the wiki.
More builds like this
All projectsGallery
Start here
Navigation into the creator’s own docs — we don’t rewrite the guide, we route you to the source.
- 1.Read the README end to end (It lists what is not plug-and-play and where you will spend time troubleshooting)
- 2.Check the mechanics repository for STEP files(Separate repo holds all the CAD; link is in the main README)
- 3.Review the BOM in the wiki(Not a single CSV; parts are listed across multiple wiki pages)
- 4.Decide on your frame(Stiff external frame or solid anchors are required; the sled alone is not enough)
Resources
Documentation, files and community threads for this build — we link straight to the original sources and never rehost the creator’s files.
KNOWN ISSUES
- Underestimating the frame: the sled is portable but you still need a rigid external structure for every cut, and building or anchoring that structure is not covered in detail.
- Expecting gantry-level accuracy: the README explicitly says Maslow is generally less accurate than a good gantry CNC, so if your project needs tight tolerances this is the wrong tool.
- Choosing the DIY route over the kit: the official kit comes with injection-moulded parts and the custom PCB; if you print and source everything yourself, expect weaker parts and more troubleshooting.
- Skipping calibration: the machine measures position by belt length, so calibration and tuning are not optional and the README warns troubleshooting is part of the process.
- Missing the build files: the CAD lives in a separate repository, MaslowCNC/Maslow4, not in the Maslow_4 firmware repo.
- Planning a build with no space for a four-by-eight frame: if you cannot anchor or build a frame that size, the portability of the sled does not help you.
How accurate is it compared to a gantry CNC?
The README states it is generally less accurate than a good gantry machine. People have cut furniture and boats with it, but if you need tight tolerances for joinery or precision parts, a gantry CNC is the better choice.
Do I need a permanent table?
No permanent table, but you do need a stiff external frame or solid anchors around the sheet for every cut. The sled is portable; the cutting area is not.
Is there a kit I can buy?
Yes. The official Maslow 4.1 kit (custom PCB, motors, wiring, hardware and injection-moulded parts) is sold through maslowcnc.com. You can still 3D print the parts and source the rest yourself if you prefer.
What size sheet can it cut?
A full 4x8 foot (1200 x 2400 mm) sheet, cutting up to 60 mm deep.
Can I use it without Wi-Fi?
Yes. The control software is hosted on the ESP32 board and reachable over USB-C, Wi-Fi direct, or your local network. All three work.
Community builds
No community builds yet — be the first, we feature the best ones.
Discussion1
FROM THE COMPAREE TEAM
The README says it is less accurate than a gantry CNC but people have still cut a thirty-foot catamaran with it. What would you trust it to cut, and where would you draw the line?
MaslowCNC
Maslow is developed by Barbour Smith and a community of volunteers. He has iterated on it for more than a decade, from the original two-chain wall-mounted machine to Maslow 4's four belts and portable sled, funded through Kickstarter campaigns that paid for injection-moulded parts and a custom PCB. Builders have cut saunas, tables, signs and a 30-foot catamaran with it.
