HOSI: BUILD A HYPERSPECTRAL CAMERA FOR £350 THAT SEES UV AND NEAR-IR (COMMERCIAL ONES START ABOVE £20,000)
Labs pay over £20,000 for a hyperspectral camera; this one costs £350 and records a full spectrum per pixel down into UV and near-infrared.
ScienceOpen-hardware
Built withArduino3D printing
- difficulty
- ●●●●○
- time
- a weekend-plus
- license
- GPL-3.0
- repo
- repo ACTIVE19 stars
●●●●○ · a weekend-plus · GPL-3.0 · 19 stars · repo ACTIVE
WHAT YOU’LL NEED
Jump to section
COMPAREE VERDICT
HOSI is a mechanical hyperspectral scanner built for animal vision and artificial light research, published as a peer-reviewed paper by Dr Jolyon Troscianko at the University of Exeter. Instead of an expensive hyperspectral sensor, it uses a single Hamamatsu micro-spectrometer (about 220 pounds) behind a lens, mounted on a 3D-printed pan/tilt gimbal driven by two stepper motors and an Arduino Nano. The gimbal sweeps the scene point by point, recording a full radiance curve (320-880 nm, covering UV and near-infrared) for every pixel. Total hardware cost is around 350 pounds; the paper puts commercial hyperspectral cameras above 20,000 pounds for the human-visible range alone, and UV-visible imaging lenses at typically around 10,000 dollars. Output is a .csv of raw and calibrated radiance plus a .png preview, so every scan is quantitative data, not just a picture. The dynamic range exceeds 50,000:1 in a single night scan, and sensitivity goes down to about 0.001 cd/m2 - dark enough to measure a night scene. The catch is speed: scans are mechanical, so a daytime woodland scene took around 20 minutes and a night scene about 40. If you need live video or even a snapshot, this is not the tool. But if you are measuring spectral signatures - butterfly wings, plant reflectance, streetlight types - this is a remarkably capable option at this price. The one thing most likely to go wrong is ordering the wrong optics: the Thorlabs LB4280 lens is fused silica, and an ordinary glass lens will cost you the UV end of the range.
IN THE REPO
GOOD TO KNOW
- —Full build package: 3D print files, wiring diagram, Arduino firmware, Python GUI, calibration scripts and a peer-reviewed paper (BMC Biology 23, 5 2025, doi 10.1186/s12915-024-02110-w).
- —The Hamamatsu C12880MA spectrometer (approximately £220) is the single largest cost and the only specialist part.
- —All other hardware is off-the-shelf: two 28BYJ-48 stepper motors, an Arduino Nano, a Thorlabs fused-silica lens (LB4280, ~£75), and 3D-printed gimbal parts.
- —Licence is GPLv3, which allows commercial use but requires derivative works to share source under the same licence.
- —The author's YouTube channel has a five-part series: introduction, assembly, firmware upload, calibration and an imaging demo.
- —Scans are slow: a daytime woodland scene (86 × 23 points) took around 20 minutes, a night scene (61 × 16 points) about 40 minutes, because the gimbal sweeps point by point.
Parts to buy
5 itemsFrom our check of the build. Exact quantities and part numbers are in the creator’s BOM.
Can I build this?
Build at your own risk. Projects involve tools, electronics and sometimes mains voltage — follow the creator’s safety notes.
Videos
Hyperspectral open source imager (HOSI) imaging demo21:00
21-minute imaging demo by the author: how to use HOSI and what it can do. Assembly, firmware upload and calibration each have their own video below.
More builds like this
All projectsGallery
Start here
Navigation into the creator’s own docs — we don’t rewrite the guide, we route you to the source.
- 1.Read the peer-reviewed paper (BMC Biology 23, 5 (2025) — the full methods, calibration procedure and example data are here)
- 2.Watch the author's 21-minute imaging demo, then the assembly, firmware and calibration videos (The imaging demo, posted 8 Jan 2025; assembly, firmware upload and calibration each have their own short video linked from the README)
- 3.Clone the repository and check the wiring diagram (Everything is there: 3D files, Arduino firmware, Python GUI, calibration scripts)
- 4.Order the Hamamatsu C12880MA spectrometer(Approximately £220 from Hamamatsu UK — this is the single largest cost)
Resources
Documentation, files and community threads for this build — we link straight to the original sources and never rehost the creator’s files.
KNOWN ISSUES
- Use the Thorlabs LB4280 fused-silica lens the author specifies: ordinary optical glass absorbs much of the UV end, so a cheaper glass lens costs you the UV part of the 320-880 nm range - often the part animal-vision work needs most.
- Scans are mechanical and slow: a small daytime scene takes around 20 minutes, a night scene closer to 40. If you need live imaging or even a snapshot, this is not the tool.

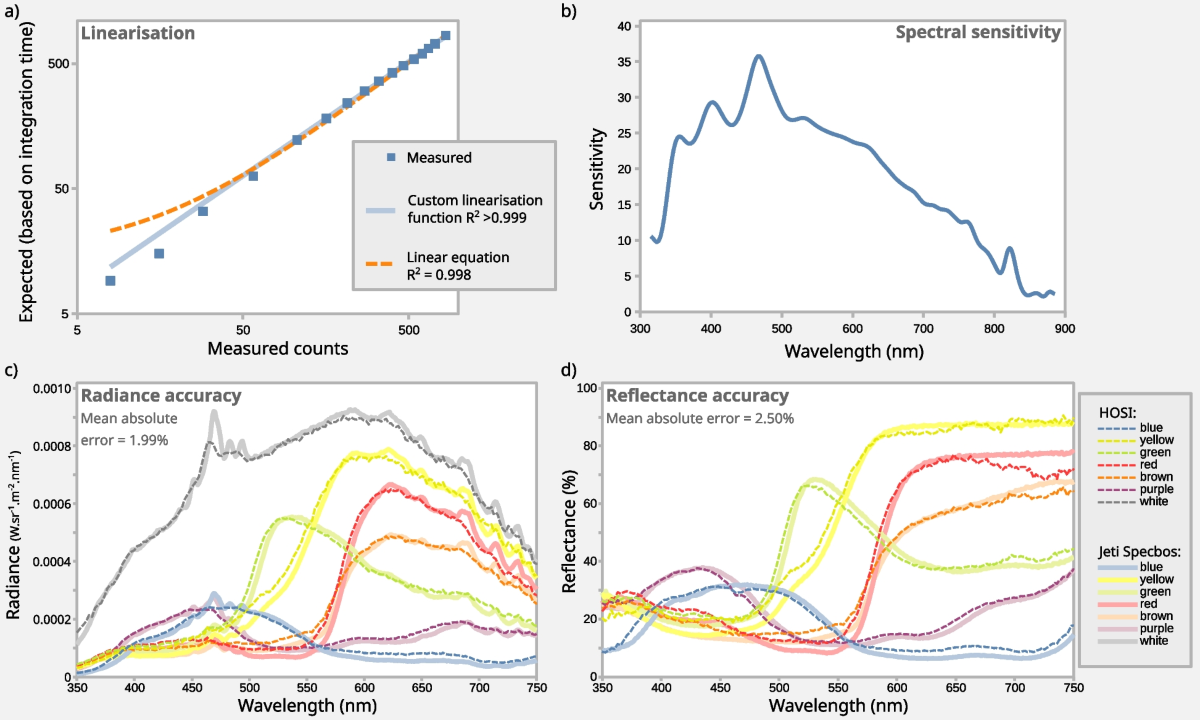

- Calibration is not optional: the author supplies Python scripts for linearisation and spectral sensitivity, but you need the wavelength coefficients that come with your C12880MA chip, a white standard and a light source with a known spectrum before the data is quantitative.

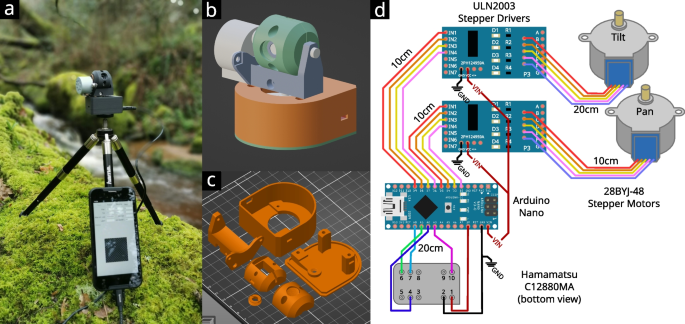

- The C12880MA is wired straight to the Arduino Nano: follow the author's wiring diagram with its wire lengths, and power the spectrometer from the Nano's regulated 5 V pin, not VIN.
- The 28BYJ-48 stepper motors are 2048 steps per revolution, but the spatial resolution (about 0.2 degrees) depends on the optics alignment — expect to iterate on the first build.
- The Python GUI runs on a laptop or smartphone over USB, but the author's code is written for his workflow (field scans, .csv output) — if you want real-time preview or a different file format, you will be editing it.
Why is this so much cheaper than a commercial hyperspectral camera?
Commercial systems use expensive 2D hyperspectral sensors or tunable filters; HOSI uses a single £220 point spectrometer and sweeps the scene mechanically. The trade-off is speed: a commercial camera captures the whole frame at once, HOSI takes 20-40 minutes per scan.
Can I use a normal lens instead of the Thorlabs fused-silica one?
Not if you want the UV range. The author specifies the fused-silica Thorlabs LB4280 because ordinary optical glass absorbs much of the near-UV, which would cut into the 320-400 nm end of HOSI's range.
What file format does it output?
A .csv of raw and calibrated radiance (one row per pixel, one column per wavelength) plus a .png preview. If you want a different format, you will need to edit the Python GUI.
Can I speed up the scans?
Speed is set mostly by light: in bright scenes HOSI manages about 12 points per second, at dim indoor levels about 3.6, and with 1-second night exposures under one point per second. The easiest speed-up is scanning fewer points (a coarser pan/tilt resolution or a smaller area), which is a scan setting rather than a hardware change.
Community builds
No community builds yet — be the first, we feature the best ones.
Discussion1
FROM THE COMPAREE TEAM

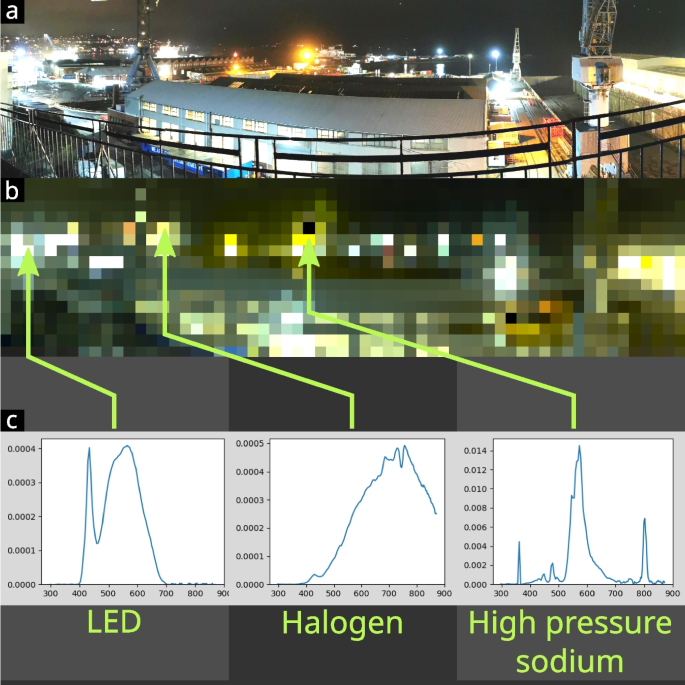

The author's demo scans include butterfly wings that look plain black to humans but show a strong UV peak many animals can see, and a night-time dock scene where individual streetlight types can be told apart from their spectra. What would you point yours at first?
Dr Jolyon Troscianko
Dr Jolyon Troscianko is a researcher at the University of Exeter working on animal vision and artificial light at night (ALAN). He built HOSI to measure spectral signatures in the field — butterfly wings, plant reflectance, and streetlight types — because commercial hyperspectral cameras cost over £20,000 and a UV-capable imaging lens alone is typically 10,000 dollars. The full build was published as a peer-reviewed paper in BMC Biology in January 2025.
