YOU CAN BUILD YOUR OWN ENIGMA MACHINE

Press a key, a different letter lights up — the same encryption logic that Alan Turing's team broke at Bletchley Park, running on an Arduino you print at home.

by Sergio Morales

FULL CAD BOM FIRMWARE DOCS

Open-hardwareDisplays

Built withArduino3D printing

difficulty
●●●○○
time
a weekend-plus
license
license not specified
repo
repo STABLE (NO COMMITS SINCE MARCH 2022)34 stars

WHAT YOU’LL NEED

Videos
1
Jump to section

COMPAREE VERDICT

This is an electronic replica: the rotors are in software, the lamps are WS2812b LEDs, and a single LCD1602 shows the three rotor positions. It implements the real Enigma logic (rotors I-VIII, reflector B, ring settings, plugboard), but there are no mechanical rotors stepping inside; rotor positions are set with six push buttons. The print files are there, the code is complete, and the result is striking, but documentation is minimal: one wiring PDF (keyboard matrix, LCD and LED strip) plus a modes diagram. The single biggest risk is ordering incompatible hardware: the parts are only named briefly in the creator's video description, not in the repo. If you have built keyboard projects before and can read a wiring diagram, this is a solid weekend-plus build. The GitHub repo has no licence file (the Printables models are public domain), so clarify terms before reusing the code commercially.

GOOD TO KNOW

  • —25 STL files in the GitHub repo (keyboard, lampboard, case, lids, switches, letters, logo).
  • —Arduino sketch enigma.ino implements rotors I-VIII, reflector B, and plugboard logic.
  • —One hand-drawn wiring PDF in the repo, no step-by-step assembly guide.
  • —Parts list exists only in the video description, not in the repository.
  • —GitHub repo has no licence file; Printables version is CC0 Public Domain.
  • —No BOM spreadsheet and no vendor links; print notes are limited to 'PLA on a Prusa MK3S with MMU2S' on Printables.

Parts to buy

6 items

From our check of the build. Exact quantities and part numbers are in the creator’s BOM.

  • Arduino MegaFind
  • 26 WS2812b LEDs (strip)Find
  • 32 push-button switches (26 letters plus 6 rotor buttons)Find
  • One LCD1602 16x2 display with a contrast potentiometerFind
  • WiringFind
  • Wooden box (optional)Find

BUILDS OF THE WEEK

Five open-source builds worth your weekend, every week.

Checked like this one: what’s really in the repo, what it costs, how hard it is. One email, unsubscribe anytime.

Can I build this?

PrintCase, lids, keyboard top and bottom, keycaps and letters, lampboard parts, button parts and the Enigma logo — 25 STL files in the repo.
BuyArduino Mega, 26 WS2812b LEDs (strip), 32 push-button switches (26 letters plus 6 rotor buttons), one LCD1602 16x2 display (parallel 4-bit wiring) with a contrast potentiometer, wiring, wooden box (optional).
Tools3D printer, soldering iron, wire strippers, multimeter recommended.
SkillsIntermediate. You need to solder a 32-button switch matrix, wire a WS2812b LED strip on one data pin, and connect one LCD1602 in 4-bit parallel mode, following a sketched but pin-labelled wiring diagram.
TimeA weekend plus another evening for wiring and troubleshooting, plus the print time for the case, keyboard and 26 keycaps.
Cost$$ — the creator publishes no cost; the main purchases are an Arduino Mega, a WS2812b LED strip, push-button switches, an LCD1602 and filament.
SafetySoldering iron heat and flux fumes. No mains voltage, no lithium cells, no lasers. Ordinary electronics care.

Build at your own risk. Projects involve tools, electronics and sometimes mains voltage — follow the creator’s safety notes.

Videos

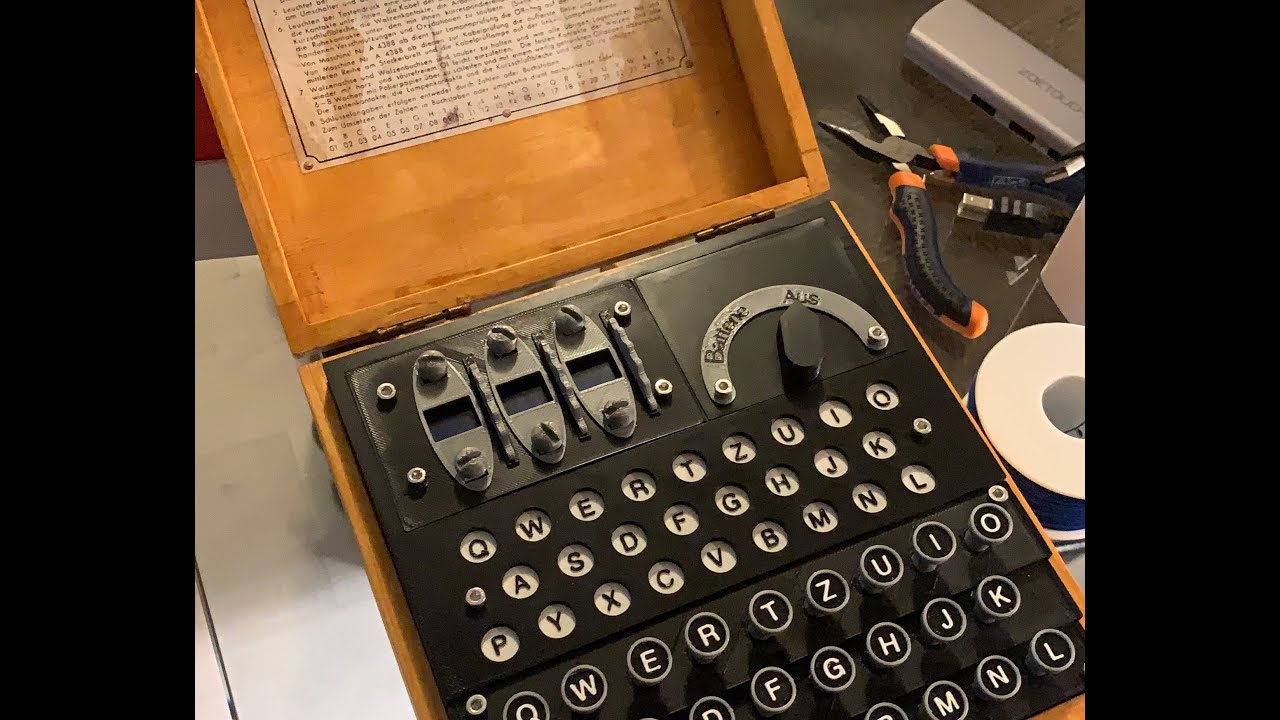

Arduino 3D printed Enigma Machine - Sergio Morales

The creator's own video of the finished machine, posted on his Menyiques channel; the parts list is in its description. The GitHub repo does not link it.

More builds like this

All projects
Build your own e-paper smartwatch for 60 dollars — the battery lasts a weekOpen-hardwareThis open-source handheld turns a tiny Intel NUC mini-PC into a Windows gaming consoleOpen-hardwareYou can build a spinning disk that paints a floating 3D globe in mid-airDisplays

Gallery

Start here

Navigation into the creator’s own docs — we don’t rewrite the guide, we route you to the source.

  1. 1.Read the hand-drawn wiring PDF in the repo and sketch your own labelled version before ordering parts.(The diagram labels every pin (keyboard rows A0-A5, columns A6-A11, LCD in 4-bit mode, LED data on D3); it also includes a diagram of the machine's operating modes.)
  2. 2.Check the video description for the parts list — it is not in the GitHub repo.(You need exact switch types and LED strip specs that fit the printed keycaps and lampboard.)
  3. 3.Print the keyboard base and one keycap first to test your switch fit.(If the switches are loose or too tight, you will need to scale or redesign before printing all 26 caps.)
  4. 4.Flash enigma.ino to the Mega and test the rotor logic on the serial monitor before wiring the displays and LEDs.(Confirms the code runs and helps you understand the rotor sequence before hardware debugging starts.)

Resources

Documentation, files and community threads for this build — we link straight to the original sources and never rehost the creator’s files.

KNOWN ISSUES

  • The parts list is in the video description, not the repo. If the video disappears or you miss a part number, you are guessing which key switches fit the printed caps.
  • The wiring diagram is a sketch: it labels the pins (keyboard matrix A0-A11, LCD D4-D7, LED data D3) but gives no wire lengths, connectors or assembly order, so plan the physical routing yourself.
  • The GitHub repo has no licence file. The Printables version is CC0, but if you derive from the GitHub code, the legal status is unclear.
  • There are no detailed print settings: the creator only says it was printed in PLA on a Prusa MK3S with MMU2S. Keycaps and the lampboard need to fit tightly, so test-print one keycap first.
  • If you have never wired a WS2812b LED strip, expect an afternoon learning the Adafruit NeoPixel library, which the code uses without explaining setup.
  • No assembly photos or video walkthrough in the repo. You are working from the wiring PDF and your own test fits.

Does it have mechanical rotors like a real Enigma?

No. The rotors are simulated in software. A single LCD1602 shows the three rotor positions, and you step them up or down with six extra push buttons, but there are no physical wheels stepping inside.

Does the encryption actually match a real Enigma?

The code implements the real Enigma wiring for rotors I-VIII, reflector B, ring settings and a plugboard of up to 10 pairs. The creator does not publish a comparison against another simulator, so check a few messages against an online Enigma simulator yourself.

What licence is this under?

The Printables version is CC0 Public Domain. The GitHub repo has no licence file, which technically means all rights reserved by default. If you plan to sell kits, clarify with the creator.

Can I use different key switches?

Only if they have the same footprint as the ones in the video. The keycaps are sized for specific switch mounts, and there is no parametric model to adjust them.

Is there a PCB or is it all hand-wired?

All hand-wired. The keys are scanned as a matrix on the Mega's analog pins, the 26 WS2812b LEDs share one data pin, and a single LCD1602 runs in 4-bit parallel mode. No custom PCB.

Community builds

No community builds yet — be the first, we feature the best ones.

Discussion1

FROM THE COMPAREE TEAM

This replica runs the rotor logic of the Enigma on an Arduino Mega with a single LCD showing the rotor positions. What message would you encrypt first?

CompareeTEAM9d agoedited

Practical notes from our verification: the repo has 25 STL files, the Arduino sketch and a hand-drawn wiring PDF. The parts are named only briefly in the creator's own YouTube video description: an Arduino Mega, WS2812B LEDs, switches, one LCD1602 and a wooden box. The single 16x2 LCD shows all three rotor letters and runs in 4-bit parallel mode, and the keys are scanned as a matrix on the analog pins. The GitHub repo has no licence file, so reuse rights for the code are unclear. The single biggest gotcha is buying switches that fit the printed keys, because there are no part numbers in the repository. Correction (4 October 2026): we re-checked this page line by line against the project's own repository, documentation and videos, and fixed errors in earlier versions.

Sergio Morales

Sergio Morales (GitHub Menyiques) built this electronic replica of the Enigma cipher machine on an Arduino Mega and published the STL files, the Arduino sketch and a wiring PDF on GitHub, with the models also on Printables under a public-domain licence.
