YOU CAN BUILD A COMPUTER-CONTROLLED LOOM THAT WEAVES PICTURES

A bench-scale Jacquard loom that lifts every warp thread individually so you can weave any picture you draw on an iPhone.

by Kurt (Retro Tech Journal)

FULL CAD BOM FIRMWARE DOCS

WorkshopAutomation

Built withArduino3D printing

difficulty
●●●●●
time
several weekends
license
MIT
repo
repo FINISHED33 stars

WHAT YOU’LL NEED

Videos
1
Jump to section

COMPAREE VERDICT

WeaveMe is a computer-controlled Jacquard-style loom: each of its 60 warp threads is set up or down by its own 3D-printed cam, so the loom can weave image patterns sent from an iPhone app over Bluetooth. It fits on a workbench, runs on a custom ATmega644 board programmed with the Arduino IDE, and drives its mechanism with stepper motors. The entire design is MIT-licensed on GitLab. This is not a beginner project. The README warns plainly that it is files, not instructions, and the PCB has surface-mount parts that need populating and reflow. There is no BOM and no assembly guide; beyond the creator's video and blog post, you are working backward from the design files, though he does invite questions. If you have built electronics from scratch before and can turn an Eagle board file into an order, this is a remarkable thing to have on your bench for the cost of parts and patience. The one thing most likely to go wrong is underestimating the mechanical tuning: the creator says it was fiddly to get working and slow to operate, and he spent about a year and a half on it.

GOOD TO KNOW

  • —3D parts (one Rhino file), laser-cut vectors (Illustrator), Arduino firmware, the Eagle PCB design and the iPhone app source are all in the GitLab repo.
  • —The README explicitly states this is 'not a how-to or a kit' — it is a design dump, not step-by-step instructions.
  • —No bill of materials or assembly guide. You are reverse-engineering the build from the design files and code.
  • —The PCB uses surface-mount components; hand-soldering them requires magnification and practice.
  • —Licence is MIT, fully permissive including commercial use.
  • —No recent commits since the project was published in 2019.

Parts to buy

6 items

From our check of the build. Exact quantities and part numbers are in the creator’s BOM.

  • Custom ATmega644 PCB (you fabricate from the Eagle files)from the repo files
  • NRF8001 Bluetooth moduleFind
  • Stepper motorsFind
  • NeoPixel LEDsFind
  • ThreadsFind
  • Laser-cut partsFind

BUILDS OF THE WEEK

Five open-source builds worth your weekend, every week.

Checked like this one: what’s really in the repo, what it costs, how hard it is. One email, unsubscribe anytime.

Can I build this?

PrintFrame parts and thread guides — all in one Rhino 3D file in the repo, which you export to STL yourself
BuyCustom ATmega644 PCB (you fabricate from the Eagle files), nRF8001 Bluetooth module, stepper motors, NeoPixel LEDs, threads, laser-cut parts
Tools3D printer, soldering iron with fine tip and magnification, laser cutter access (or order acrylic parts cut), AVR programmer for the Arduino, Mac for the iPhone app build
SkillsSurface-mount soldering and reflow, firmware flashing, mechanical tuning of the cams, hooks and carriage, iOS app compilation from source
TimeSeveral weekends: PCB fabrication and soldering alone is a weekend, assembly and mechanical tuning is another, firmware and app setup is a third
Cost$$ — stepper motors, PCB fabrication and parts, and laser-cut parts dominate; thread and filament are minor, though the creator printed well over a hundred cams and hooks.
SafetyNone beyond ordinary electronics care — low voltage throughout, no mains, no blades, no lasers in the finished machine.

Build at your own risk. Projects involve tools, electronics and sometimes mains voltage — follow the creator’s safety notes.

Videos

Building a Computer Controlled Loom

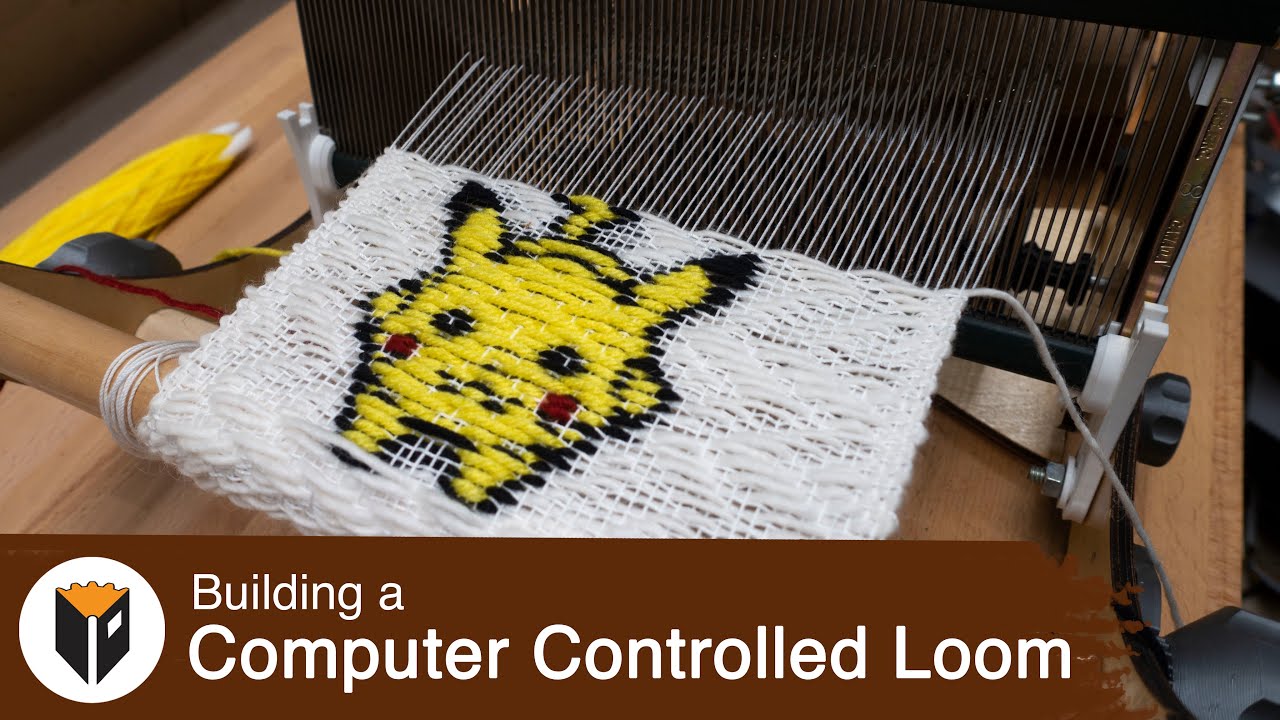

The creator's own 2019 build video, showing patterns and a panda being woven.
