THIS 1960S ROTARY PHONE ANSWERS YOU BACK - A TINY COMPUTER HIDES INSIDE
Lift a 1960s handset, dial a number, and ChatGPT answers through the original earpiece.
AutomationAI
- difficulty
- ●●●○○
- time
- a weekend
- license
- MIT

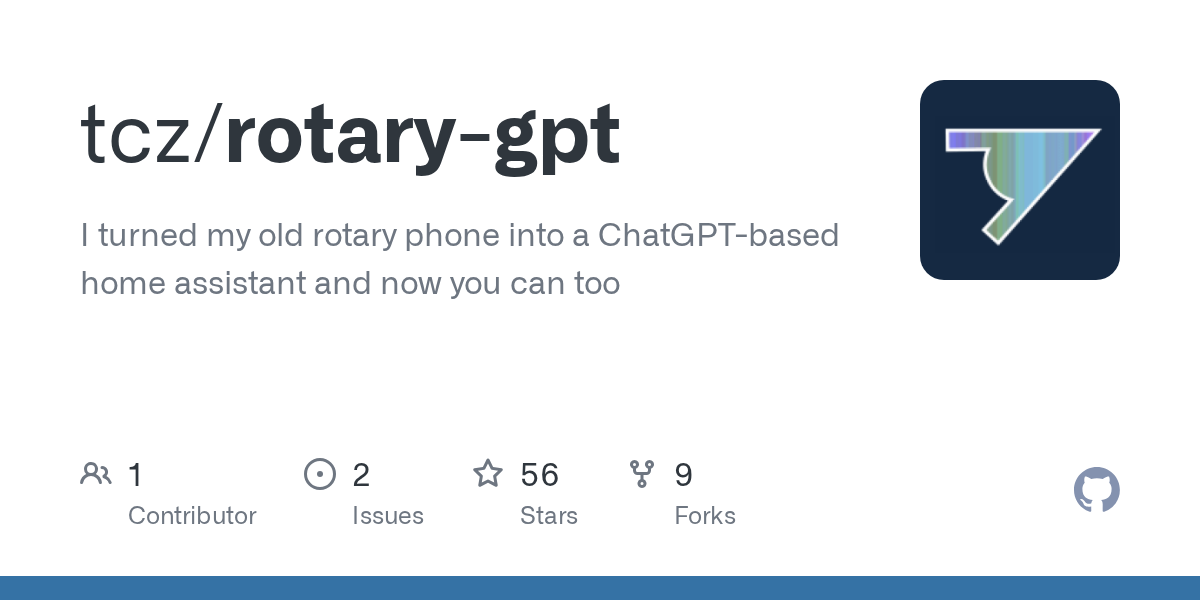

- repo
- repo ACTIVE56 stars
●●●○○ · a weekend · MIT · 56 stars · repo ACTIVE
WHAT YOU’LL NEED
- Dev board / microcontroller — runs the project firmware
Partner
COMPAREE VERDICT
This is a retrofit, not a kit. You find a rotary phone at a thrift store or online, open it up, and wire a Raspberry Pi to the dial pulses, the hook switch, and the ringer. Zoltan's Python code handles the rest: it counts dial pulses, streams audio to OpenAI's API, and plays responses through the earpiece. The ringer still works, triggered by a relay when an assistant call comes in. The hardest part is not the code — it is identifying which wires in your particular phone carry the dial pulses and whether the ringer runs on mains voltage or a lower supply. Every phone is different, and the README assumes you can read a multimeter and are comfortable opening a decades-old device. If you have never worked with rotary mechanisms before, budget an afternoon just for the wiring detective work. The payoff is a conversation piece that actually works, and the MIT license means you can sell these at a maker fair if you want to. One thing to know: every conversation costs API credits, and a five-minute chat can add up if you forget to set spend limits in your OpenAI account.
IN THE REPO
NOT IN THE REPO
- —Python code and setup instructions are in the repo, MIT license permits commercial use.
- —No bill of materials — you source your own phone, Raspberry Pi, USB sound card, and relay board.
- —No CAD files; this is a retrofit, not a print.
- —The README walks through wiring the rotary dial and hook switch, but you adapt to your phone's internals.
- —Home Assistant integration code is included for home-automation dial codes.
- —You bring your own OpenAI API key; usage costs apply per conversation.
Can I build this?
This build involves mains voltage — for adults comfortable with electrical work only.
Build at your own risk. Projects involve tools, electronics and sometimes mains voltage — follow the creator’s safety notes.
Partner · KickstarterCORE POWER BANK S: 0.2" thin, 2.8 oz, 5000 mAh with 22.5W fast charging. Semi-solid battery, carbon fiber, IPX7 waterproof.
Videos
I built ChatGPT into my rotary phone and made it sound German
Gallery
Start here
Navigation into the creator’s own docs — we don’t rewrite the guide, we route you to the source.
- 1.Read the README hardware section and identify your phone's dial and hook-switch wiring (Every phone is different; budget time for tracing wires with a multimeter.)
- 2.Install the Python dependencies and test the dial pulse counter before wiring audio (Confirming the dial works first saves debugging audio issues later.)
- 3.Set up your OpenAI API key and test with a short prompt to confirm billing limits(Conversations cost per token; set a monthly cap in your OpenAI dashboard.)
Resources
Documentation, files and community threads for this build — we link straight to the original sources and never rehost the creator’s files.
KNOWN ISSUES
- Buying a phone with a mains-voltage ringer and not realizing it until you have the case open — check the model online first.
- Not setting an OpenAI API spending cap and running up a bill during testing.
- Assuming all rotary phones wire the dial the same way — they do not, and you will need a multimeter to find the pulse contacts.
- Plugging the Pi into the phone's original wall jack and expecting it to work — this project bypasses the phone network entirely.
- Using a Raspberry Pi Zero without confirming the USB sound card draws low enough current — some cards brown out the Zero.
- Forgetting that the relay for the ringer may need a separate power supply if your Pi cannot source enough current.
Does the phone need to be connected to a landline?
No — the Pi replaces the phone network entirely. You never plug the phone into a wall jack.
Can I use this with a different AI service instead of OpenAI?
Yes, but you will need to modify the API calls in the Python code. The repo is structured for OpenAI's streaming format.
How much does each conversation cost?
OpenAI charges per token; a typical five-minute chat runs $0.10-0.30 depending on the model. Set a spending cap in your account.
Will this work with a push-button phone instead of rotary?
The code is written for pulse dialing. Push-button phones use DTMF tones, which would require different detection logic.
Community builds
No community builds yet — be the first, we feature the best ones.
Discussion1
FROM THE COMPAREE TEAM
Every rotary phone wires the dial differently — some use normally-open contacts, others normally-closed. Which wires did yours use, and did you need to add debounce logic?
Zoltan Toth-Czifra
Zoltan built this as a way to make AI conversational in a tactile, nostalgic form factor. The project grew out of home-automation experiments where dialing specific codes could trigger lights and routines.
