YOU CAN BUILD AN OSCILLOSCOPE FROM A PI PICO AND A PHONE IN A DRAWER

A working oscilloscope from a Pico, a phone from a drawer, and a front-end board you solder yourself.

by Doctor Volt

FULL CAD BOM FIRMWARE DOCS

WorkshopOpen-hardware

Built withArduinoRaspberry Pi Pico / RP2040

difficulty
●●●○○
time
a weekend
license
license not specified
repo
repo 0 stars

WHAT YOU’LL NEED

Videos
1
Jump to section

COMPAREE VERDICT

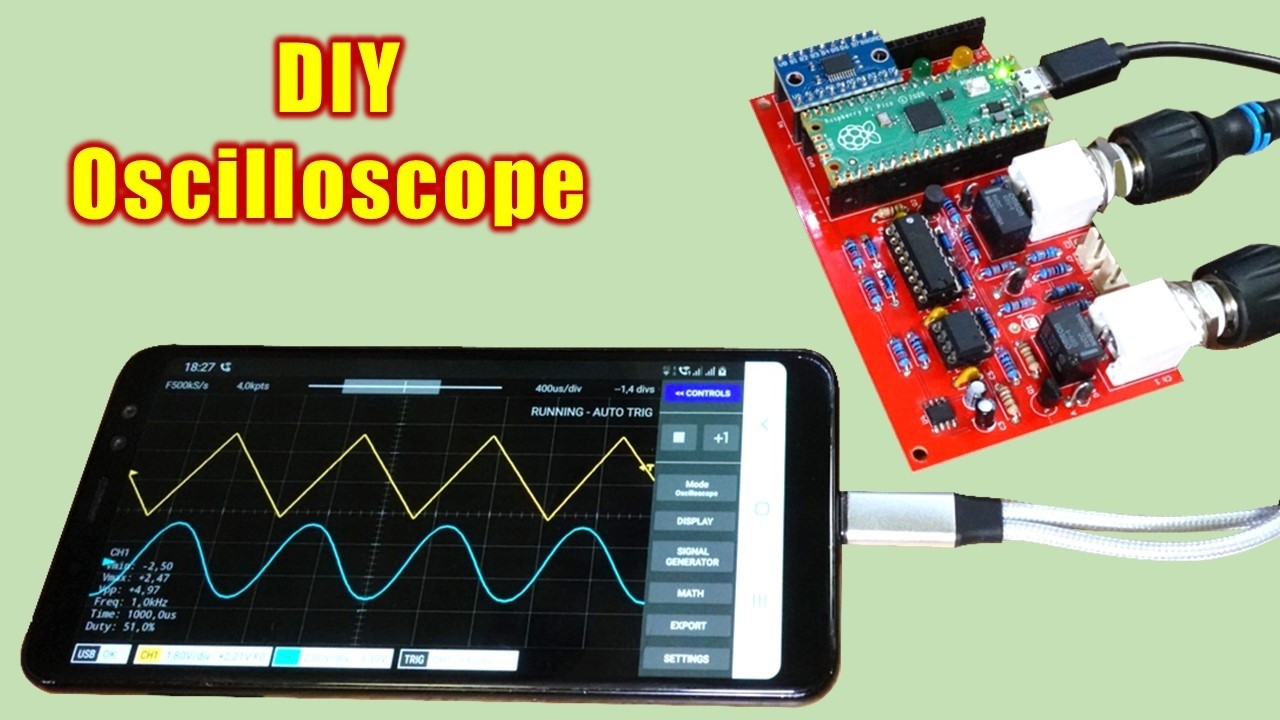

This is an honest oscilloscope built from a cheap microcontroller and a phone that was doing nothing. The Pico samples the input and streams it over USB (or Wi-Fi with a Pico W); the Scoppy Android app handles the display, triggering, timebase and measurements. The free app gives you one channel with ads, and the two-channel premium version costs about 3 euros. The piece that makes it useful beyond logic-level signals is Doctor Volt's analogue front end: a small board you build yourself with three input ranges (plus or minus 0.33, 3.3 and 33 volts), two BNC inputs, a test signal generator and an 8-channel logic analyser. The schematic, KiCad files and a BOM are published, and the author deliberately chose mostly through-hole parts so you can build it on a PCB or on perfboard. Scoppy samples at 500 kS/s and can be pushed to 2 MS/s, which shows sine waves up to about 600 kHz and square waves up to about 100 kHz, so this is not for RF or fast digital work. For audio, power supplies, Arduino debugging and learning what a signal actually looks like, it is a working instrument for very little money. The thing most likely to go wrong is the front-end board: a wrong part or bad joint in the attenuator and relay section means wrong voltage ranges, and you will spend an evening with a multimeter finding it.

GOOD TO KNOW

  • —Schematic and assembly instructions are published on Hackaday.io.
  • —The front-end board design is provided; you order PCBs and hand-solder the SMD components yourself.
  • —Firmware links are given, but this is the Scoppy app ecosystem — the Pico runs Scoppy firmware and the phone runs the Scoppy Android app.
  • —A bill of materials (bom.csv) is published alongside the schematic; it has no supplier links, so you pick the distributor.
  • —No pre-built boards or kits available; this is a hand-build from scratch.
  • —Licence is not stated on the Hackaday page; assume personal use only unless clarified by the creator.

Parts to buy

6 items

From our check of the build. Exact quantities and part numbers are in the creator’s BOM.

  • Raspberry Pi PicoFind
  • Components for the front-end boardfrom the repo files
  • PCB fabricationFind
  • Android phone or tabletFind
  • USB OTG cable or adapterFind
  • BNC probe or test leadsFind

BUILDS OF THE WEEK

Five open-source builds worth your weekend, every week.

Checked like this one: what’s really in the repo, what it costs, how hard it is. One email, unsubscribe anytime.

Can I build this?

Printnothing required
BuyRaspberry Pi Pico, components for the front-end board (op-amps, resistors, protection diodes, connectors), PCB fabrication, Android phone or tablet, USB OTG cable or adapter, BNC probe or test leads
Toolssoldering iron, solder, flux, multimeter, PCB ordering account (JLCPCB, PCBWay or equivalent), optionally hot air station for rework
Skillsbasic electronics and through-hole soldering, plus a couple of small SMD parts (or adapter boards); you are reading a schematic and assembling the front end on a PCB or perfboard
Timea weekend if you have soldered SMD before; a weekend-plus if this is your first SMD board and you need to rework joints
Cost$$ — PCBs and components for the front-end board dominate; the Pico and an old Android device are cheap, but you are ordering passives, ICs and connectors individually unless you already stock them

Build at your own risk. Projects involve tools, electronics and sometimes mains voltage — follow the creator’s safety notes.

Videos

Pi Pico oscilloscope in use

More builds like this

All projects
You can build a 3D printer that prints in solid steelWorkshopHackMan3D Orbit Controller: a fully 3D-printable 6-DOF CAD mouseWorkshopTurn an old Ender 3 into a wire EDM that cuts metal with sparksWorkshop

Gallery

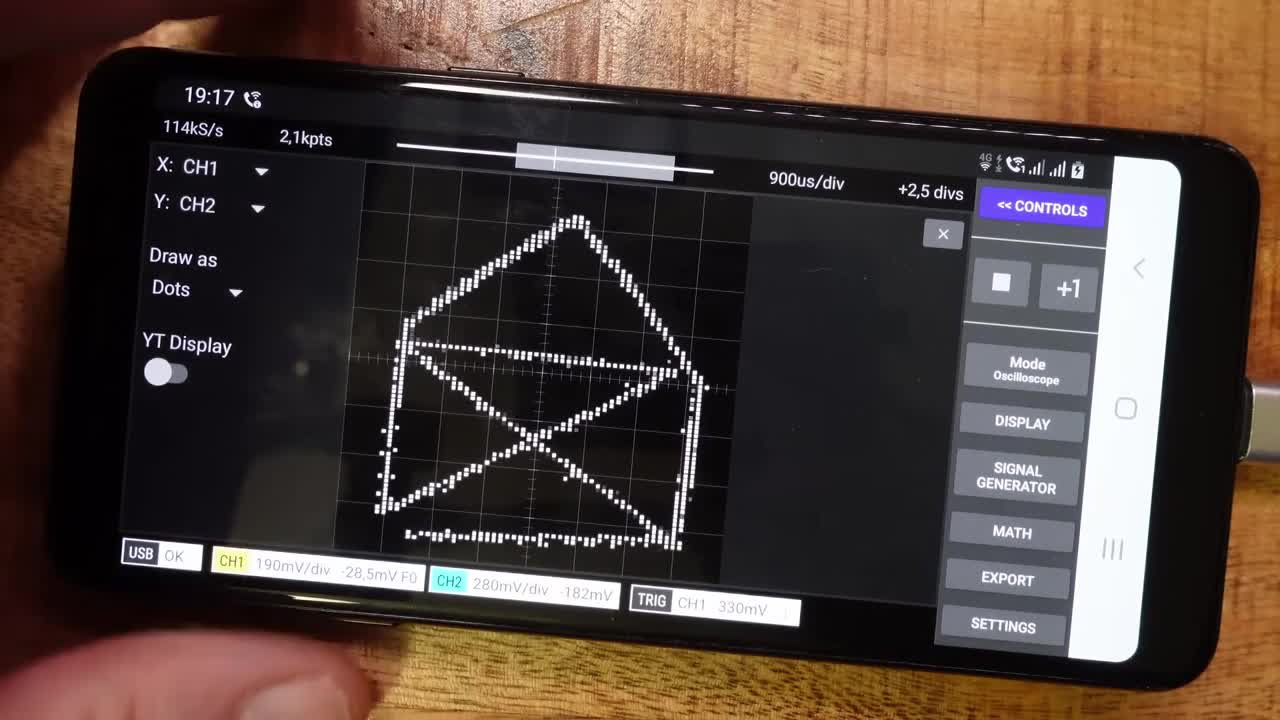

youtube.com

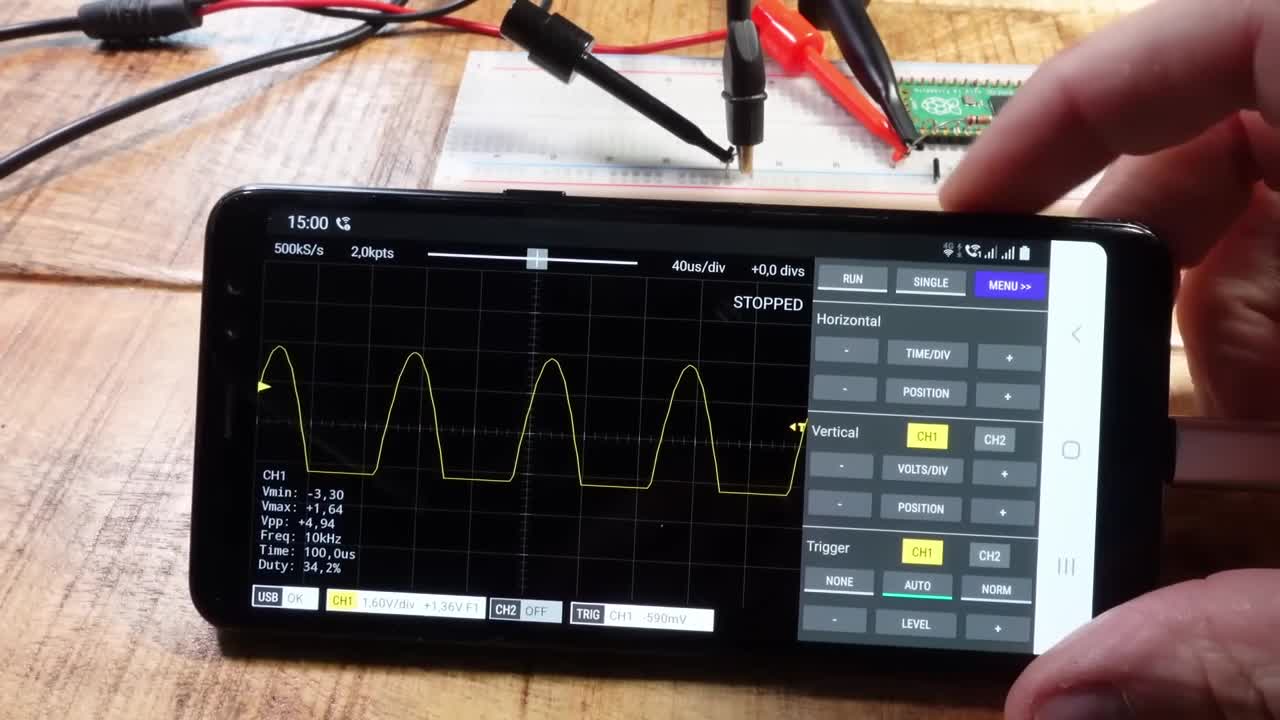

youtube.com

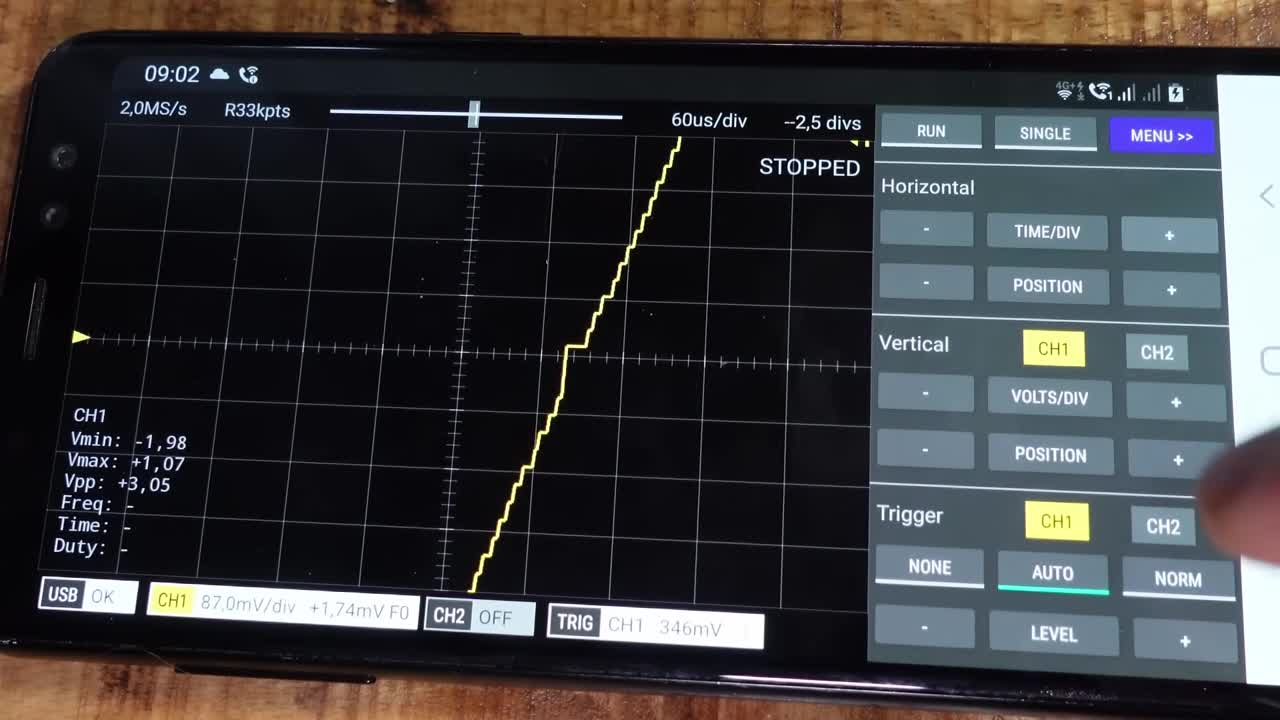

youtube.com
youtube.com

Start here

Navigation into the creator’s own docs — we don’t rewrite the guide, we route you to the source.

  1. 1.Read the Hackaday.io project page and review the schematic to understand the circuit before ordering anything (The schematic and assembly notes are here; no separate repo)
  2. 2.Source the components from the BOM — op-amp, relays, resistors, protection diodes, BNC connectors — and either export Gerbers from the KiCad files for a PCB or build it on perfboard (Use the published bom.csv; Mouser or Digi-Key will have everything)
  3. 3.Install the Scoppy app on your Android device and flash the Scoppy firmware to the Pico before assembling the front-end board, to confirm the basic setup works(Test the USB connection and app first; easier to debug before adding hardware)
  4. 4.Solder the front-end board (or build it on perfboard), check continuity and shorts before powering it(Mostly through-hole parts; use adapter boards for the few SMD ones)

Resources

Documentation, files and community threads for this build — we link straight to the original sources and never rehost the creator’s files.

KNOWN ISSUES

  • The few SMD parts (two small protection diodes and the MAX860 charge pump) are the tricky bit; the author suggests adapter boards so even those can go on perfboard. Everything else is through-hole.
  • The BOM lists values and footprints but not supplier part numbers, so double-check voltage ratings and packages when you order.
  • The Pico's ADC bandwidth limits the scope to around 500 kHz usable; if you expect to probe fast digital signals or RF, this will not do what a £200 bench scope does.
  • The Scoppy app and firmware are separate projects; if either updates and breaks compatibility, you are debugging a toolchain you did not write.
  • Without the front-end board, the Pico can only see 0-3.3V signals; if you accidentally probe mains-referenced or negative voltages before building the protection circuit, you will destroy the Pico instantly.
  • The project does not state a licence; assume it is for personal use only unless you contact the creator.

Can I use this without building the front-end board?

Yes, but only for 0-3.3V logic-level signals. You are limited to probing microcontroller pins and cannot measure anything mains-referenced, negative, or above 3.3V without destroying the Pico. The front-end is what makes it a general-purpose scope.

What bandwidth and sample rate does this actually achieve?

Scoppy pushes the Pico's ADC to up to 2 megasamples per second, so sine waves up to roughly 600 kHz display well, and square or sawtooth signals look good up to about 100 kHz. Fine for audio, power supplies and slow digital; not for high-speed serial or RF.

Do I need a specific Android device?

Any Android phone or tablet that supports USB OTG and can run the Scoppy app. An old device from a drawer is fine; the app is not demanding.

Where do I get the PCB fabricated?

The KiCad files are on the Hackaday page; export Gerbers in KiCad and upload them to JLCPCB, PCBWay or any other board house — or build the mostly through-hole circuit on perfboard.

Can I use this for mains voltage measurements?

No. The front-end is designed for low-voltage electronics; it is not isolated and has no high-voltage protection. Probing anything mains-referenced will destroy the board and the Pico, and may injure you.
