TURN A LASER CUTTER INTO A PRINTER THAT BUILDS FROM POWDER

Selective laser sintering needs no support structures because the powder itself holds the part up, but the machines cost hundreds of thousands. Rice University published the plans to turn a CO2 laser cutter into one: a powder bed module, a 3D-printer controller board and modified firmware.

by Miller Lab, Rice University

WorkshopOpen-hardware

Built with3D printing

difficulty
●●●●●
time
several weekends
license
GPL-3.0
repo
repo FINISHED287 stars
1
Jump to section

COMPAREE VERDICT

OpenSLS is a genuine research tool published by a university lab, not a weekend kit. It turns a CO2 laser cutter into a selective laser sintering 3D printer: a custom powder bed module spreads thin layers of powder, and the cutter's laser fuses each cross-section. To make that work, the cutter's own controller is replaced by a RAMBo 3D-printer board running modified Marlin firmware, and in the paper the stock 80 W tube had to be swapped for a 40 W tube that would fire at low power. Overhangs need no supports because unfused powder holds the part up. The 2016 PLOS ONE paper put entry-level commercial SLS at upwards of 400,000 dollars and says OpenSLS cost approximately 2,000 dollars plus the laser cutter, with a complete system under 10,000 dollars. That gap has narrowed: a benchtop Formlabs Fuse 1+ 30W now starts at about 24,649 dollars, but the difference is still large if you already own a cutter. The repository holds four revisions; R3 is the all-acrylic build for nylon or wax, R4 is a different machine for carbohydrate powder. The files include laser-cut DXF, printable STL, Marlin firmware, BOMs and a wiring diagram, but there is no assembly guide. You work from the files and the paper, and you need fabrication skills, a CO2 laser cutter you are willing to rewire, and patience. Powder handling is the other trap: fine powder is messy, potentially flammable, and demands ventilation. If you already run a laser cutter and want capabilities that did not exist at this price, the repository is gold. If you are new to lasers or 3D printing, start elsewhere.

GOOD TO KNOW

  • —GPL-3.0 licence, permits commercial use
  • —Four hardware revisions in the repository: R1 and R2 are archived legacy designs, R3 is the all-acrylic build for nylon or wax, R4 is the rebuild for carbohydrate powder tissue scaffolds
  • —R4 ships with DXF laser cutting files, STL 3D printed parts, Marlin firmware fork, bill of materials spreadsheet, and source CAD assembly
  • —The PLOS ONE paper from 2016 states build cost was approximately 2,000 dollars plus the laser cutter, and a complete system can be assembled for under 10,000 dollars
  • —No assembly manual or step-by-step guide — you work from the CAD, the BOM, and the paper
  • —Requires a functional CO2 laser cutter as the base machine, which is not included in the parts cost

Parts to buy

6 items

From our check of the build. Exact quantities and part numbers are in the creator’s BOM.

  • RAMBo controller boardFind
  • Stepper motorsFind
  • Leadscrews and motion partsFind
  • Powder spreader componentsFind
  • Acrylic sheet for laser cutting and miscellaneous hardwareFind
  • Nylon or polycaprolactone powderFind

Can I build this?

PrintSTL files for structural parts of the powder bed assembly, plus 3D printed fixtures
Buya RAMBo controller board, stepper motors, leadscrews and motion parts, powder spreader components, acrylic sheet for laser cutting and miscellaneous hardware per the BOM spreadsheet, plus nylon or polycaprolactone powder; possibly a lower-power laser tube if yours will not fire at a few watts
ToolsA functional CO2 laser cutter (the base machine this module attaches to), 3D printer for the STL parts, basic hand tools, ability to flash Marlin firmware, ventilation for powder handling
SkillsHigh — you must be comfortable working from CAD files and an academic paper with no step-by-step instructions, modifying Marlin firmware, fabricating and assembling precision motion components, and handling fine powder safely
TimeSeveral weekends minimum, potentially longer depending on sourcing and troubleshooting — this is a research platform, not a kit
Cost$$$, dominated by the CO2 laser cutter if you do not already own one (thousands), plus the ~2,000 dollar powder bed module parts and the initial powder supply
SafetyClass 4 laser hazard — CO2 lasers can cause instant eye damage and skin burns, require interlocked enclosures and proper safety glasses. Fine powder is a fire and inhalation hazard, demands adequate ventilation and dust control. Polycaprolactone and nylon sintering produce fumes. This is lab-grade equipment with lab-grade risks.

Build at your own risk. Projects involve tools, electronics and sometimes mains voltage — follow the creator’s safety notes.

More builds like this

All projects

Gallery

github.com
github.com
github.com
github.com
github.com
github.com
github.com
github.com

Start here

Navigation into the creator’s own docs — we don’t rewrite the guide, we route you to the source.

  1. 1.Read the PLOS ONE paper(DOI 10.1371/journal.pone.0147399 — this is the primary documentation and explains the design decisions, material choices, and process parameters)
  2. 2.Choose your revision(R3 for nylon or wax (general purpose), R4 for carbohydrate powder (tissue scaffolds). The revisions use different powder feed mechanisms.)
  3. 3.Open the CAD assembly(For R4 the source CAD assembly is your guide; for R3 work from the DXF and STL files, the photos, the wiring diagram and the PLOS ONE supporting information to understand how the module and the RAMBo board fit your laser cutter.)
  4. 4.Source parts from the BOM(The bill of materials spreadsheet lists every component; lead times on motion hardware can be long)

KNOWN ISSUES

  • You are not just adding a module to your laser cutter, you are taking over its electronics. In the paper the cutter's controller was replaced by a RAMBo 3D-printer board running modified Marlin, the cutter's XY motor lines were re-wired to it, and the stock 80 W tube had to be swapped for a 40 W tube because it would not fire below 2.5 W, which is the low-power range sintering needs. Expect to void the cutter's warranty and lose its normal cutting workflow, and if you do not already own a cutter, the cost savings shrink.
  • There is no step-by-step assembly manual. You work from the CAD, the BOM, and the academic paper. If that sentence sounds hard, it is.
  • Powder handling is messy and hazardous. Fine nylon or polycaprolactone powder gets everywhere, is potentially flammable, and requires proper ventilation. Underestimate this and you will regret it.
  • The 2016 paper's price anchors are stale. Entry-level commercial SLS is no longer 400,000 dollars — benchtop machines now list around 25,000 dollars, so the gap is smaller than the headline suggests.
  • Marlin firmware must be configured for your specific hardware. The repository includes a fork, but you will need to adapt pin assignments and motion settings.
  • First prints will fail. Sintering requires precise temperature control, layer thickness, and laser power. Budget time for calibration and expect wasted powder.

Which revision should I build?

R3 if you want to sinter nylon or wax for general mechanical parts. R4 if you are specifically interested in carbohydrate powder for tissue engineering scaffolds. The powder feed mechanisms differ. Do not mix them.

Can I use this with a diode laser or a fibre laser?

No. The design is for CO2 lasers specifically, which operate at a different wavelength and power level. The sintering process depends on CO2 laser characteristics.

How much does the powder cost?

The project does not give a powder price; check the materials listed in the BOM and the paper's methods with current suppliers. Budget for more powder than you think, because the whole build volume has to be filled and powder reused many times degrades.

Is this actually cheaper than buying a commercial SLS printer now?

It depends. The 2016 paper compared against 400,000 dollar industrial machines. Today, a Formlabs Fuse 1+ 30W lists around 24,649 dollars. If you already own a laser cutter, OpenSLS is still far cheaper. If you have to buy the cutter, the gap narrows significantly and you lose the warranty and support.

What can I actually print with this?

The PLOS ONE paper demonstrated nylon structures with sub-millimetre features and dramatic overhangs, plus polycaprolactone lattices for bone tissue engineering. This is functional prototyping and research hardware, not production manufacturing.

Community builds

No community builds yet — be the first, we feature the best ones.

Discussion1

FROM THE COMPAREE TEAM

The 2016 paper stated the build cost was approximately 2,000 dollars plus the laser cutter, with a complete system under 10,000 dollars, while entry-level commercial SLS was upwards of 400,000. Today a benchtop Fuse 1+ lists around 24,649 dollars — still a large gap if you already own a CO2 cutter. If you have one, would you try this?

CompareeTEAM2mo agoedited

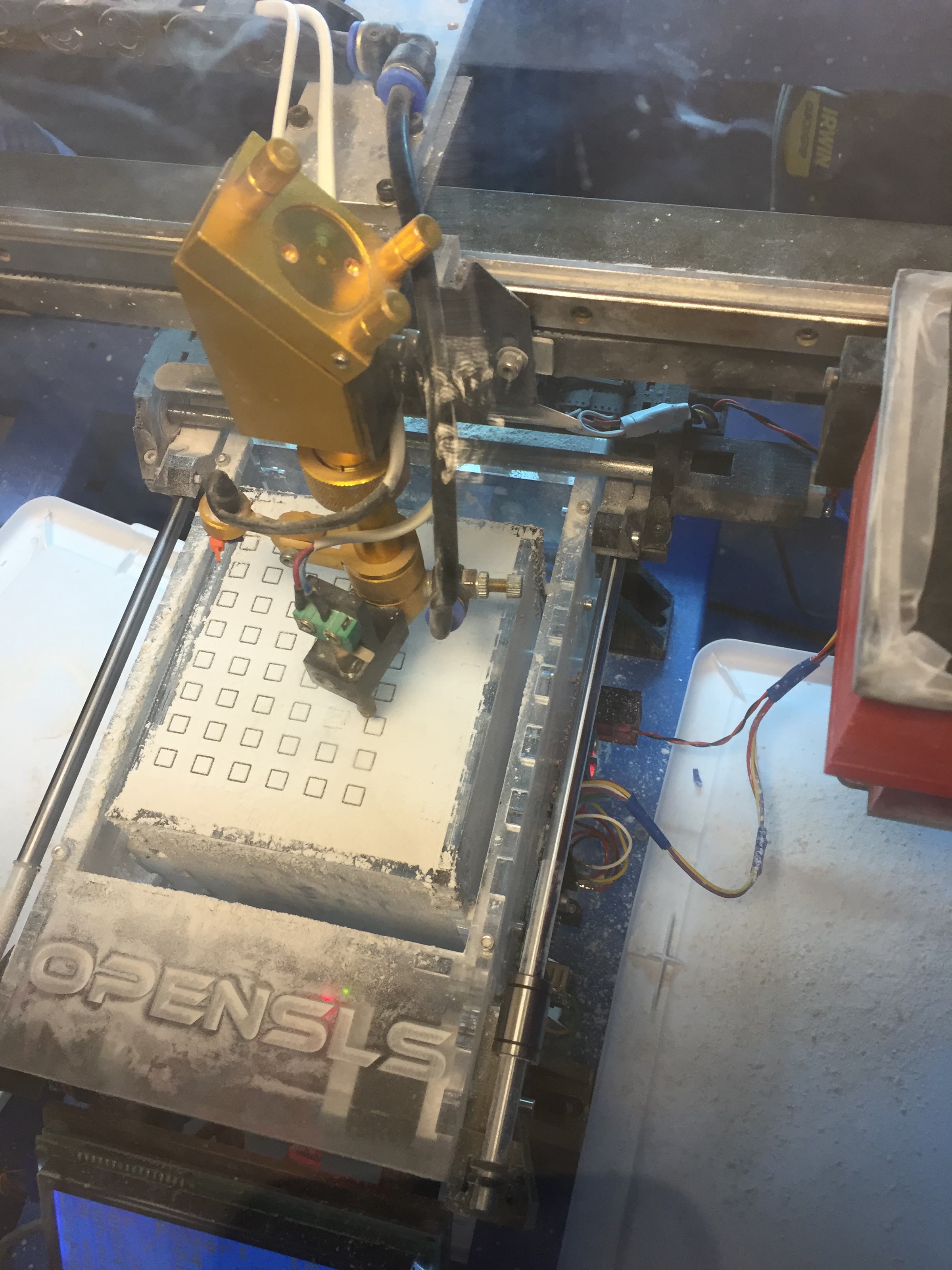

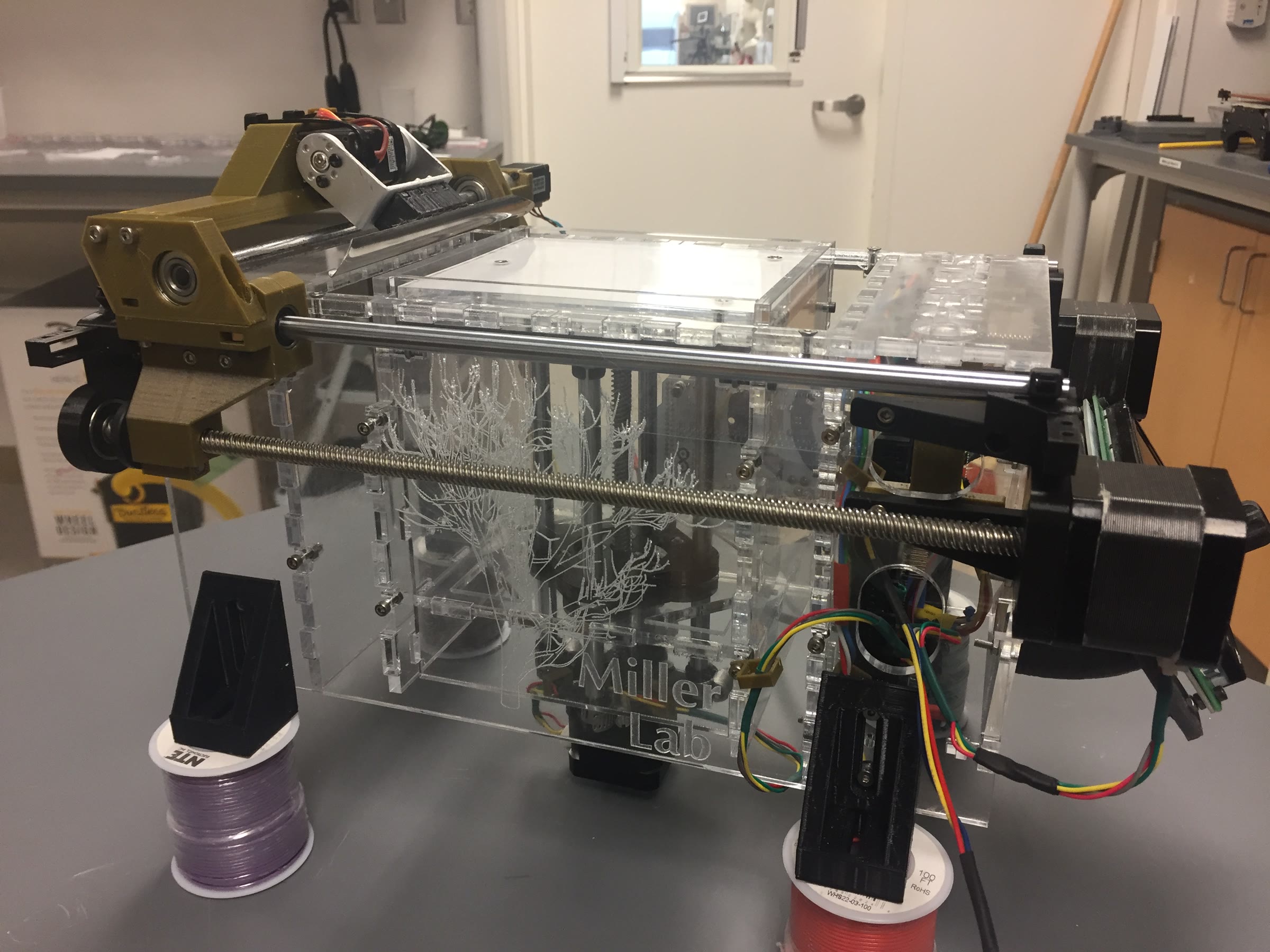

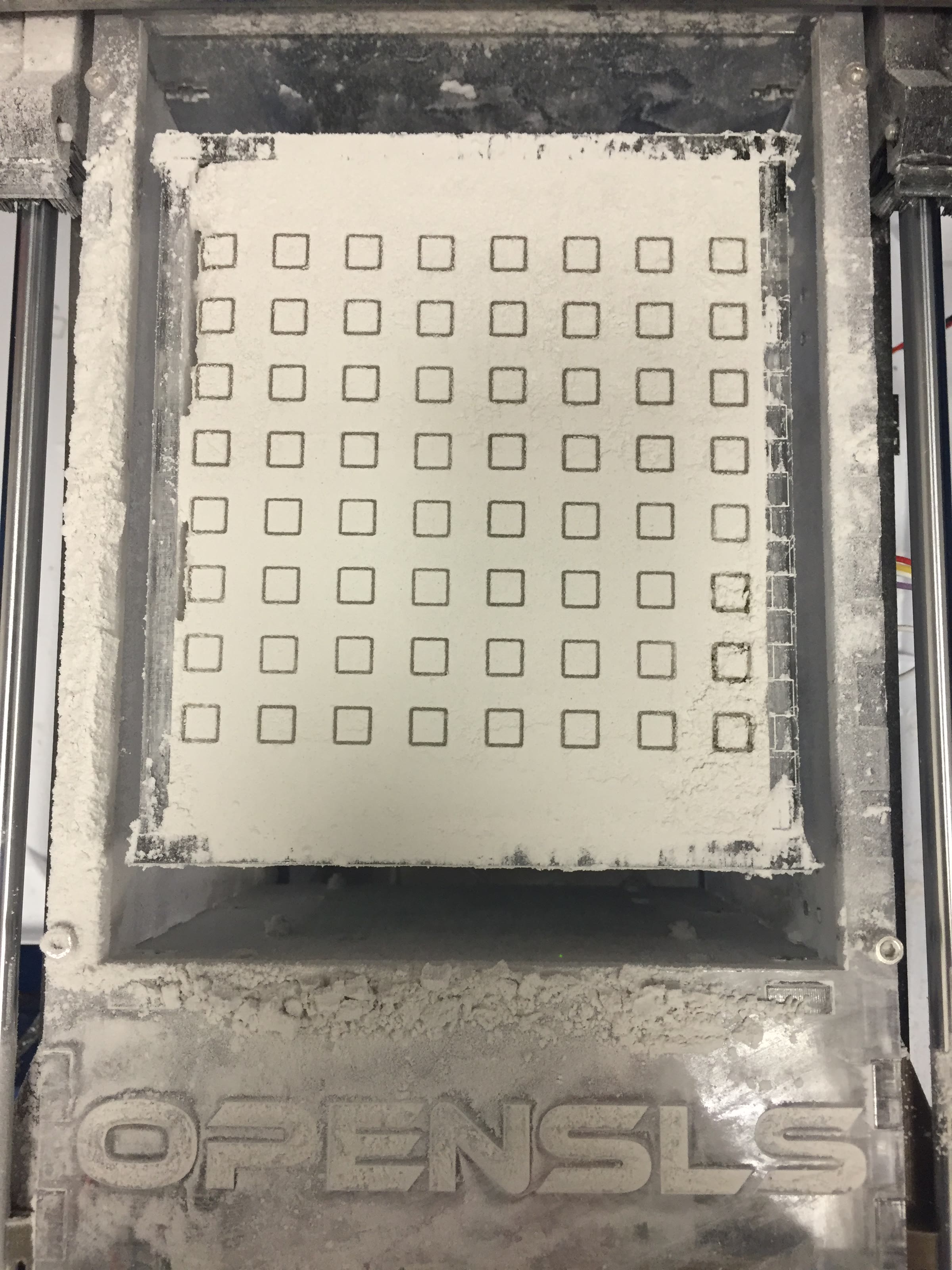

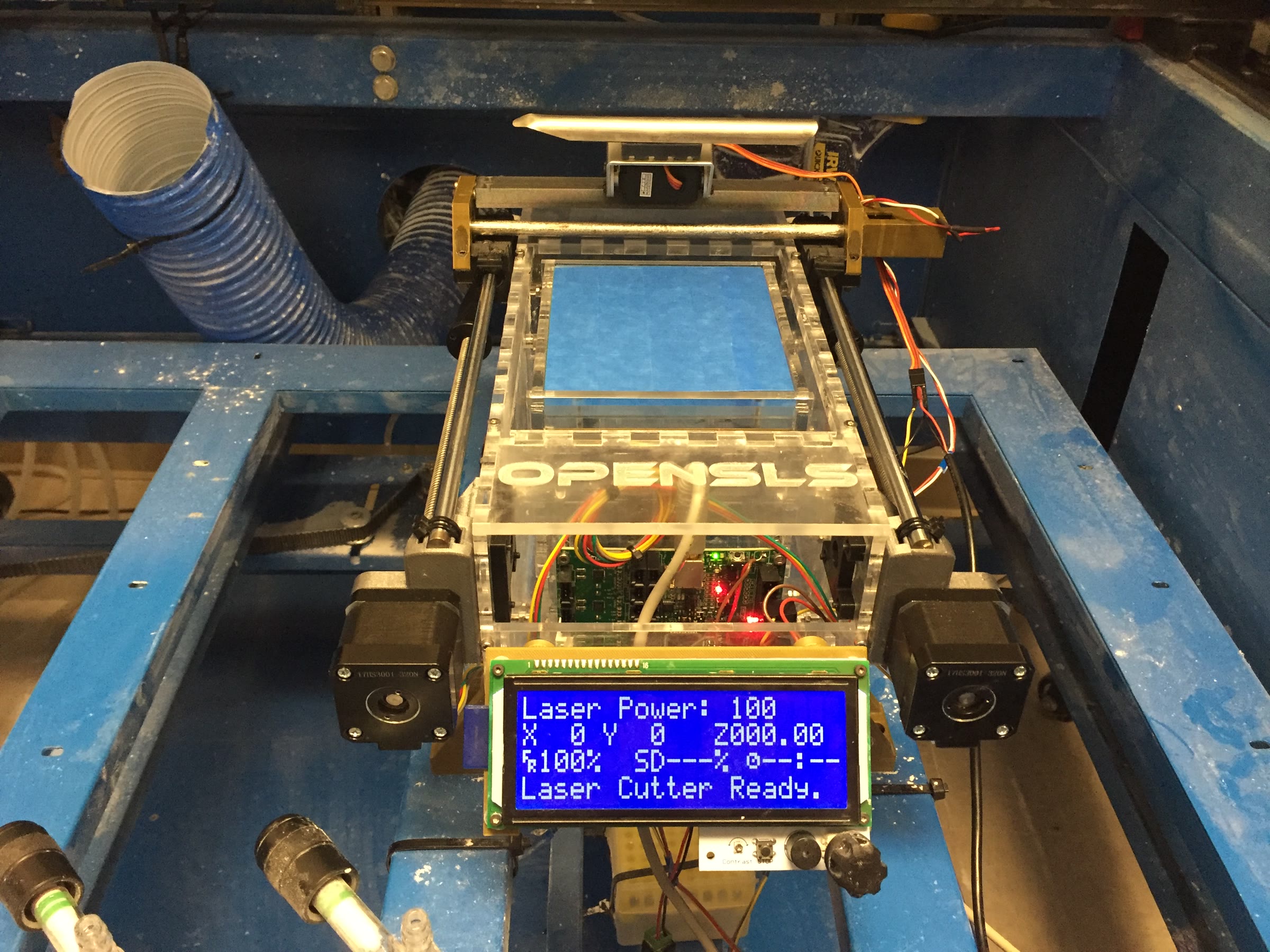

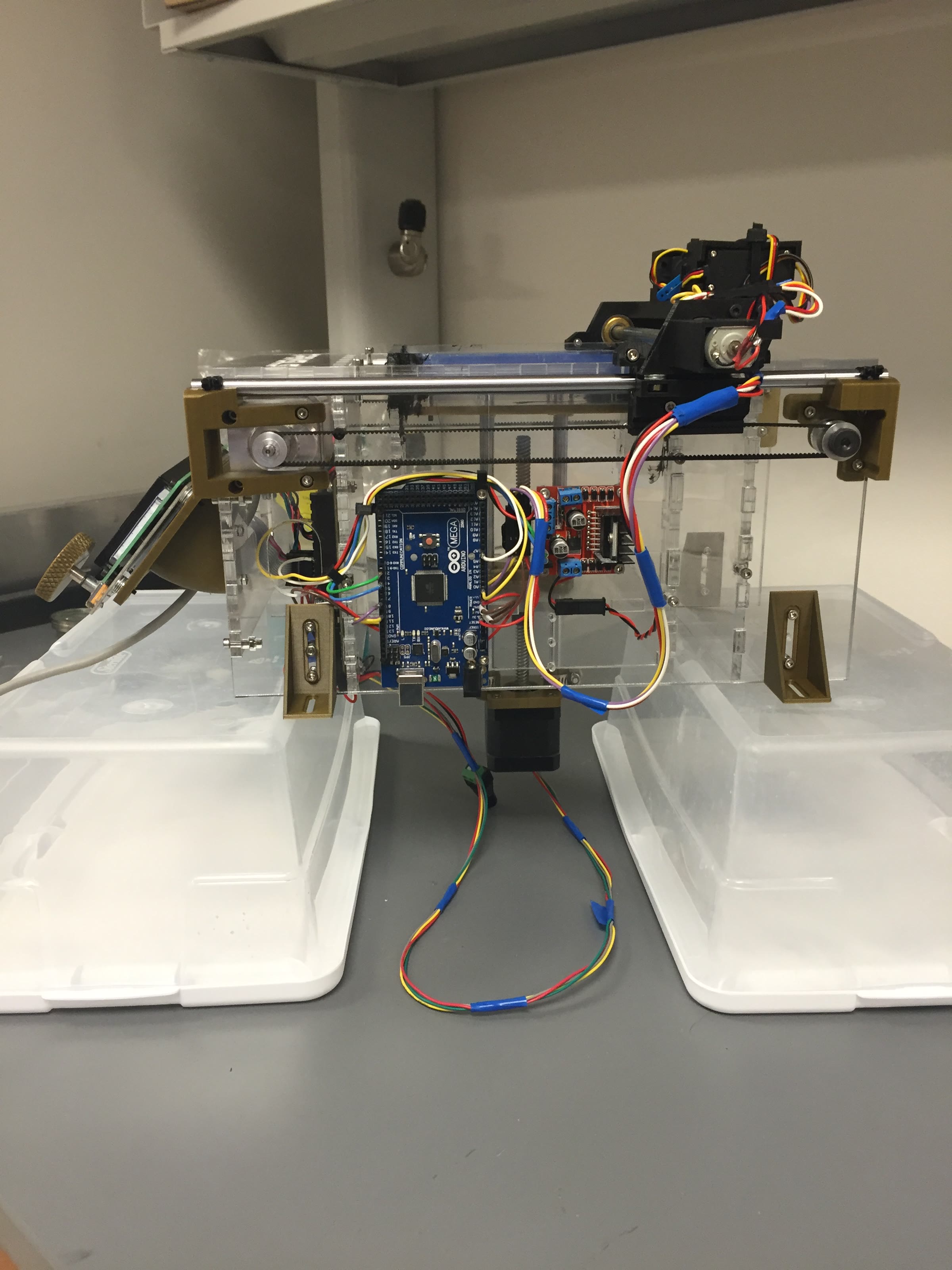

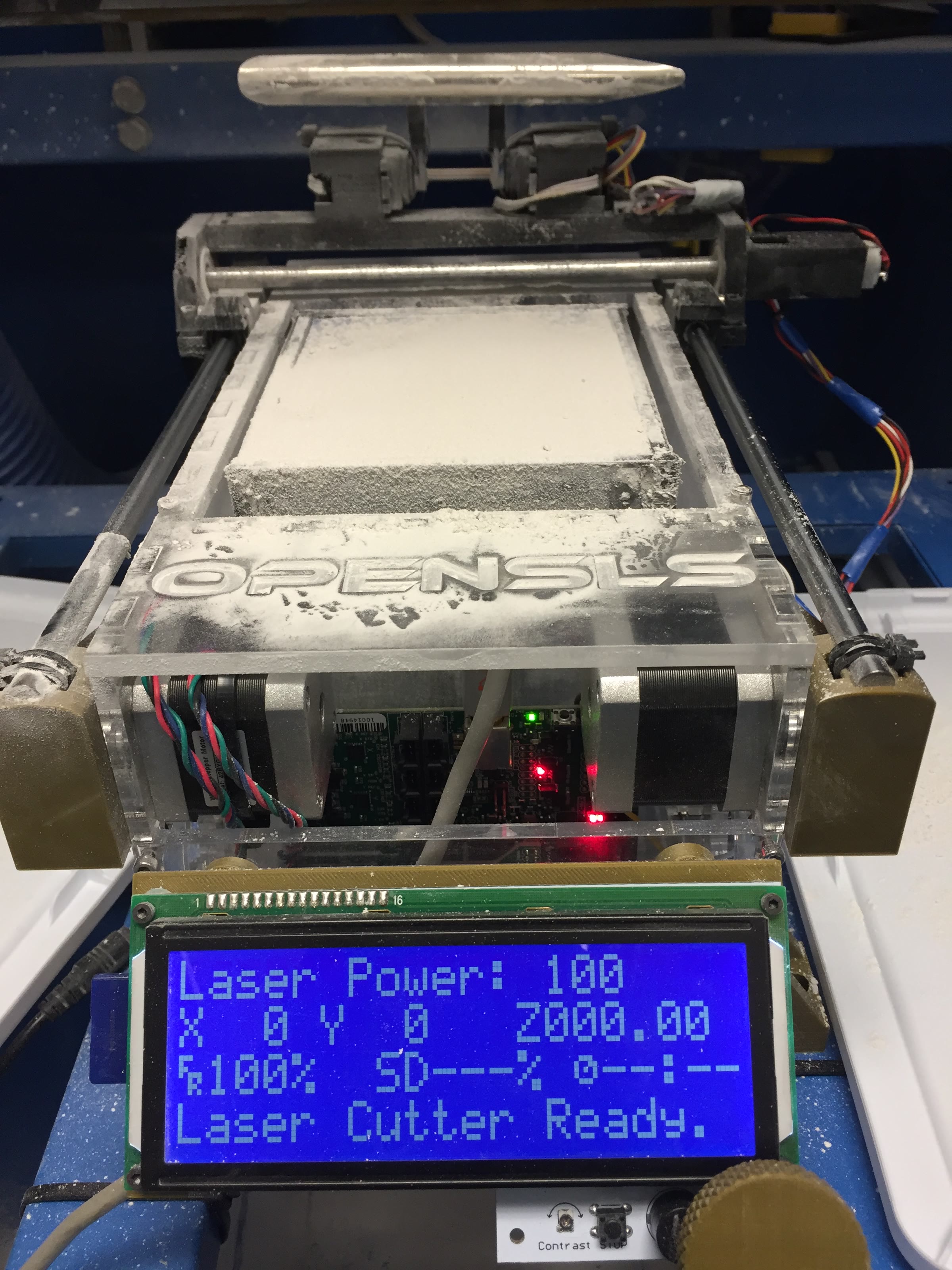

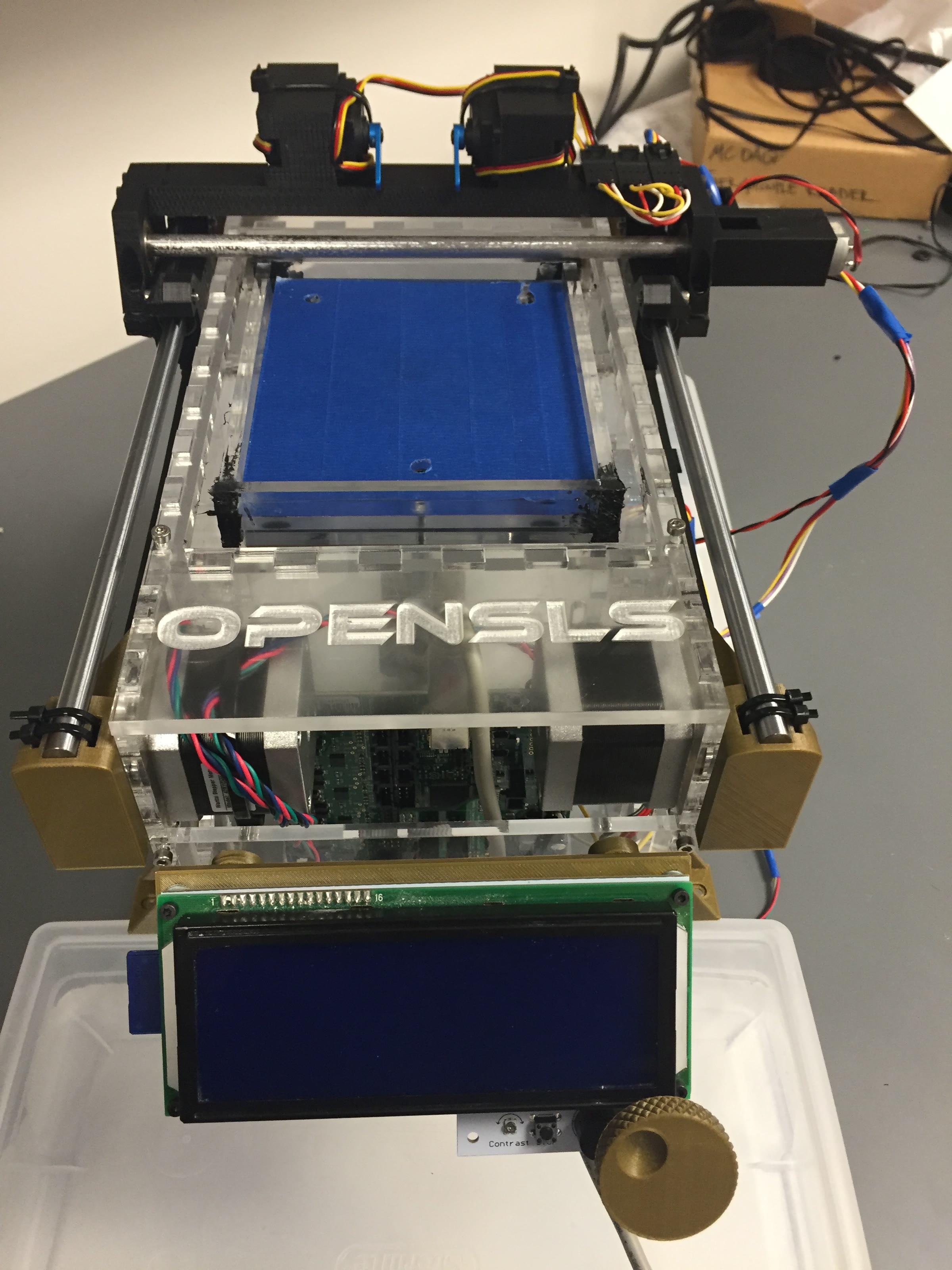

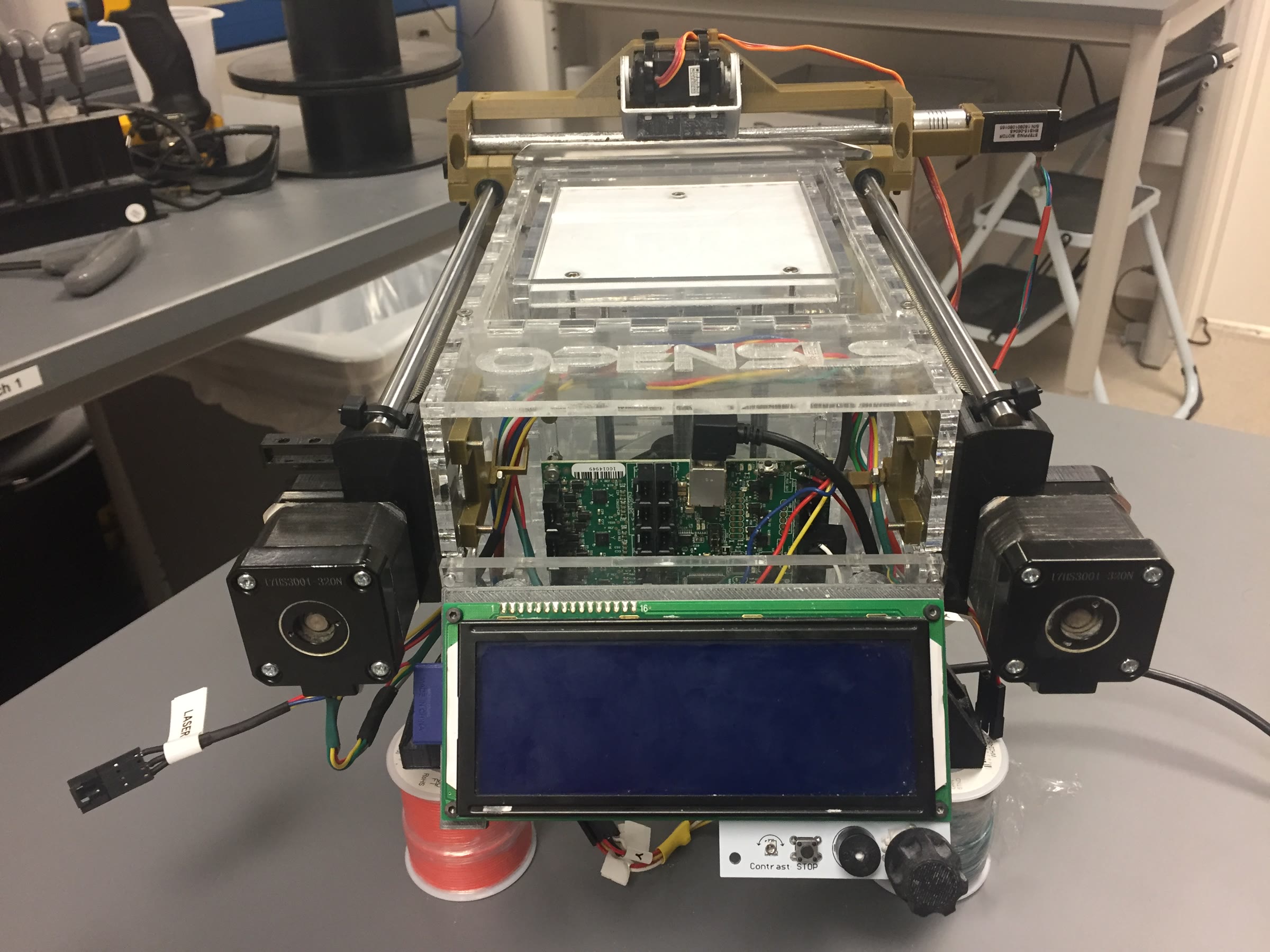

Practical notes from our verification: the repository holds four revisions but no assembly guide — you work from the CAD files, the BOM spreadsheet, and the 2016 PLOS ONE paper (DOI 10.1371/journal.pone.0147399). The photographs on this page are the R4 carbohydrate powder revision, not the R3 nylon build, and the two use different powder feed mechanisms. The paper's 400,000 dollar commercial price anchor is from 2016; benchtop SLS has moved downmarket since then, with the Formlabs Fuse 1+ 30W now listing around 24,649 dollars, so the gap is smaller than the headline but still significant if you already own a laser cutter. The single biggest non-obvious requirement is proper powder handling — fine powder is messy, flammable, and needs real ventilation. This is a research platform, not a plug-and-play kit, and the safety risks are lab-grade. Correction (4 October 2026): we re-checked this page line by line against the project's own repository, documentation and videos, and fixed errors in earlier versions.

Miller Lab, Rice University

OpenSLS was developed in the lab of Jordan S. Miller at Rice University to make selective laser sintering accessible for research. The original R1 and R2 designs were by Andreas Bastian. R3 was designed by Ian Kinstlinger, Anderson Ta, and David Yalacki. R4 was designed by Ian Kinstlinger and David Yalacki. The work was published in PLOS ONE in 2016 to demonstrate that industrial 3D printing processes could be brought within reach of university labs and well-equipped makerspaces.
