YOU CAN BUILD THE MACHINE THAT SPINS THREAD FROM SCRATCH
The smallest commercial wet spinning system costs 200,000 pounds and needs a five-by-two-metre floor; this modular lab version costs about 600 pounds and runs from a single socket.
by Joseph A. Houghton and Richard S. Blackburn
Built withESP32Arduino3D printing
- difficulty
- ●●●●●
- time
- several weekends
- license
- CC BY 4.0
- repo
- repo FINISHED
●●●●● · several weekends · CC BY 4.0 · repo FINISHED
WHAT YOU’LL NEED
Jump to section
COMPAREE VERDICT

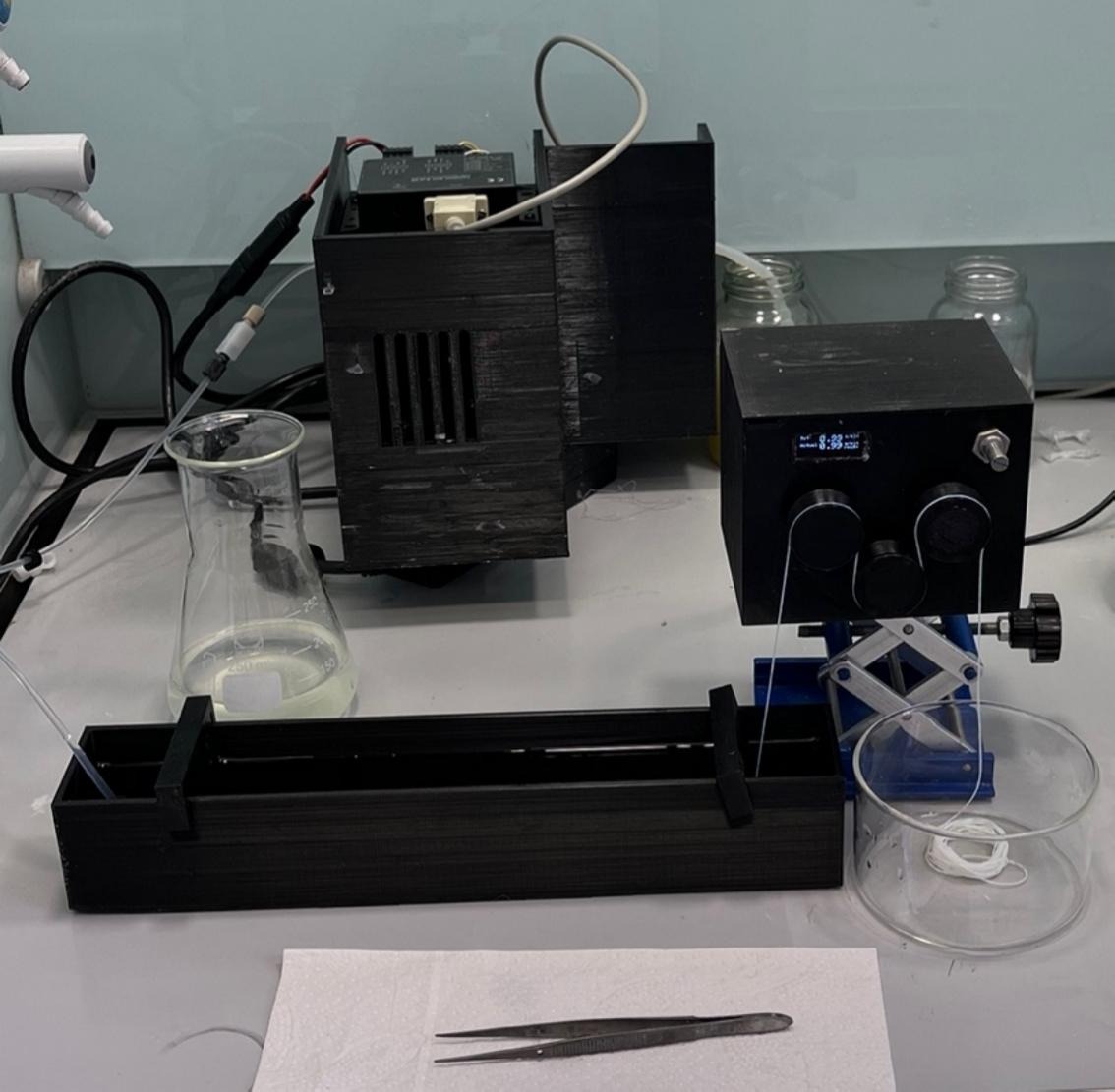

This is a complete open-source wet spinning line: the machine that turns dissolved polymer into textile fibre the way viscose, acrylic and elastane are made industrially. Joseph Houghton and Richard Blackburn at the University of Leeds published it in HardwareX in 2026 after using it for casein, alginate and cellulose fibres and coloured spools. The system is modular — interchangeable coagulation baths, driven rollers, a drying rig and a take-up winder, each with its own Arduino (or an ESP32 for the rastering take-up) so every speed is independent. The dataset contains every printed part in STL and STEP, the bill of materials, all firmware and the PCB designs, and the paper walks through the build step by step. Everything is CC BY 4.0. The paper compares it to the Fibre Extrusion Technology lab system, which costs 200,000 pounds before customisation and fills a five by two metre bench; the open version costs 500 to 700 pounds in materials, fits under a square metre and runs from one mains socket. The single biggest catch is honest: the pump is not part of that cost, and syringe pumps start around 1,000 pounds, though the paper points to HardwareX pump designs as alternatives. The second catch: if you work with hazardous or volatile solvents you need a fume hood — the rig is sized to fit inside one.
IN THE REPO
GOOD TO KNOW
- —65 files on Mendeley Data under CC BY 4.0: 29 STL, 29 STEP, BOM spreadsheet, 3 Arduino sketches, 3 PCB packages.
- —Commercial use is allowed by the CC BY 4.0 licence.
- —The pump is NOT included and syringe pumps start around 1,000 pounds; HardwareX has published buildable pump designs separately.
- —The dataset holds the files; the HardwareX paper has the step-by-step build instructions and an example spinning procedure.
- —Solvent handling requires a fume hood, stated by the authors.
- —You are building a working wet spinning line that produces continuous textile fibre from dissolved polymer; the dataset gives you the mechanical stages and control boards to do it.
Parts to buy
9 itemsFrom our check of the build. Exact quantities and part numbers are in the creator’s BOM.
- Arduino Nano Every and Arduino Nano ESP32 boardsFind
- Stepper motorsFind
- 488:1 DC gearmotors with magnetic encodersFind
- DisplaysFind
- PotentiometersFind
- Custom PCBs (KiCad files provided)from the repo files
- 12 V supply with the printed power junctionFind
- Mechanical hardwareFind
- Syringe pump (not included, from around 1,000 pounds)Find
Can I build this?
Build at your own risk. Projects involve tools, electronics and sometimes mains voltage — follow the creator’s safety notes.
More builds like this
All projectsGallery
Start here
Navigation into the creator’s own docs — we don’t rewrite the guide, we route you to the source.
- 1.Read the HardwareX paper (Describes the wet spinning process, the commercial reference point, and the modular design decisions.)
- 2.Download the 65-file dataset from Mendeley Data(DOI 10.17632/776w7sj2f2.1 — contains all STL/STEP parts, the BOM spreadsheet, the Arduino sketches and the KiCad PCB projects.)
- 3.Source or build a syringe pump(Not included in the project; commercial pumps start around 1,000 pounds, or check HardwareX for published open pump designs.)

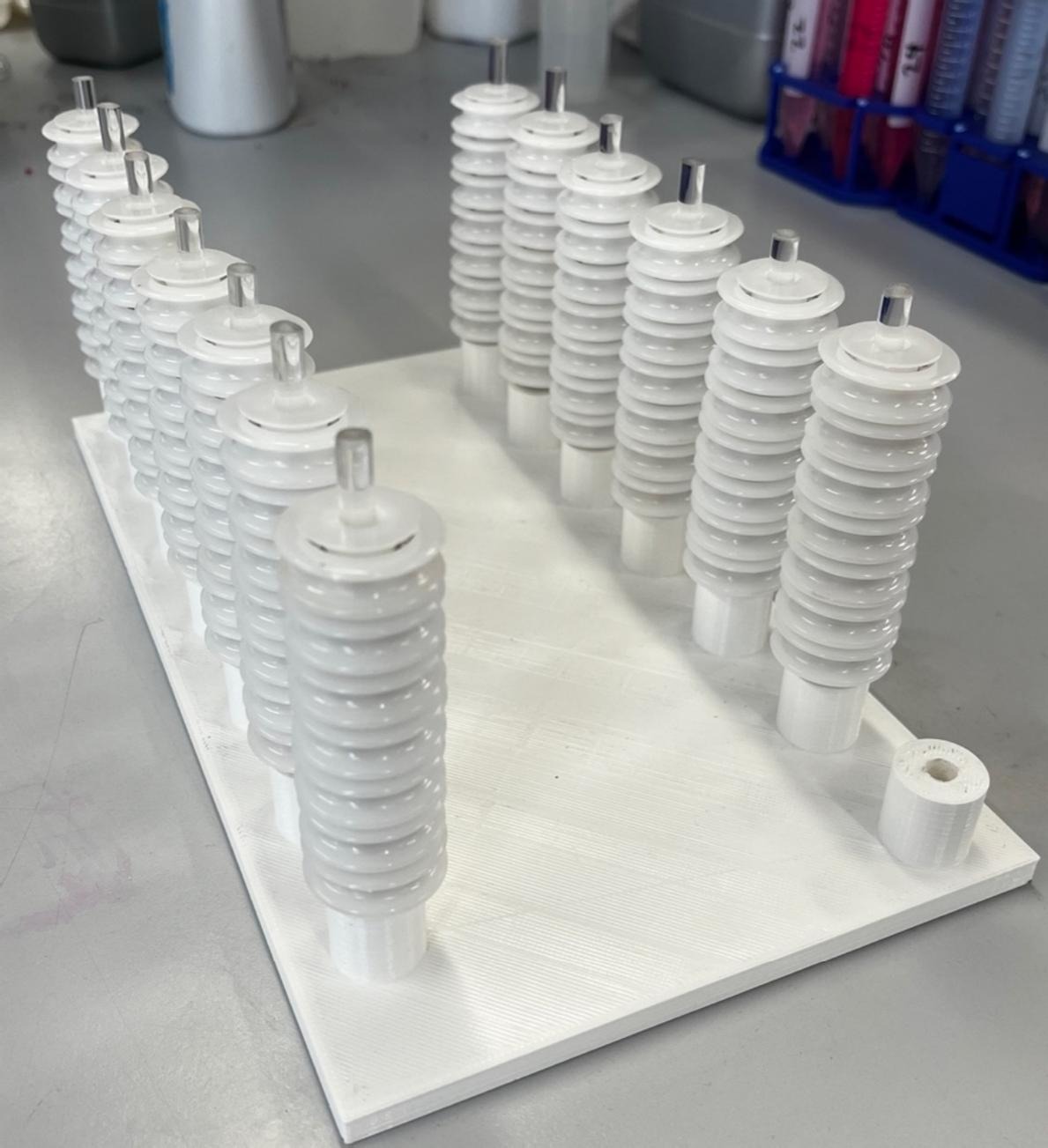

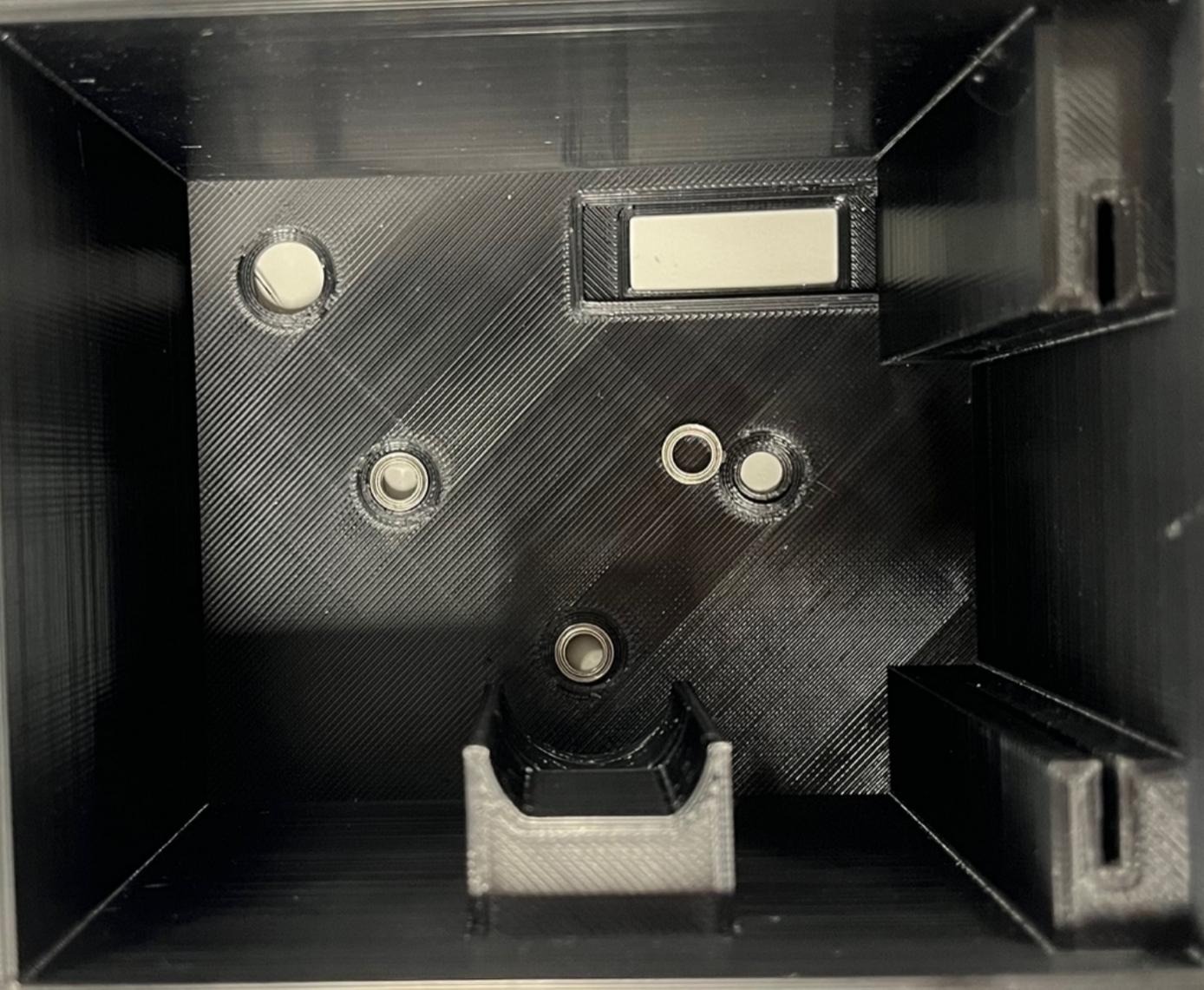

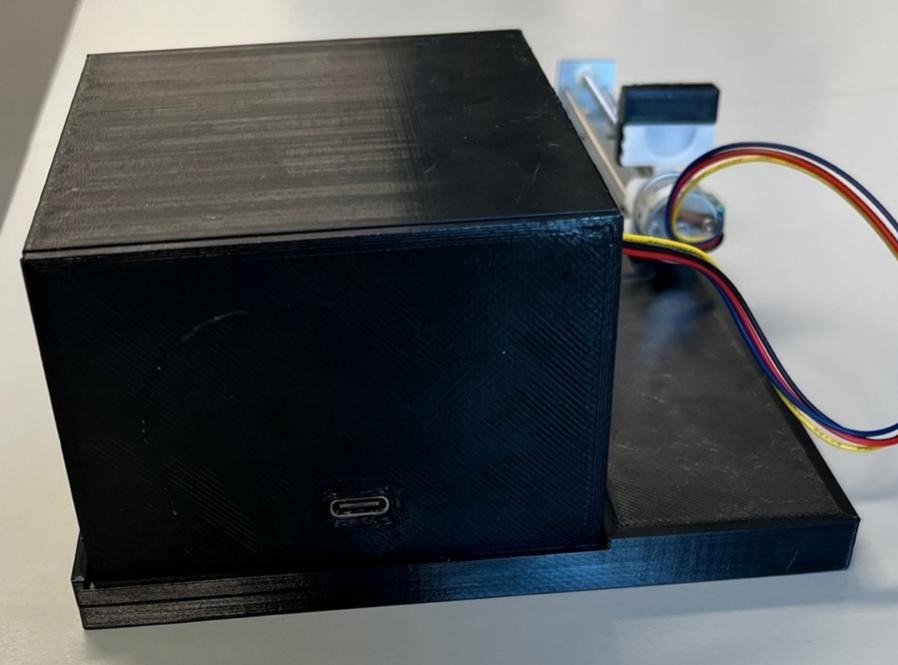

- 4.Print the bath, roller and drying modules(29 STL files; start with one bath size and its matching roller set to test fitment.)

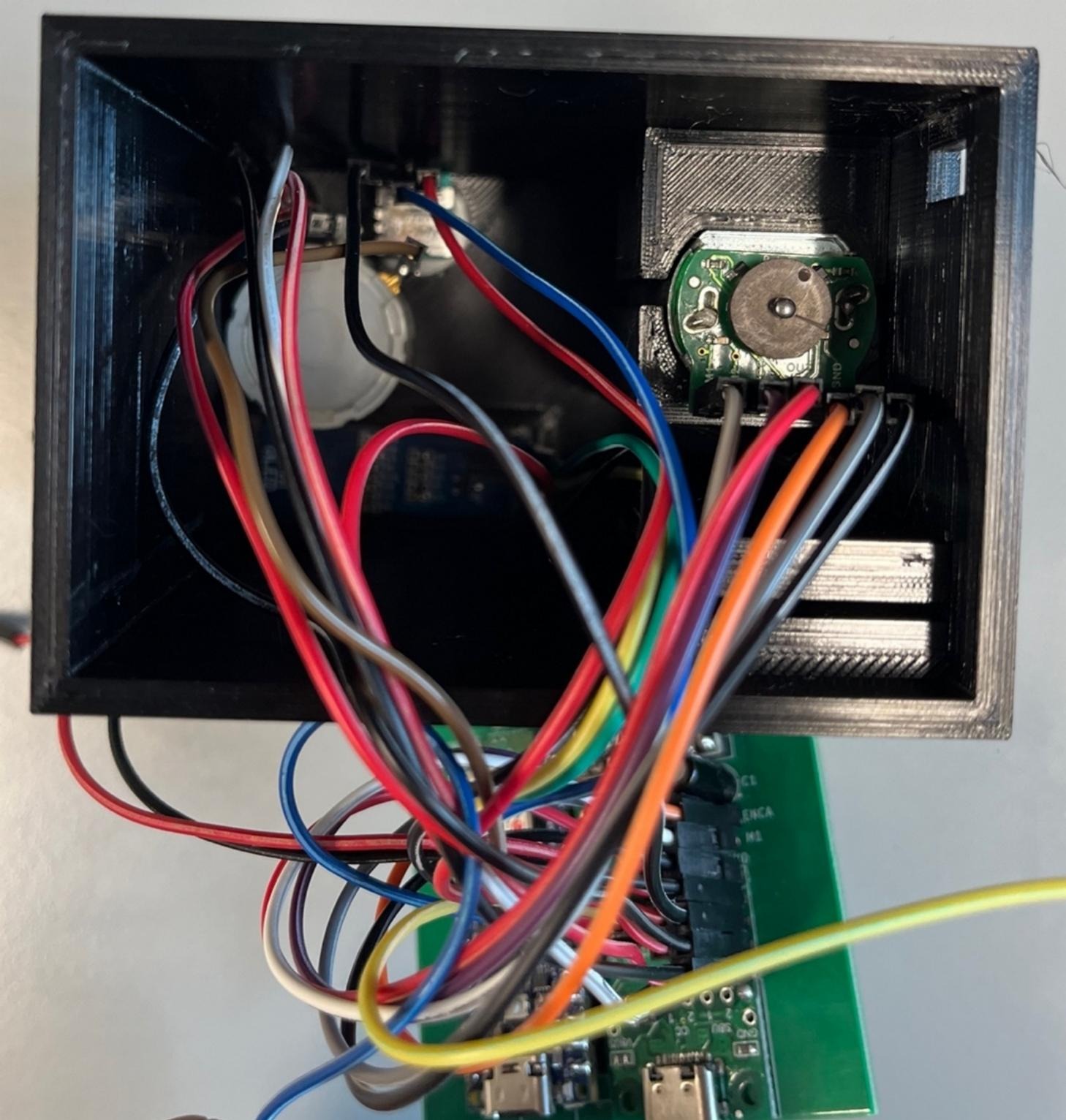

- 5.Order PCBs and electronics per the BOM(Three KiCad PCB designs (module board, barrel-jack variant, power junction), Arduino Nano Every and Nano ESP32 boards, a stepper motor, 488:1 DC gearmotors with encoders, small 0.91-inch screens and potentiometers.)
KNOWN ISSUES
- The pump is NOT part of the 500-700 pound build cost — syringe pumps start around 1,000 pounds, and that is before any polymer or solvent. Budget accordingly before you start printing.
- Solvents mean you need a fume hood; this is not a kitchen-table build, it is for a university lab or a properly ventilated workshop.

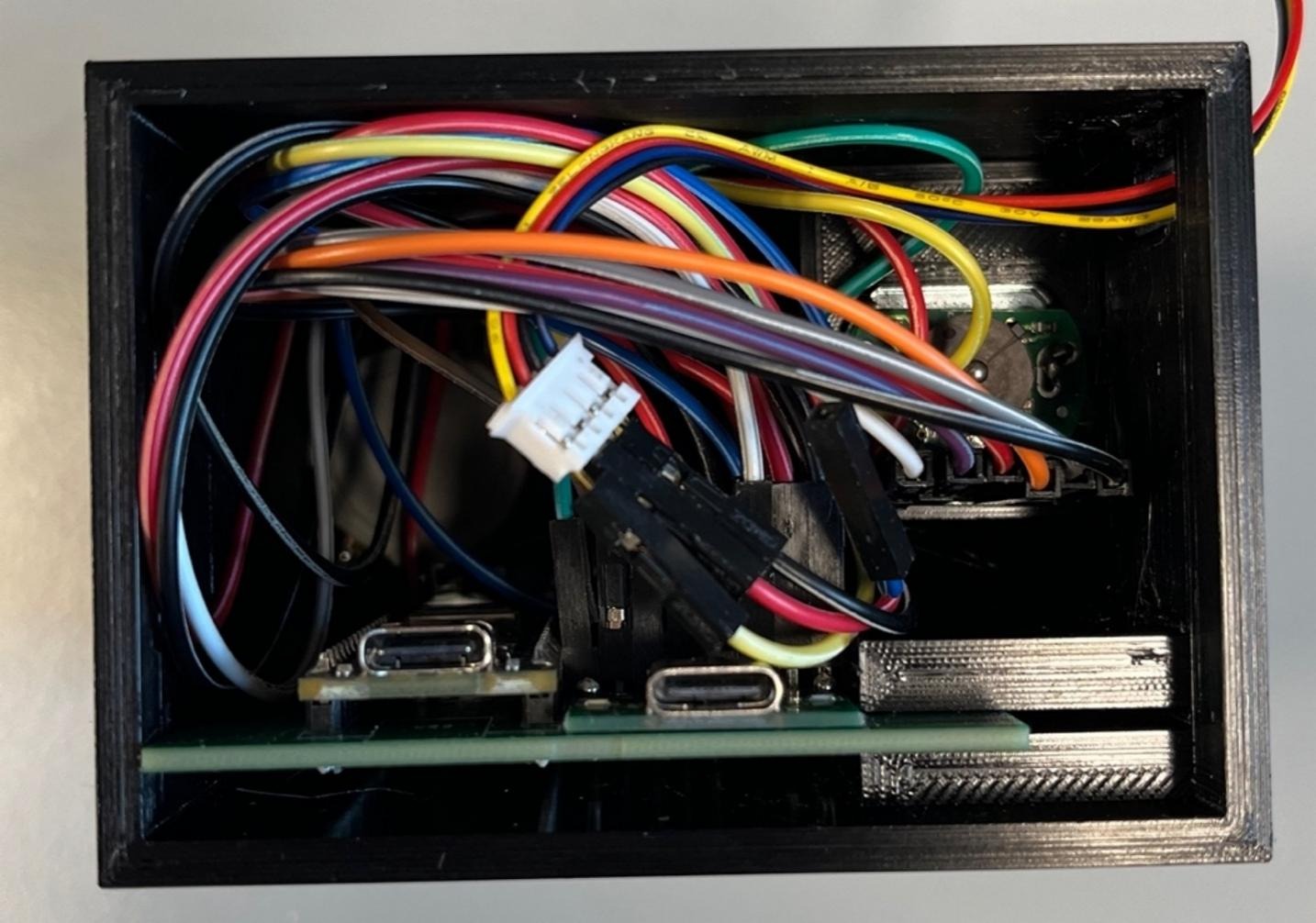

- Assembly is described step by step in the paper's build-instructions section, not in the dataset itself — keep the paper open next to the files while you print, solder and wire each module.

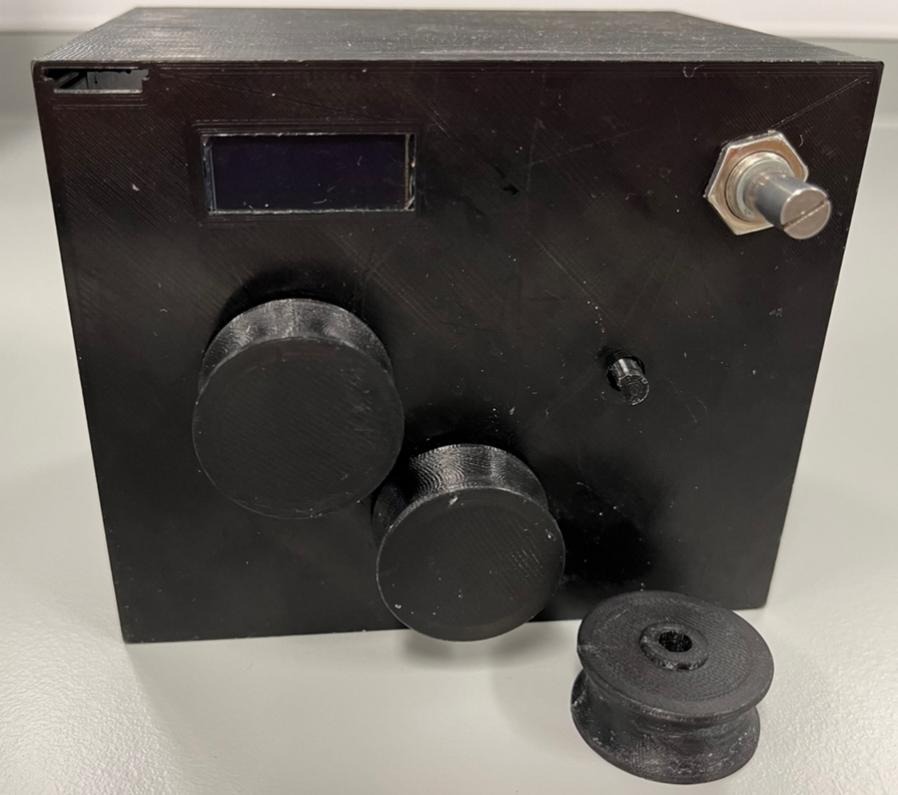

- Each module has its own microcontroller and speed control; if one stage runs too fast or too slow, the fibre breaks or bunches, and tuning that takes time.
- The paper gives one full recipe (casein fibre) and the spinning procedure; anything beyond that, including the dyeing chemistry, means reading the authors' separate publication or bringing your own chemistry knowledge.
- No GitHub repository means no issue tracker, no community fixes, no firmware updates — you are working directly from the published snapshot.
What does the 500-700 pound cost actually cover?
The printed modules, all electronics (Arduino, ESP32, motors, encoders, displays, PCBs), mechanical hardware and assembly materials. It does NOT include the syringe pump (another 1,000 pounds or more), the polymer or solvents, or the fume hood.
Can I build this without a fume hood?
It depends on the chemistry. The rig is designed to fit inside a standard fume hood for hazardous or volatile solvents; the paper's worked example spins casein dissolved in dilute sodium hydroxide, which still needs normal lab chemical precautions.
Is there a single commercial system I can compare this to?
The paper names the Fibre Extrusion Technology (FET, Leeds) lab system as the smallest commercial option: 5 x 2 metre footprint, 65 litre bath, 200,000 pounds base price before any acid-resistant coating or other customisation.
What skills do I actually need?
Multi-part 3D printing with tight tolerances, PCB soldering, flashing Arduino and ESP32 boards, mechanical assembly where alignment matters, and safe chemical handling. This is advanced even by open-hardware standards.
Can I use this commercially?
Yes, the CC BY 4.0 licence allows commercial use as long as you give attribution. The paper and dataset are both under that licence.
Where do I get the polymer and solvent?
The paper includes a complete worked example — a casein spin dope dissolved with sodium hydroxide, plus the spinning procedure. For other polymers (the authors also ran cellulosics and alginates) you source the polymer and solvents yourself and need some materials-science knowledge.
Community builds
No community builds yet — be the first, we feature the best ones.
Discussion1
FROM THE COMPAREE TEAM
The commercial reference point is a system costing about 200,000 pounds with a 5 by 2 metre footprint; this modular version costs roughly 500 to 750 pounds in materials (pump not included) and fits in a fume hood. If you had access to a fume hood and a syringe pump, what would you spin first?
Joseph A. Houghton and Richard S. Blackburn

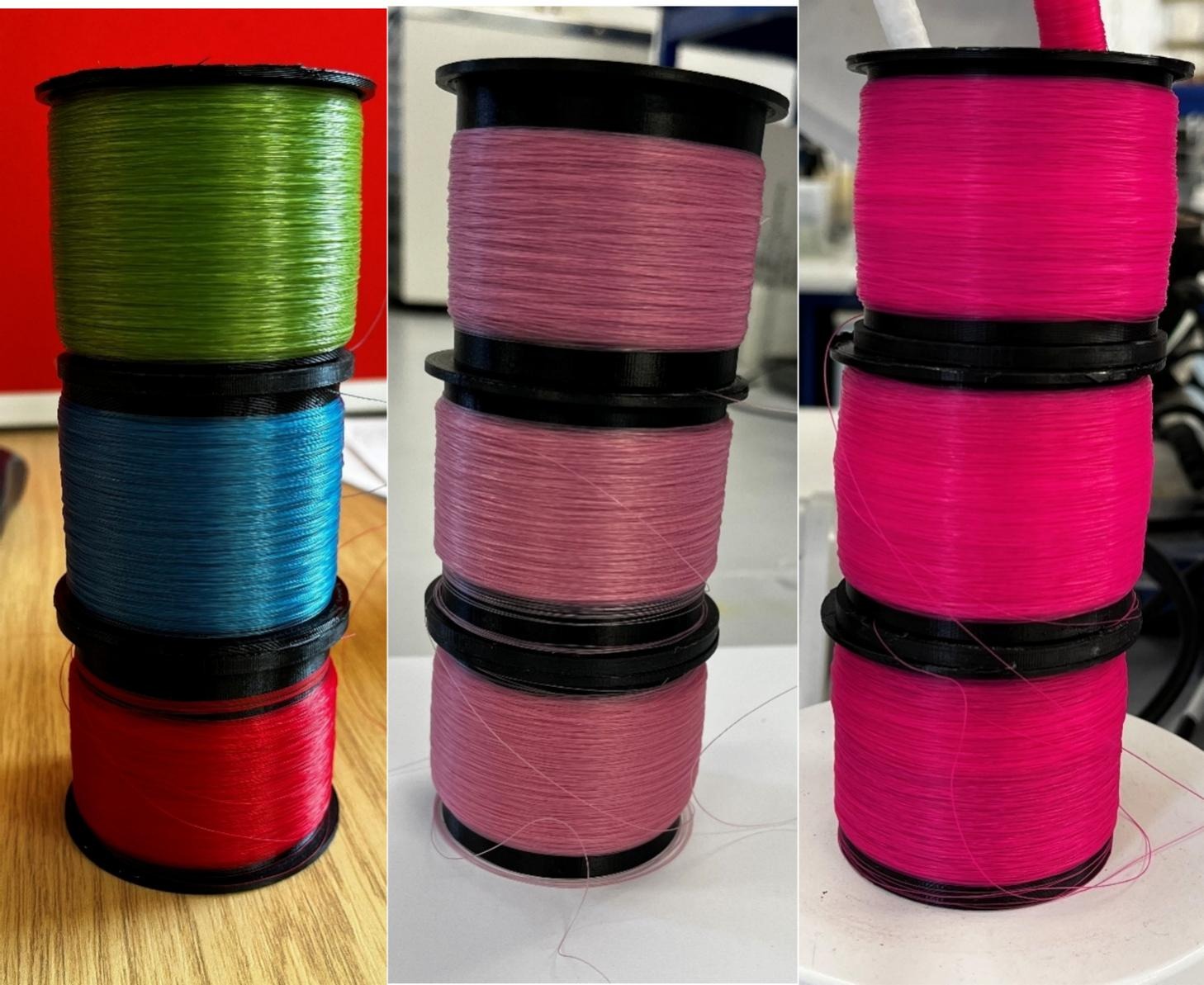

Joseph Houghton and Richard Blackburn work at the Leeds Institute of Textiles and Colour, University of Leeds. They built this open wet spinning line to make lab-scale textile fibre research accessible without the six-figure cost of commercial systems. The paper states they ran it to produce multiple colours of finished fibre and released every design file to replicate it.
DISCLAIMER
- Comparee is not the author of the projects featured here. All rights to each project belong to its creator — every page links to the original source, and we never host creators’ files.
- Information is provided without warranty and may become outdated as projects evolve. Prices are indicative bands only — always check the creator’s parts list for current costs.
- Building and operating any project is at your own responsibility. Protective equipment, safe workshop practice and compliance with local regulations are the builder’s responsibility.
CompareeTEAM2mo agoedited
Practical notes from our verification: the project has no GitHub repository — the design files are on Mendeley Data under DOI 10.17632/776w7sj2f2.1, licensed CC BY 4.0, so commercial use is allowed. The HardwareX paper is the documentation, and it is thorough: Section 5 covers building each module, with wiring tables, and Section 6 gives the operating procedure, including a full worked example spinning casein fibre. The paper puts the hardware at roughly 500 to 750 pounds depending on design choices, but that is without the pump, and it notes syringe pumps start at around 1,000 pounds (or you can build one from other HardwareX designs). You do not need everything at once: a pump, coagulation bath and roller are enough to make first lengths of fibre. The biggest practical hurdle is the solvent: if you use hazardous or volatile solvents you need a fume hood, and the rig is designed to fit inside one — this is a lab or serious workshop build, not a garage project. Correction (4 October 2026): we re-checked this page line by line against the project's own repository, documentation and videos, and fixed errors in earlier versions.
