PRINT OBJECTS THINNER THAN A HAIR USING TURMERIC AND A FIBRE

Print objects thinner than a human hair using a fibre tip, UV resin, and turmeric from the spice rack.

by Diffraction Limited (0x23)

ScienceOpen-hardware

Built with3D printing

difficulty
●●●●●
time
multiple weekends
license
MIT
repo
repo ACTIVE1,858 stars
1
Jump to section

COMPAREE VERDICT

This is a genuine micro-fabrication method assembled from two open-hardware projects and a kitchen spice. A 405 nanometre laser diode sends light down a single-mode optical fibre dipped in UV resin, and curcumin from turmeric absorbs the light so the resin only cures right at the tip. Move the tip with a precision stage and you draw the object layer by layer; the author reports layers of about 2 micrometres and details under 10 micrometres. The demo prints are a 3D Benchy about 150 micrometres long and a Stanford bunny photographed beside a human hair. The hardware is the Open Micro-Manipulator and the Fiber Coupled Laser Module, both MIT licensed with published sources, and the author puts the components at under 300 dollars. The printing method itself lives in the video rather than a finished repository, so you follow the process from there after building the two machines. This is for people who want a micro-fabrication tool and are comfortable with precision mechanics, fibre optics, and iterating on a research process. NSF award records show universities spending about 395,000 to 628,000 dollars to acquire a commercial nanoscale 3D printer. The one thing most likely to go wrong is treating this as a turnkey printer: you will spend time tuning absorber concentration, managing shear forces at the tip, and working around residual light scattering.

GOOD TO KNOW

  • —The Open Micro-Manipulator repository ships FreeCAD sources, STLs, KiCad boards, firmware, a bill of materials and build and setup guides; the Fiber Coupled Laser Module repository provides FreeCAD design files and a build video.
  • —Both repositories are MIT licensed; the Open Micro-Manipulator licence explicitly extends to hardware design, documentation and concept, while the laser module uses the standard MIT wording.
  • —The printing method is documented in the video; its dedicated repository exists but is still under construction.
  • —You build the two machines and follow the process from the video.
  • —No commercial restrictions.
  • —The author lists honest limitations: the curcumin concentration ceiling means some light scattering is unavoidable, and shear forces at the fibre tip can deform unsupported parts of a print.

Parts to buy

8 items

From our check of the build. Exact quantities and part numbers are in the creator’s BOM.

  • Single-mode optical fibreFind
  • 405 nm laser diodeFind
  • UV resinFind
  • Turmeric (curcumin)Find
  • Stepper motorsFind
  • EncodersFind
  • Precision stagesFind
  • Electronic components per the two BOMsFind

Can I build this?

PrintOpen Micro-Manipulator structural parts
Buysingle-mode optical fibre, 405 nm laser diode, UV resin, turmeric (curcumin), stepper motors, encoders, precision stages, electronic components per the two BOMs
Tools3D printer, soldering station, tools for precision assembly, eye protection for 405 nm laser
Skillsprecision mechanics, fibre optics handling, electronics assembly, firmware flashing, comfort with research iteration rather than plug-and-play
Timemultiple weekends to build both machines, then iteration time to tune the printing process
Cost$$ — dominated by precision stage components and optical fibre; turmeric costs nothing
Safety405 nm laser light requires laser safety glasses, and the laser module author warns not to replicate without proper training. UV resin requires gloves and ventilation, and the isopropyl alcohol wash and the alcohol used to extract curcumin are flammable.

Build at your own risk. Projects involve tools, electronics and sometimes mains voltage — follow the creator’s safety notes.

Videos

Micro-Fabrication with a Fiber Tip

Published 5 September 2026. Documents the printing method itself; the hardware ships as separate repositories.

More builds like this

All projects

Gallery

Start here

Navigation into the creator’s own docs — we don’t rewrite the guide, we route you to the source.

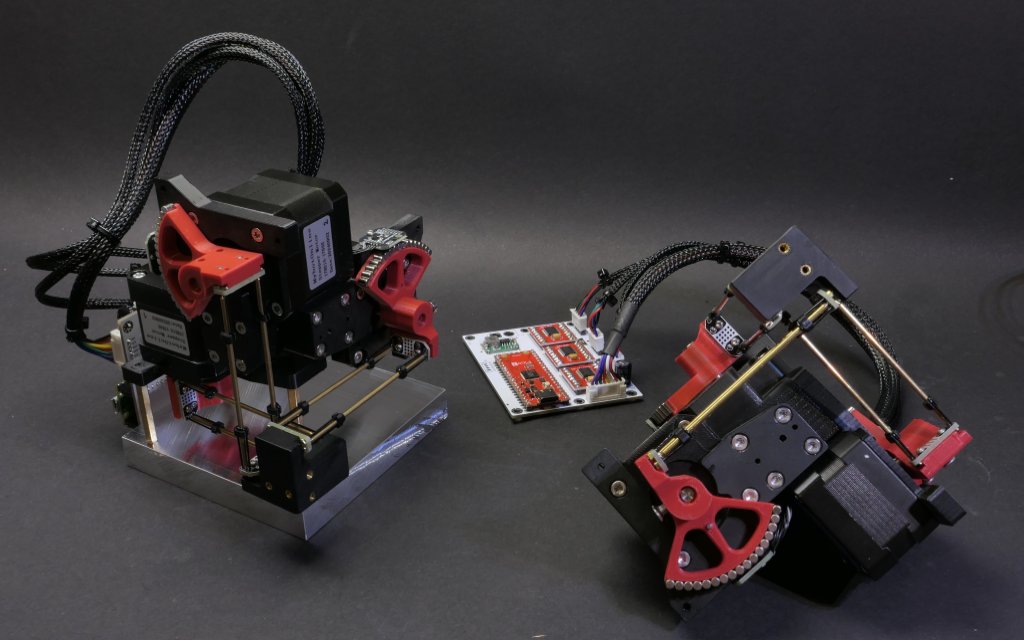

  1. 1.Build the Open Micro-Manipulator (FreeCAD sources, STLs, KiCad boards, firmware, BOM and build guide)
  2. 2.Build the Fiber Coupled Laser Module (Second hardware component, also MIT licensed)
  3. 3.Watch the printing method video (The printing process is documented here, not in a repository)
  4. 4.Prepare curcumin solution(Mix curcumin from turmeric into UV resin at one part solution to four parts resin)

Resources

Documentation, files and community threads for this build — we link straight to the original sources and never rehost the creator’s files.

KNOWN ISSUES

  • For now the printing method is documented in the video; the author has opened a dedicated FiberImmersion-Micro3DPrinting repository, but it is still under construction.
  • This is a research platform, not a turnkey printer. Expect to iterate on absorber concentration, light bleed, and shear forces.
  • Single-mode optical fibre handling requires care. A damaged fibre tip ruins the print quality.
  • 405 nm laser diodes need eye protection. Do not operate without proper safety glasses.
  • Shear forces at the fibre tip can bend overhangs and thin vertical parts; keep the fibre protrusion short and note that the author ground his fibre tip into a cone to reduce these forces.
  • Residual light bleeding is a documented limitation. Tuning absorber concentration helps but does not eliminate it.

Why turmeric specifically?

Curcumin absorbs strongly at 405 nanometres, dissolves in UV resin, costs almost nothing, and is reasonably nontoxic. Without it the laser light bleeds through the resin and the print smears.

How does this compare to commercial micro-printers?

NSF grant records show universities paying 395,000 to 628,000 dollars for a single commercial two-photon micro printer, including accessories. This approach costs a fraction of that but requires build time and research iteration.

What resolution can I expect?

The author reports a layer height of about 2 micrometres and geometric details smaller than 10 micrometres. The demo prints include a 3D Benchy about 150 micrometres long and a Stanford bunny shown beside a human hair for scale.

Is the printing process documented anywhere besides the video?

No. The hardware ships as two separate repositories with complete sources, but the printing method itself is in the video. You build the machines and follow the process from there.

What is the biggest practical limitation?

The author names two: the curcumin concentration cannot be raised indefinitely because curcumin scavenges the radicals the resin needs, so some light scattering remains, and shear forces at the fibre tip can deform poorly supported parts of a print. Grinding the fibre tip into a cone reduces those forces.

Community builds

No community builds yet — be the first, we feature the best ones.

Discussion1

FROM THE COMPAREE TEAM

The NSF grant database shows universities paying up to 628,250 dollars for a single commercial micro-printer — and this approach uses turmeric from the spice rack. What would you print first at that scale?

CompareeTEAM2mo agoedited

Practical notes from our verification: the printing method itself is shown in the video; the author has created a dedicated repository for it, but at the time of writing it only says it is under construction, so you follow the process from the video after building the two machines. Both hardware repos are MIT licensed; the MicroManipulatorStepper licence text explicitly extends to hardware design, documentation and concepts, while the FiberCoupledLaserModule repo uses the standard MIT wording. MicroManipulatorStepper is the well-documented half, with CAD, STL, KiCad, firmware, a BOM and build guides; the laser module comes as FreeCAD files plus a README and video. The NSF award figures are for acquisition including accessories, not a bare catalogue price, but they give honest scale on what this capability normally costs. The author is candid about limitations: the curcumin concentration ceiling leaves some light scattering, and shear forces at the fibre tip can deform a print; he also notes the fibre tip was ground to a cone to reduce those forces. Correction (4 October 2026): we re-checked this page line by line against the project's own repository, documentation and videos, and fixed errors in earlier versions.

Diffraction Limited (0x23)

Diffraction Limited publishes as 0x23 on GitHub and released this method in September 2026. The work demonstrates that research-grade micro-fabrication is accessible outside institutional budgets, using curcumin from turmeric as the key enabling ingredient.
