LEVITATE OBJECTS IN MID-AIR WITH SOUND

A field of 72 ultrasonic transducers builds a standing wave that floats tiny objects in thin air — steer them with a joystick.

by vindar

FULL CAD BOM FIRMWARE DOCS

PhysicsElectronics

difficulty
●●●●○
time
a weekend or two
license
GPL-3.0
repo
repo STABLE5 stars

WHAT YOU’LL NEED

  • 3D printer + filament — printable parts — files are in the repo
  • Electronic parts — full list with part numbers in the repo BOM
  • Dev board / microcontroller — runs the project firmware
  • Soldering kit + basic tools — one-time buy, serves every future build

Partner

Reach your Pi from anywhere — Remote desktop to the machine running this build — no port forwarding, works right from the browser.Try Getscreen.me
1

COMPAREE VERDICT

Acoustic levitation feels like magic the first time you see it — a small object hanging in mid-air, held by nothing but sound. Teensylev floats tiny objects in a standing wave created by a field of 72 ultrasonic transducers, and it adds a lovely touch: a small TFT screen and joystick to actually move the levitated object around. It's a refined take on Asier Marzo's famous TinyLev, and it's genuinely buildable — Teensy firmware, printable parts, a schematic and a BOM are all provided. It's inexpensive and approachable for an intermediate maker. Just mind the two mild hazards: prolonged ultrasound exposure and the step-up supply driving the transducer array. A brilliant, affordable science-demo build.

NOT IN THE REPO

  • —A buildable DIY project: Teensy firmware, printable STL parts, a schematic and a BOM
  • —It's a refined variant of Asier Marzo's well-known TinyLev acoustic levitator
  • —Steered with a small TFT display and a joystick
  • —Uses ultrasound and a step-up supply for the transducer array

Can I build this?

Printthe transducer array housing (STL provided)
Buy72 ultrasonic transducers, a Teensy 3.2, a step-up module, a motor driver, a mini TFT + joystick
Tools3D printer, soldering iron, patience wiring the array
Skillsintermediate electronics; the firmware and schematic are provided
Timea weekend or two
Costband $ — inexpensive parts; current prices: README BOM
Safetyultrasound (limit prolonged exposure) and a step-up supply for the transducer array

Build at your own risk. Projects involve tools, electronics and sometimes mains voltage — follow the creator’s safety notes.

Ultra-thin power bank that fits anywherePartner · Kickstarter
Ultra-thin power bank that fits anywhere

CORE POWER BANK S: 0.2" thin, 2.8 oz, 5000 mAh with 22.5W fast charging. Semi-solid battery, carbon fiber, IPX7 waterproof.

Learn more

Gallery

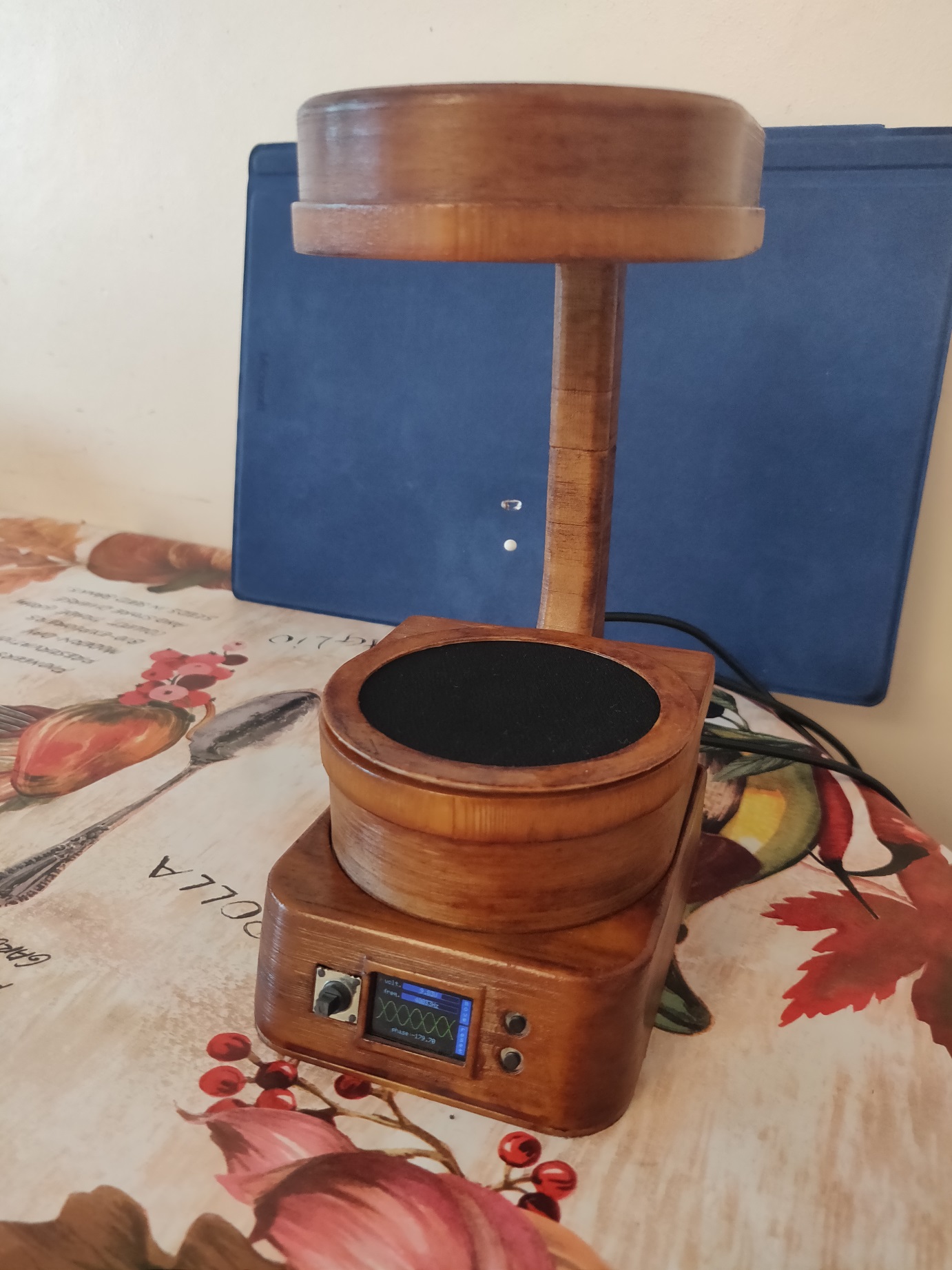

The assembled levitatorvindar
Device detailvindar

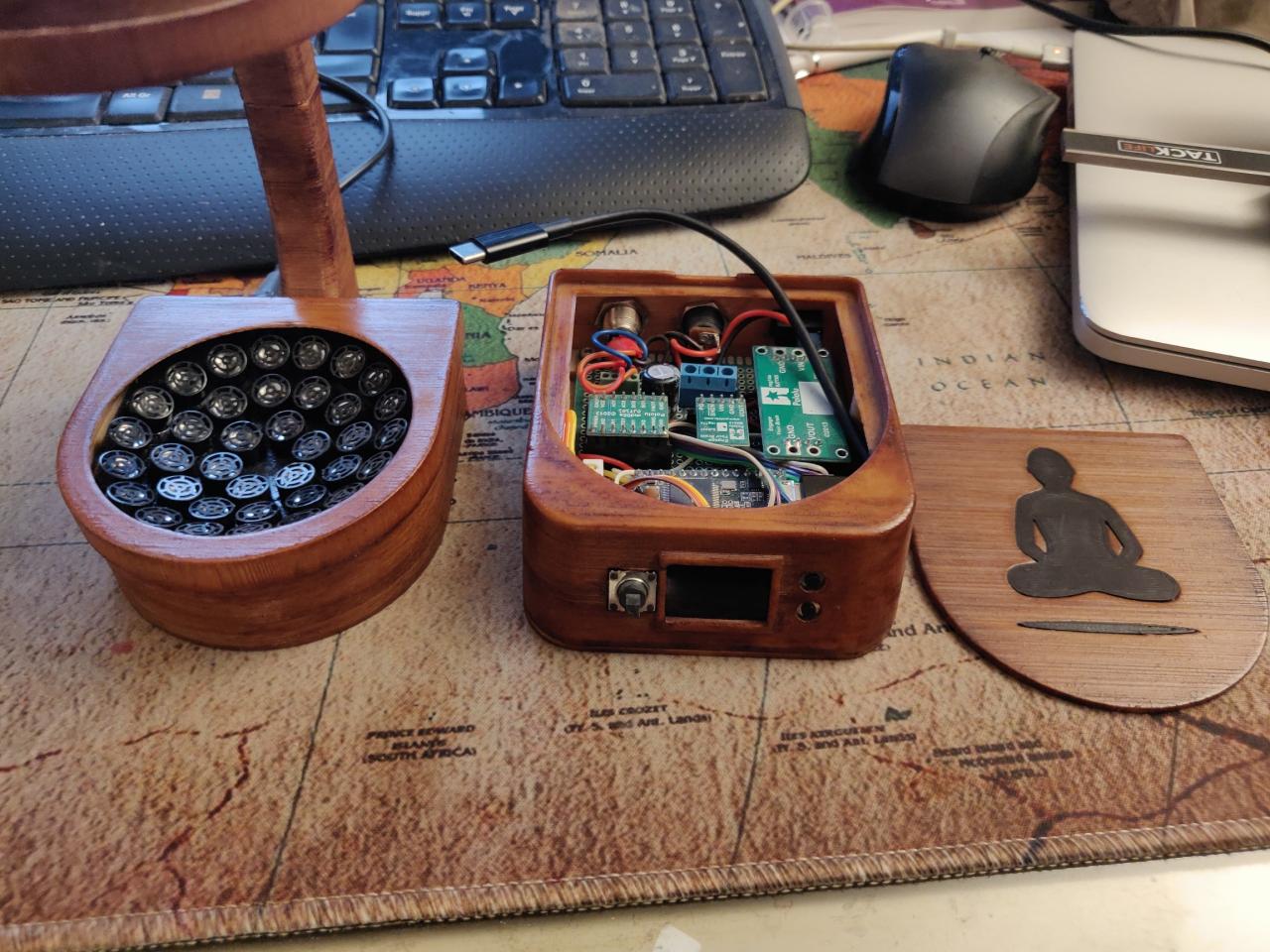

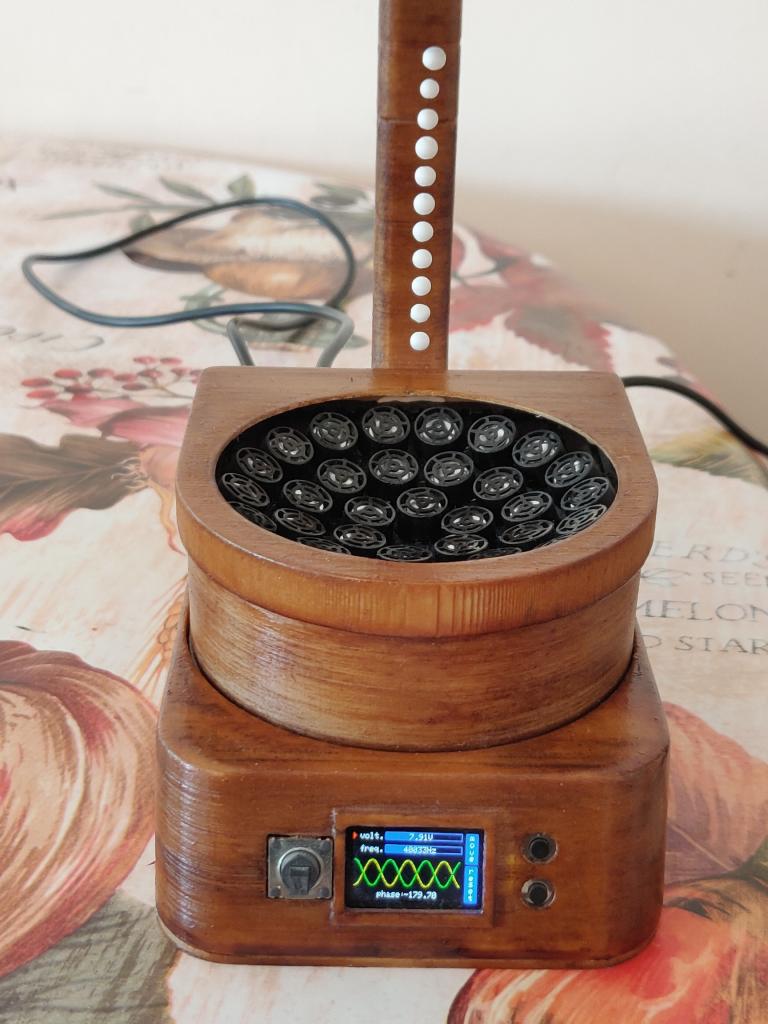

The transducer arrayvindar

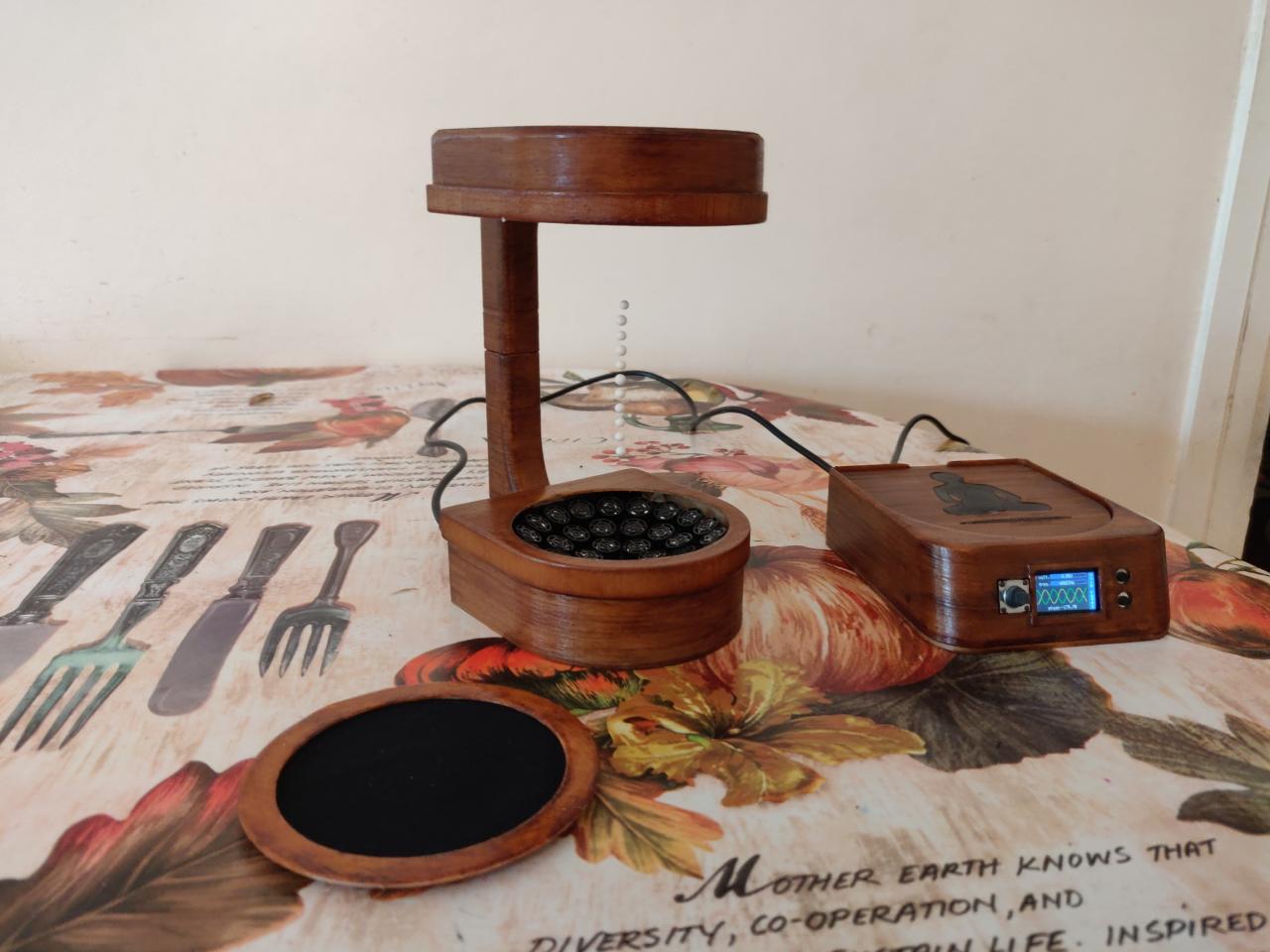

Controls and wiringvindar
